Heater Control Cable - Air Distribution
Heater Control Cable - Air DistributionRemove
1. Disconnect battery.

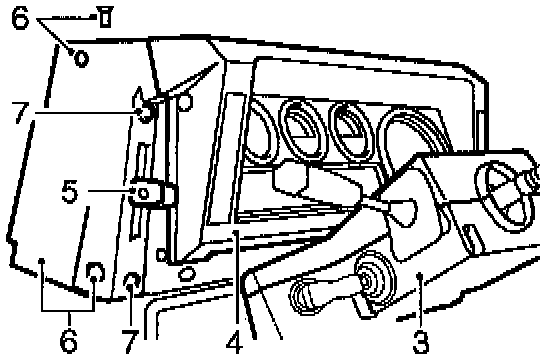

2. Remove steering wheel.
3. Remove steering column nacelle.
4. Remove instrument panel.
5. Remove retaining screws and pull off air distribution and temperature control lever knobs.
6. Remove 3 screws and detach side cover, complete with control lever assembly.
7. Remove 2 screws securing control lever assembly to side cover and remove cover. Retain plastic screw spacers fitted between cover and control lever assembly.

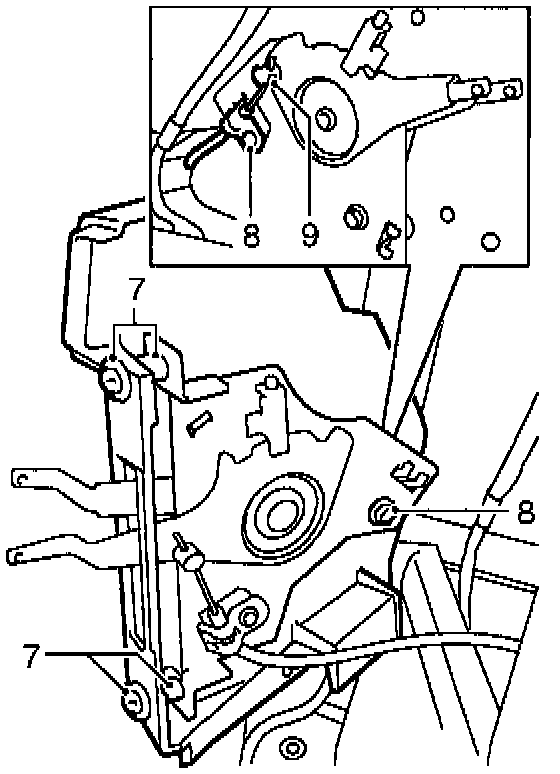

8. Remove bolt and release outer cable retaining clip.
9. Slacken grub screw and release inner cable from clevis.
10. Remove heater duct assembly.

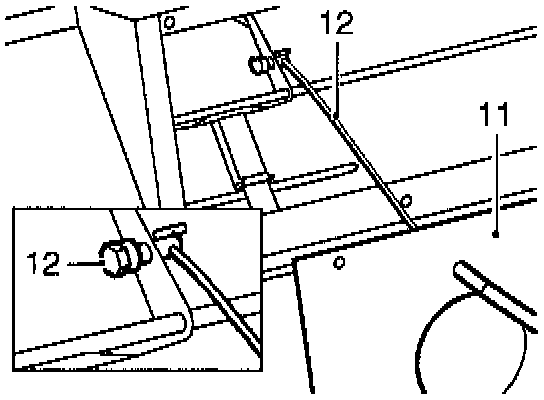

11. Remove 19 screws and lift off heater duct cover.
12. Slacken vent flap trunnion fixing, release air distribution control cable and remove from heater duct.
13. Check condition of foam sealant on heater duct cover and renew if necessary.
Refit
14. Fit control cable through heater duct cover and secure to vent flap trunnion. Bend over cable end to fully secure.
15. Fit heater duct cover.
16. Fit heater duct assembly to fascia bulkhead.
17. Route control cable along fascia bulkhead to control lever assembly.
18. With control lever in closed position, secure cable to clevis.
19. Fit outer cable retaining clip to lever assembly.
20. Fit lever assembly to side cover. Ensure screw spacers are fitted between cover and lever assembly.
21. Fit side cover to fascia cowl.
