Temperature Gauge: Service and Repair

Fuel Gauge, Temperature Gauge

Remove
1. Remove instrument panel.

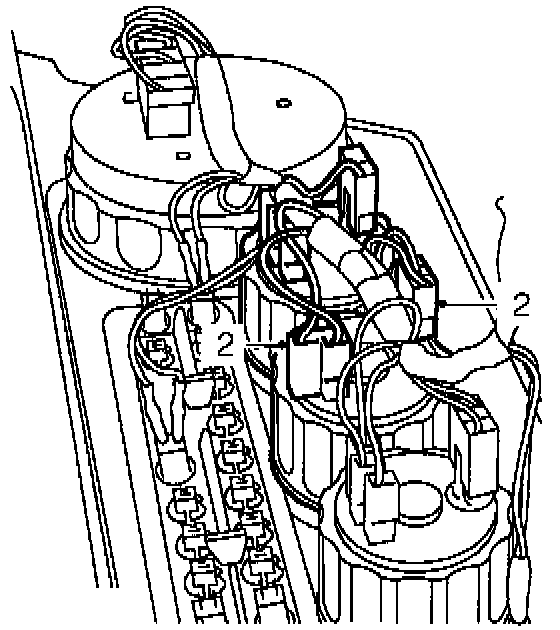

2. Release illumination bulb holder and multiplug from gauge.
3. Unscrew retaining ring and remove gauge.
4. Remove 'O' ring from gauge.

Refit
5. Fit 'O' ring to gauge and position gauge into instrument panel.
6. Fit retaining ring, align gauge and tighten.
7. Fit instrument panel.
