Home
>>
Land Rover
>>
1997
>>
Defender 90 (LD) V8-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Transfer Case
>>
Rear Output Housing and Transmission Brake Components
Rear Output Housing and Transmission Brake Components

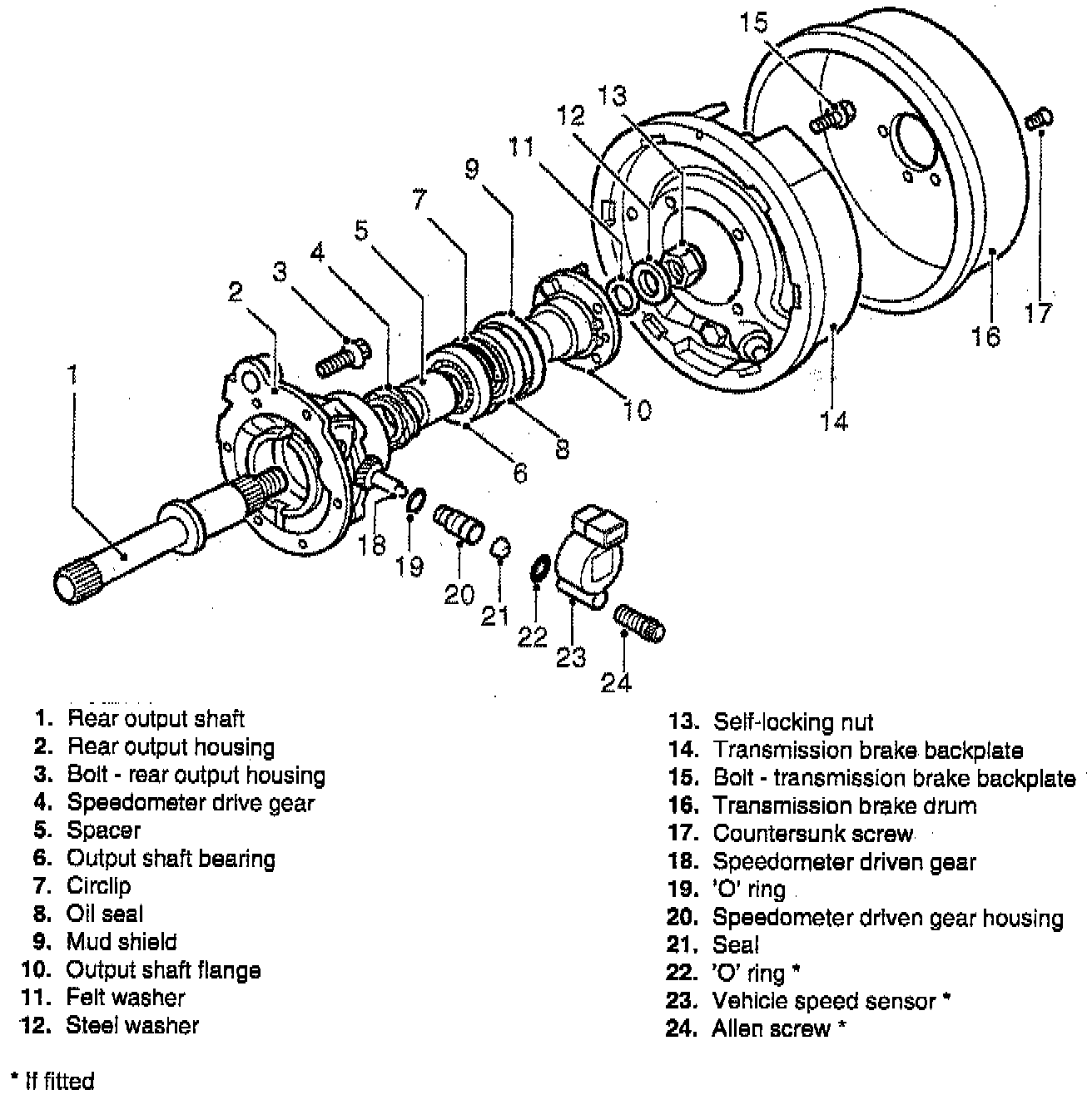

LT230Q Transfer Case Rear Output Housing:
