Land Rover
>>
1997
>>
Defender 90 (LD) V8-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Brake Lamp

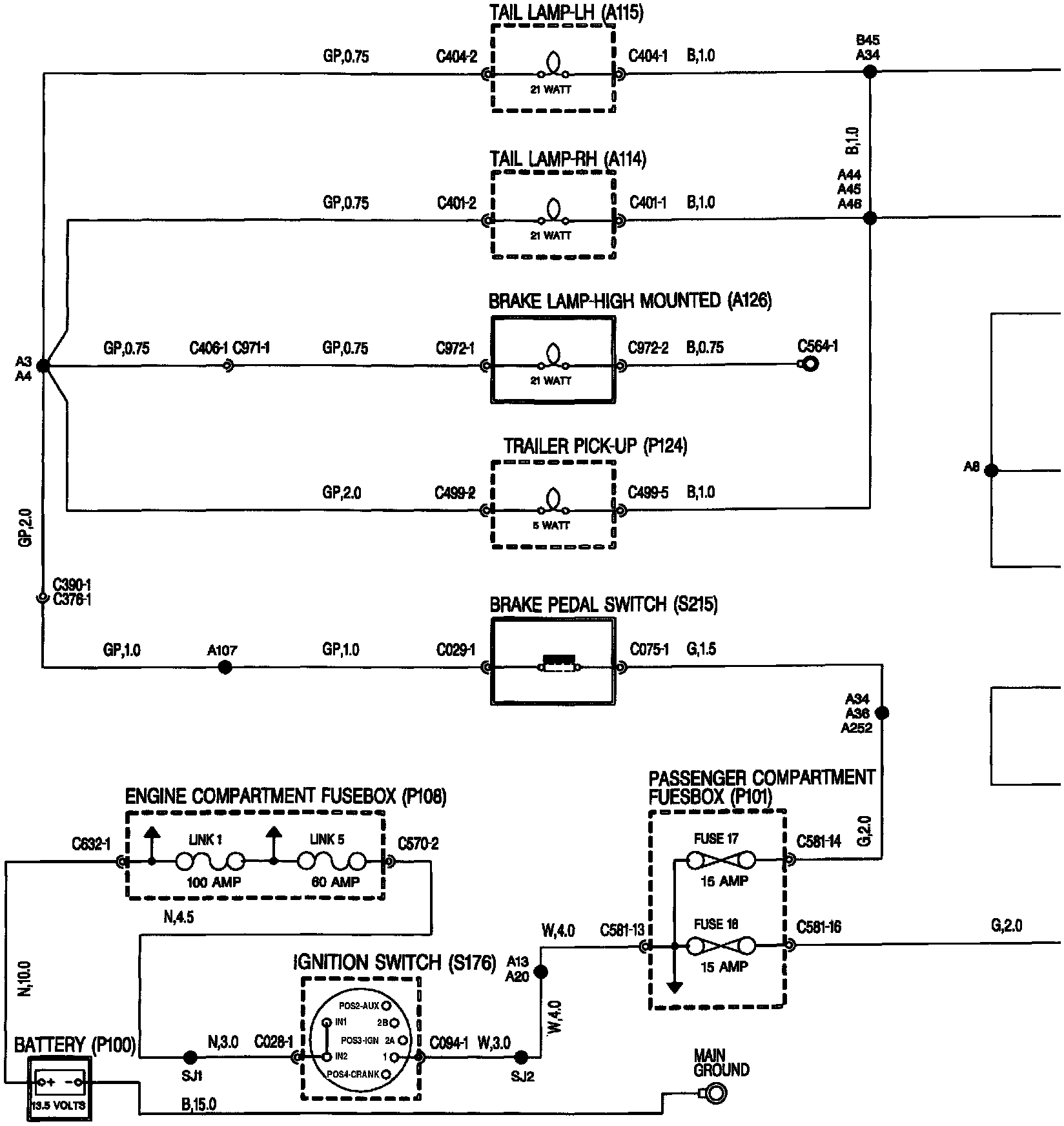

Brake Lamp
� �.Exterior Lamps: Brake And Reverse Lamps:
