Grille: Service and Repair

Radiator Grille

Remove

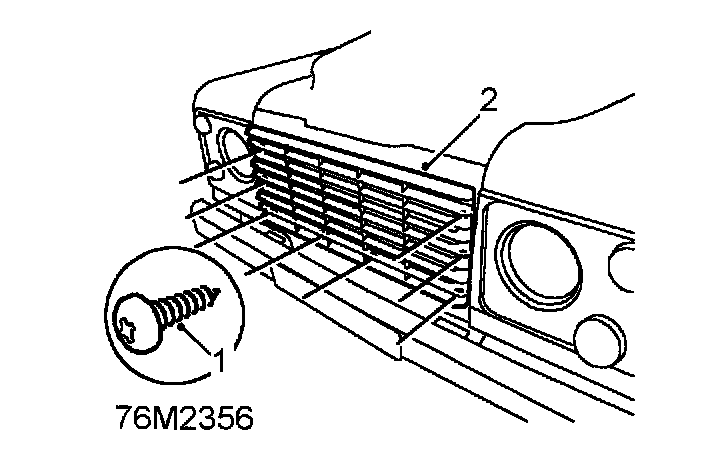

1. Remove 8 screws securing grille to front panel.
2. Remove radiator grille


Refit
3. Position radiator grille to front panel.
4. Secure grille with screws.
