P0460

DTC P0460

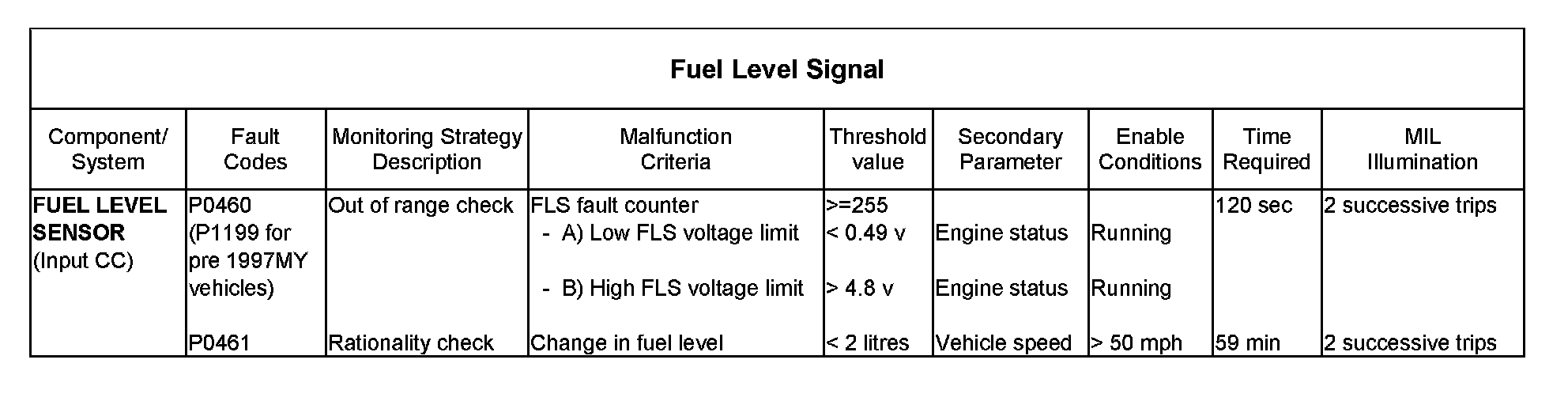

Fuel level sensor circuit fault (Driving Cycle A)

Possible causes by suggested order of priority:
- Connectors C636, C112.
- Circuit integrity C636/7 (GB) - C112/16 (GB).
- Fuel level sensor.
- ECM.

Connectors C636, C112.
- Check for connector not correctly latched, backed out pins, damaged pins, corroded pins

Circuit integrity C636/7 (GB) - C112/16 (GB).
- Check for open circuit, short circuit to ground, supply or other circuit, damaged or unlatched connector, intermediate connectors or headers

Fuel level sensor.
- No detail available for this fault

ECM.
- No detail available for this fault
