Fuel Filler Cap: Service and Repair

FUEL TANK FILLER CAP - ADVANCED EVAPS

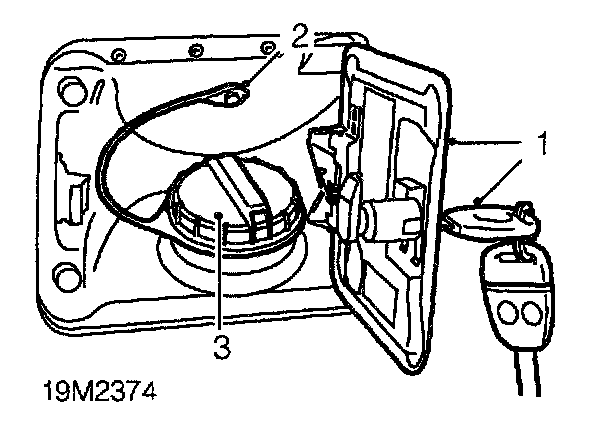

Remove
1. Fit ignition key to fuel filler flap lock and open flap.





2. Remove screw securing cap retaining strap to body.
3. Remove fuel filler cap.

Refit
4. Fit fuel filler cap.
5. Position cap retaining strap to body and secure with screw.
6. Close filler flap, lock with ignition key and remove key.
