Canister Purge Solenoid: Service and Repair

EVAP CANISTER VENT SOLENOID - ADVANCED EVAPS

Remove
1. Disconnect battery earth lead.

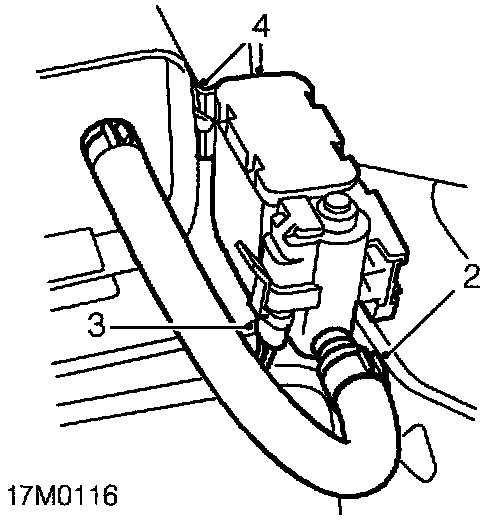

2. Release clip securing hose to vent solenoid and disconnect hose.
3. Disconnect multiplug from vent solenoid.
4. Remove vent solenoid from mounting bracket.

Refit
5. Fit vent solenoid to mounting bracket.
6. Connect multiplug to vent solenoid.
7. Connect hose to vent solenoid and secure with clip.
8. Connect battery earth lead.
