Land Rover
>>
1996
>>
Discovery I (LJ) V8-4.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

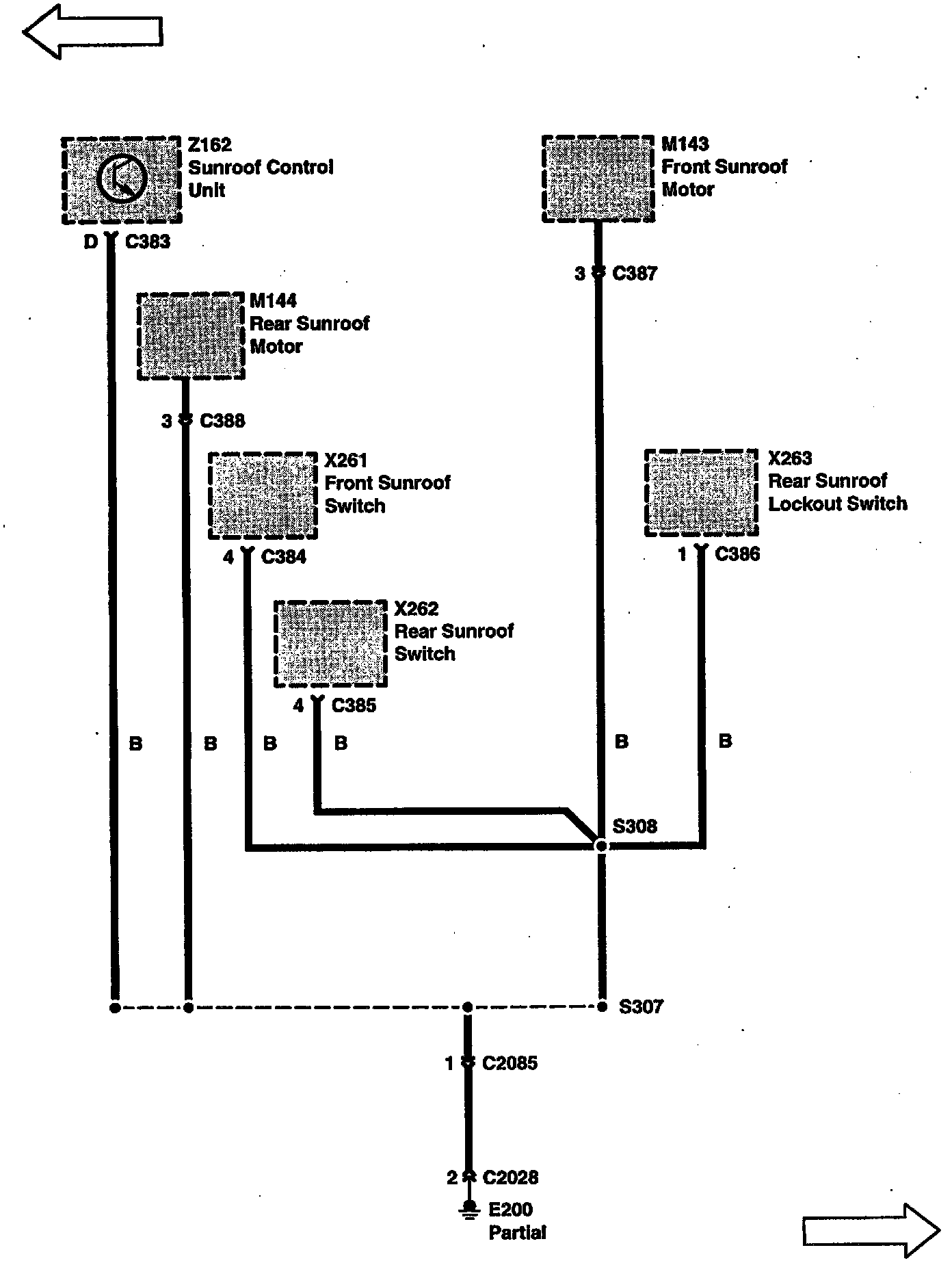

Splice Distribution
>>
S308
S308
Y5-13:
