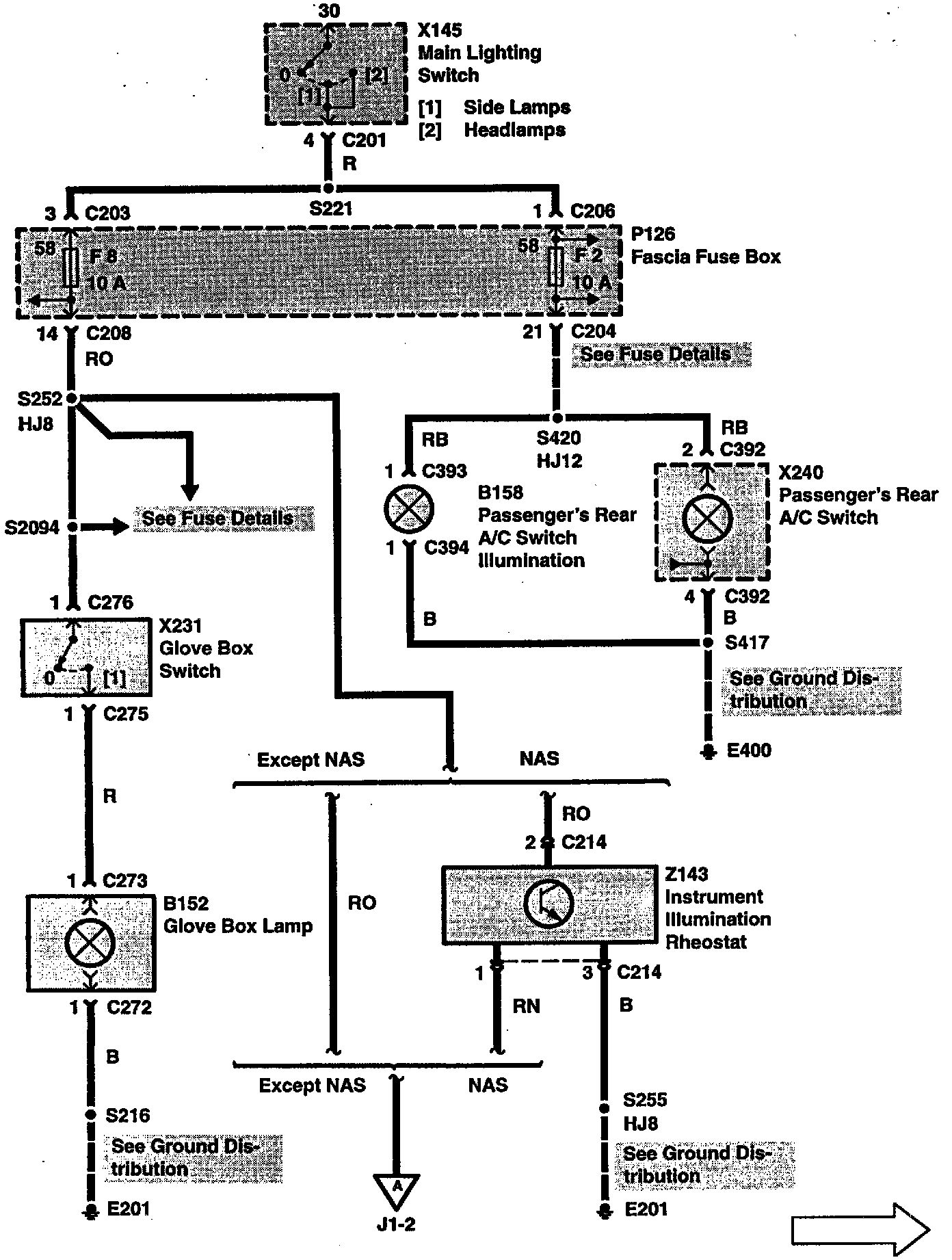

Interior Lamps

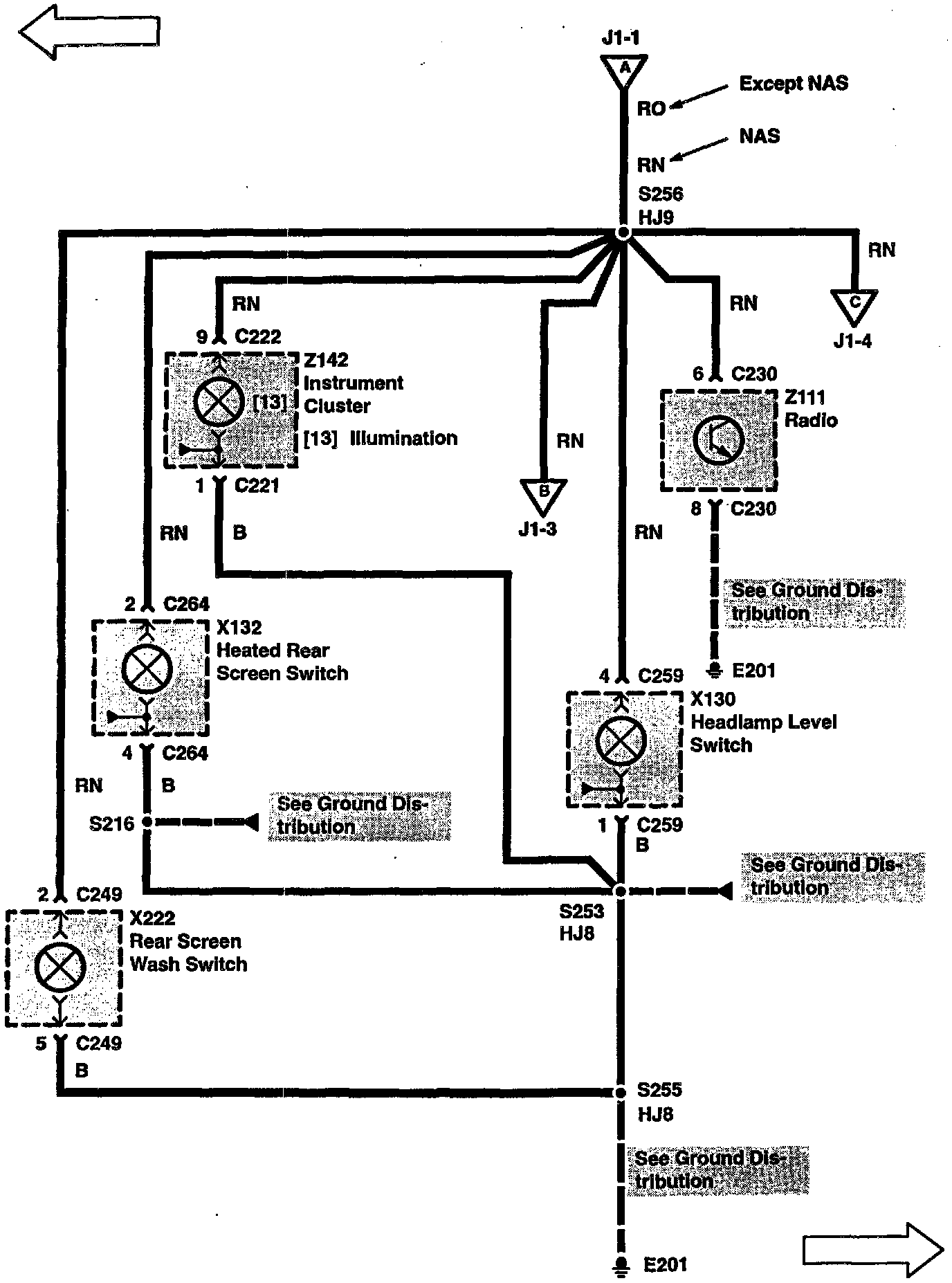

J1-1:

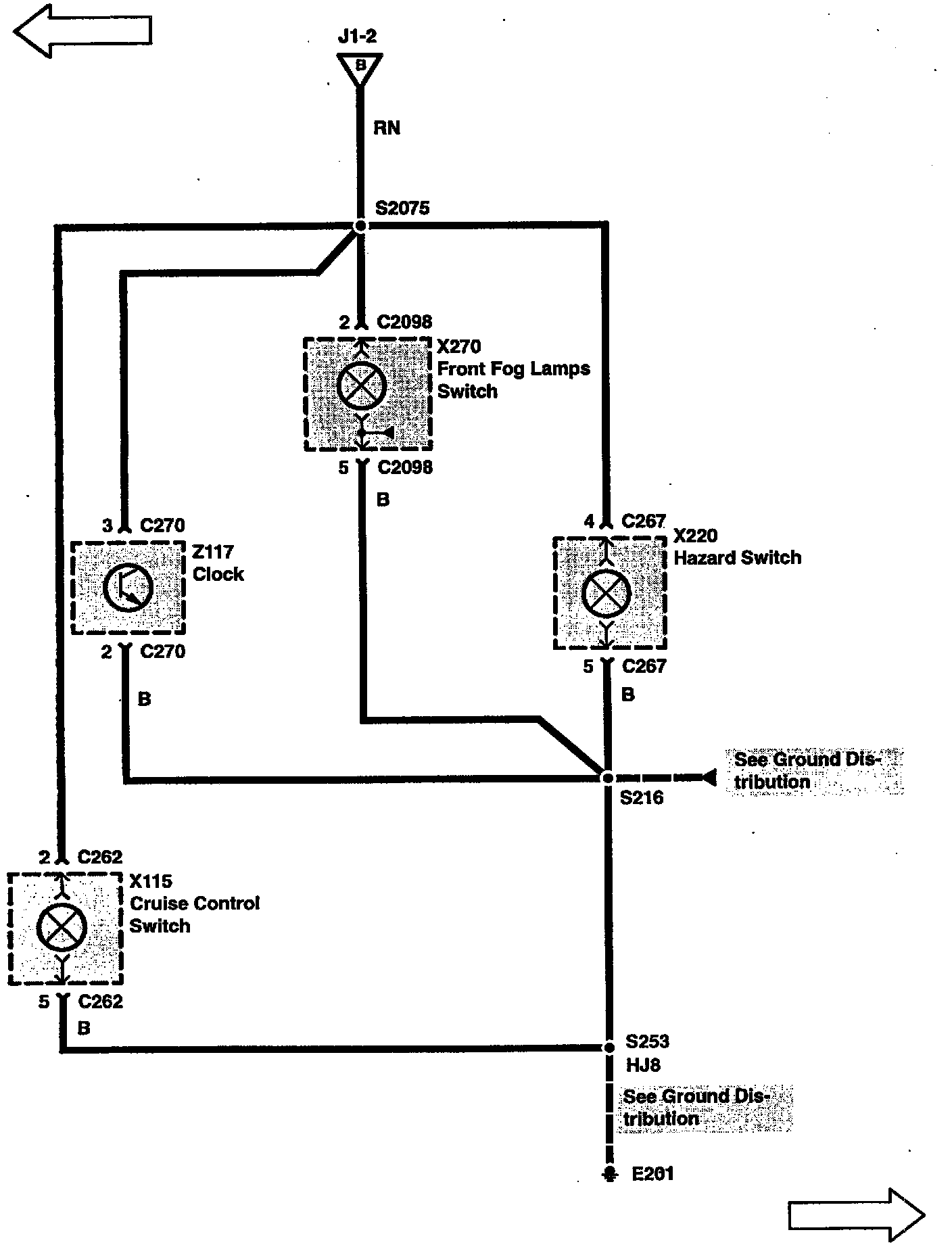

J1-2:

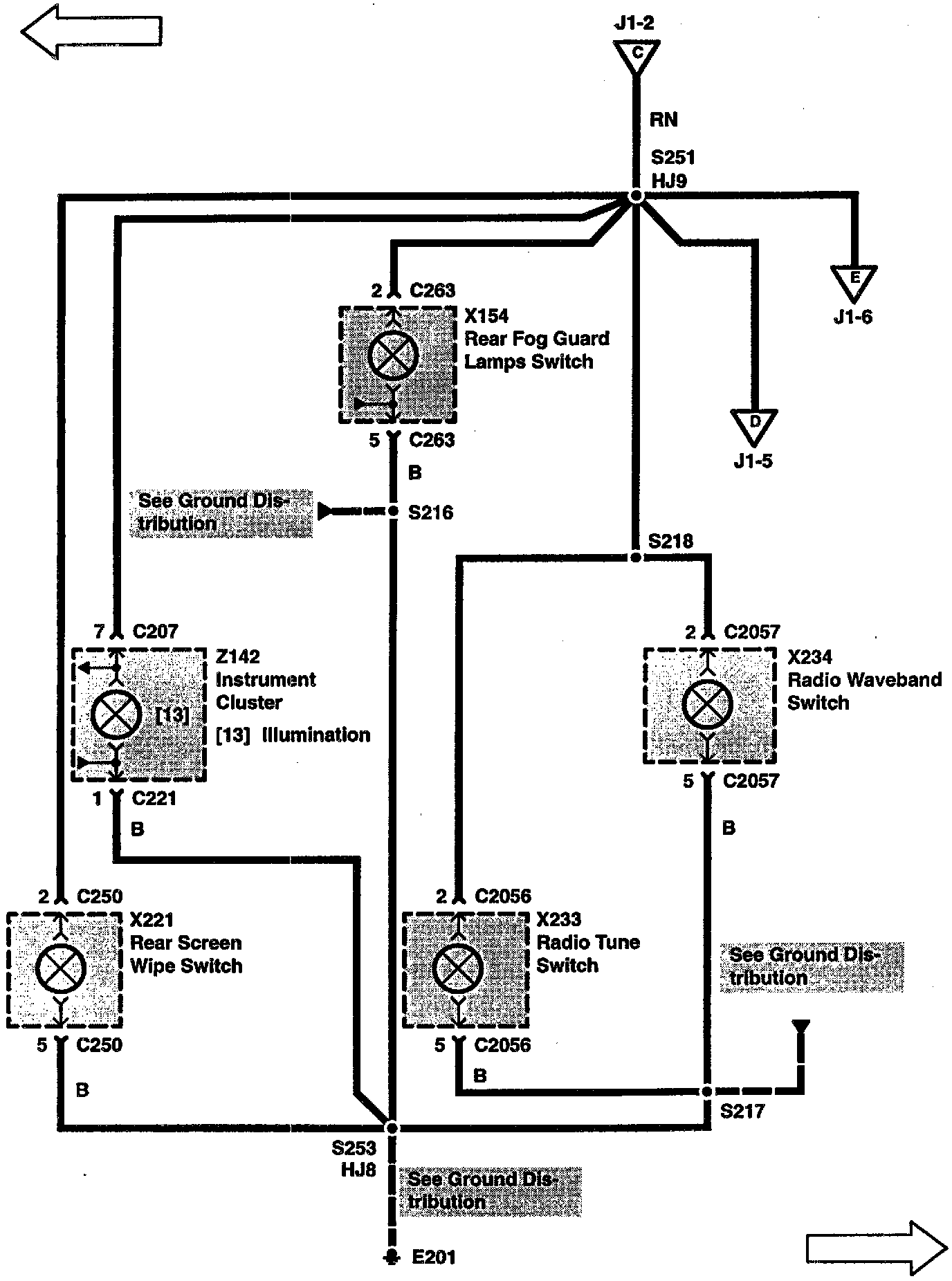

J1-3:

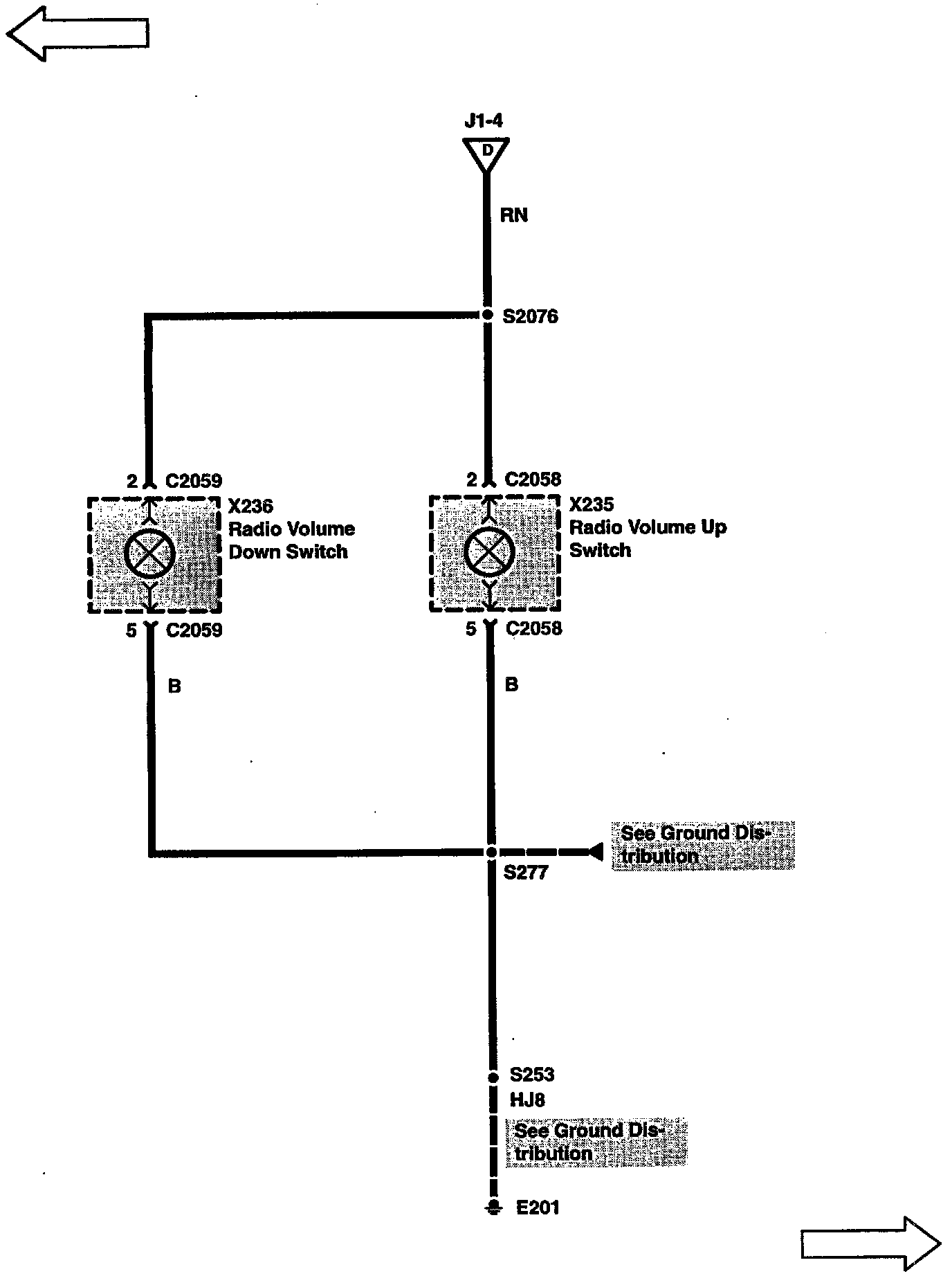

J1-4:

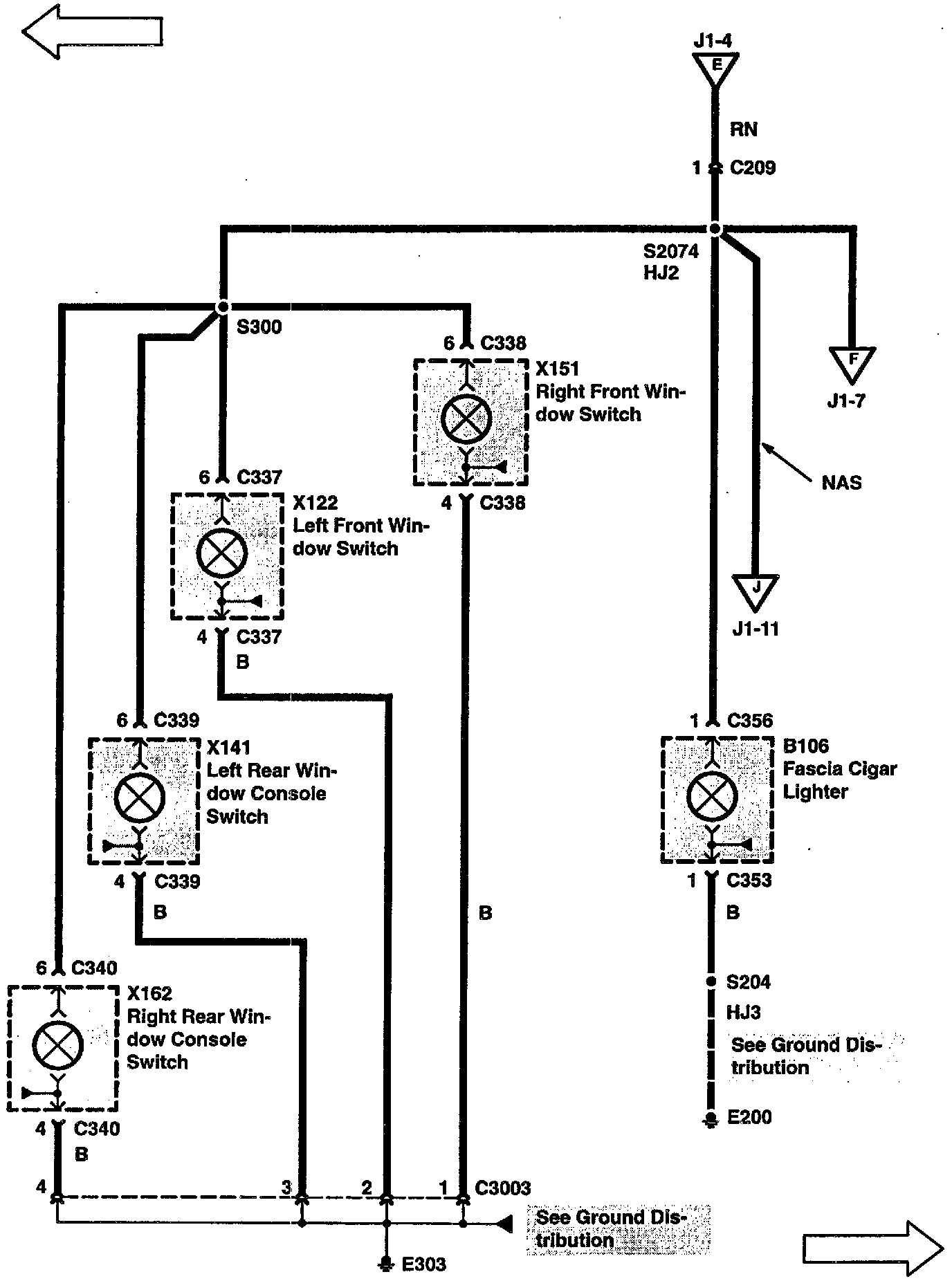

J1-5:

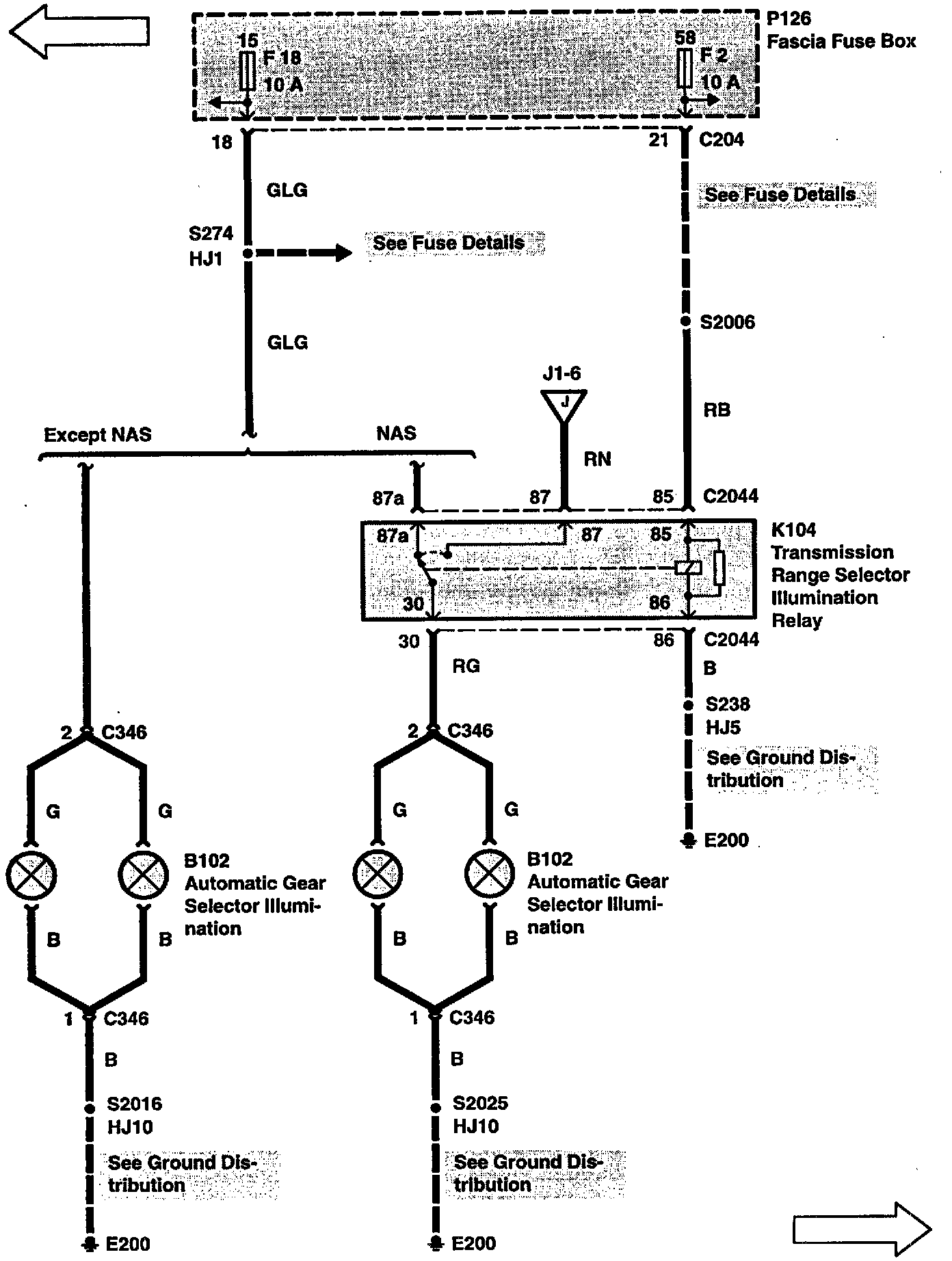

J1-6:





J1-7:





J1-8:

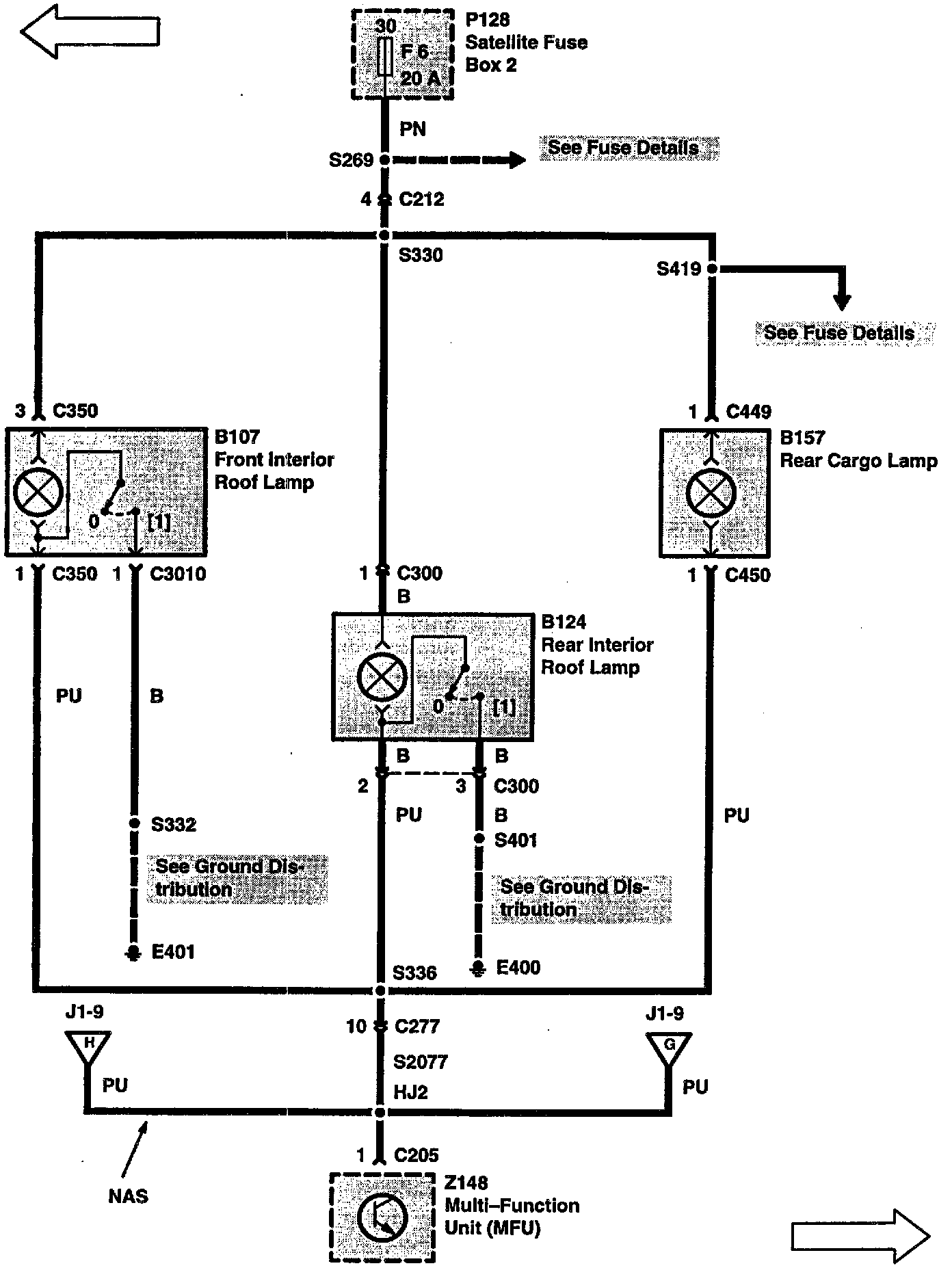

J1-9:





J1-10:





J1-11:





J1-12:
