Windshield Washer Pump: Service and Repair

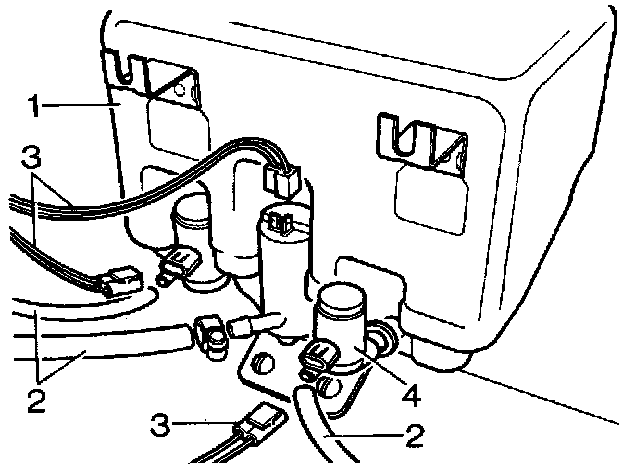

Washer Pump - Windscreen or Tailgate

Service Repair No - 84.10.21

Remove





1. Disconnect washer tubing from pump.
2. Disconnect electrical leads from pump.
3. Pull top of pump away from its location in reservoir and remove pump.
Note position of sealing gasket in reservoir.

Refit
1. Reverse removal procedure.
