Home >> Land Rover >> 1995 >> Range Rover Classic LWB (LH) V8-4.2L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shift Interlock >> Testing and Inspection >> System Tests >> Test F

Test F

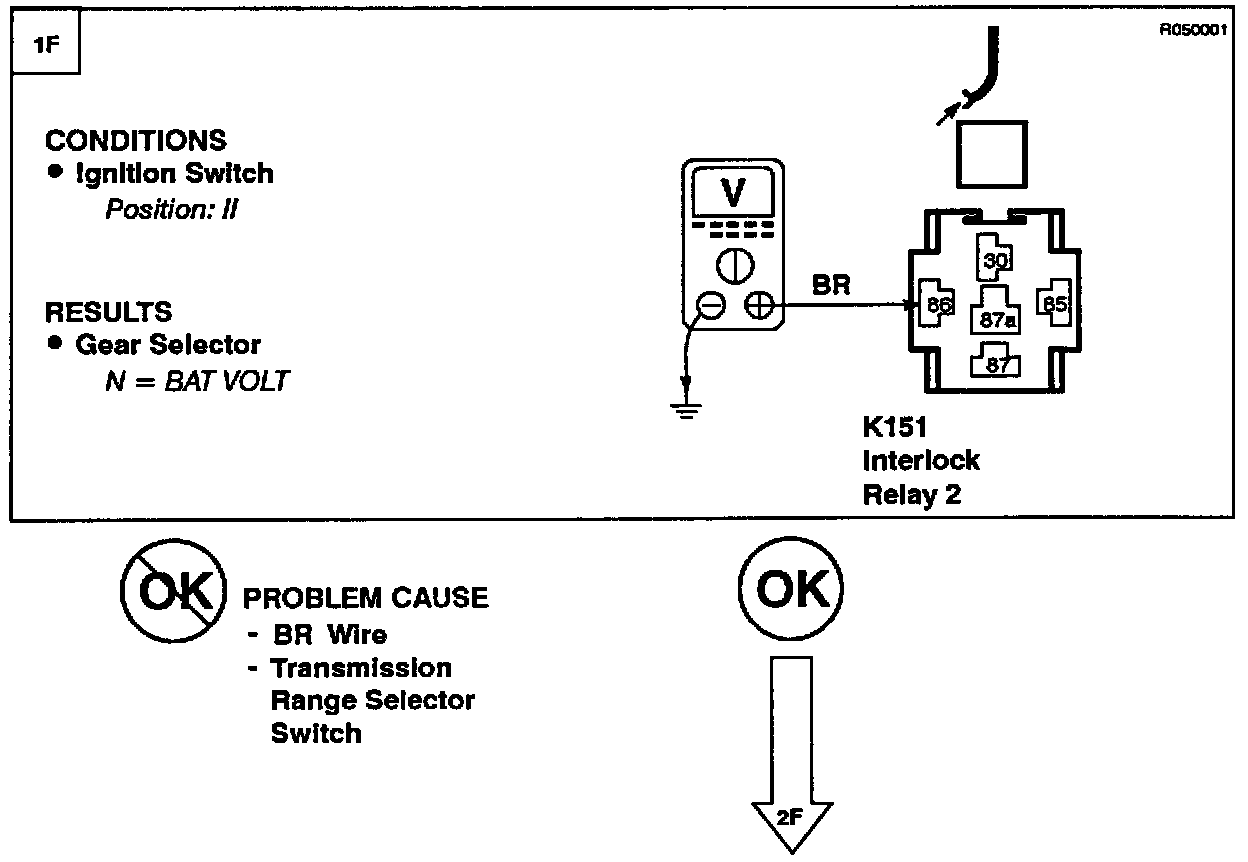

Test Step 1F:




Test Step 2F:




Test Step 3F:

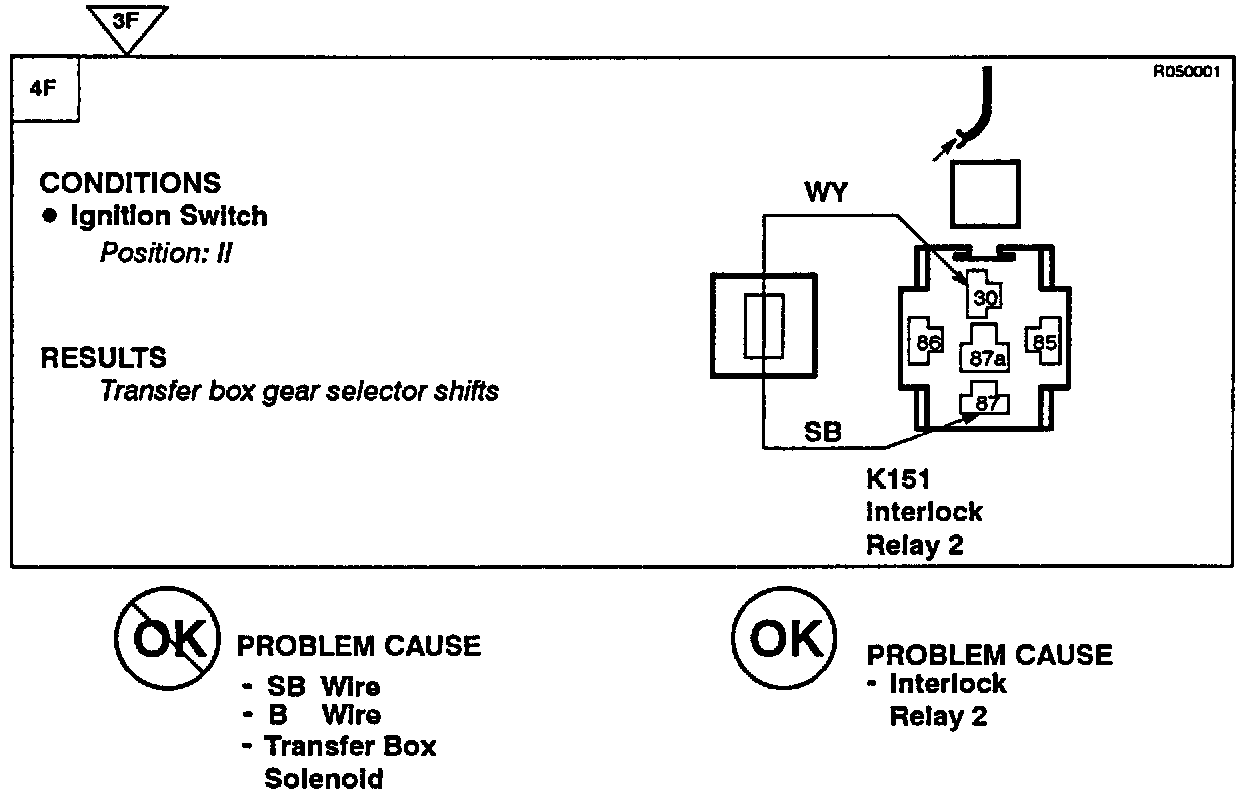

Test Step 4F:
