Range Rover Classic LWB (LH) V8-4.2L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Diagrams
>>
Electrical Diagrams
>>

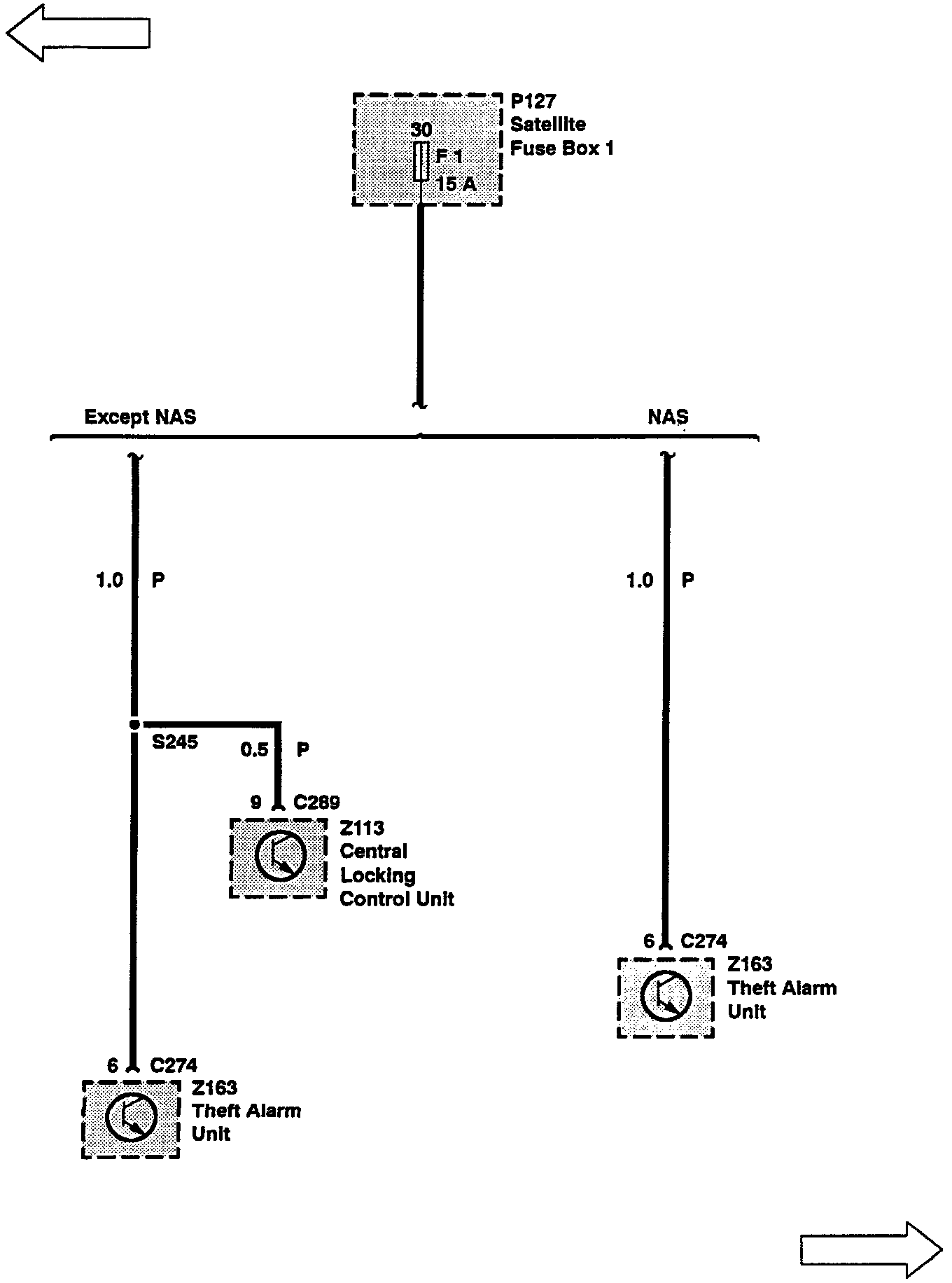

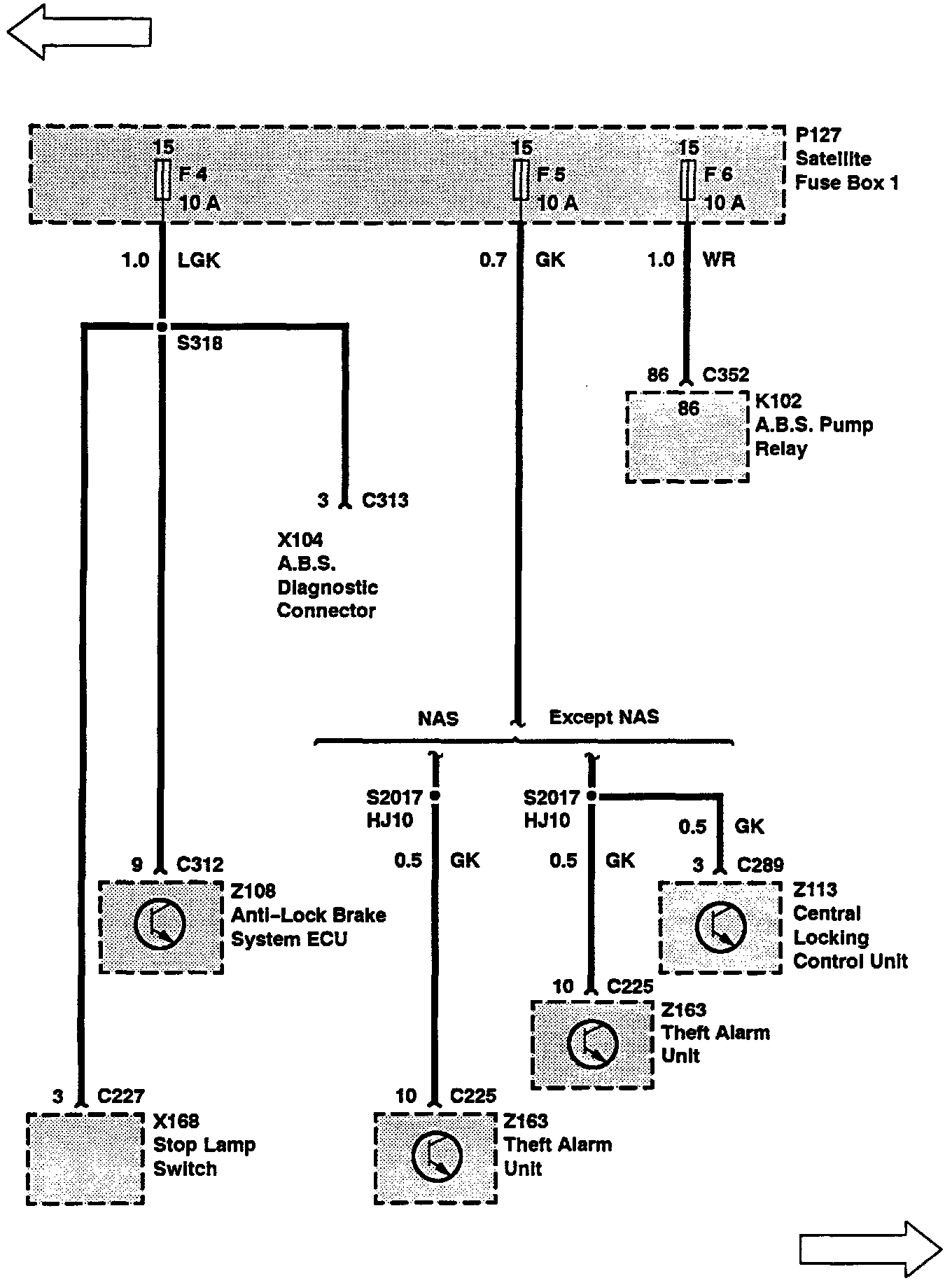

Satellite Fuse Box 1 (P127)
>>
General
General
Y2-13:
Y2-14:
Y2-17:
