Land Rover
>>
1995
>>
Range Rover Classic LWB (LH) V8-4.2L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

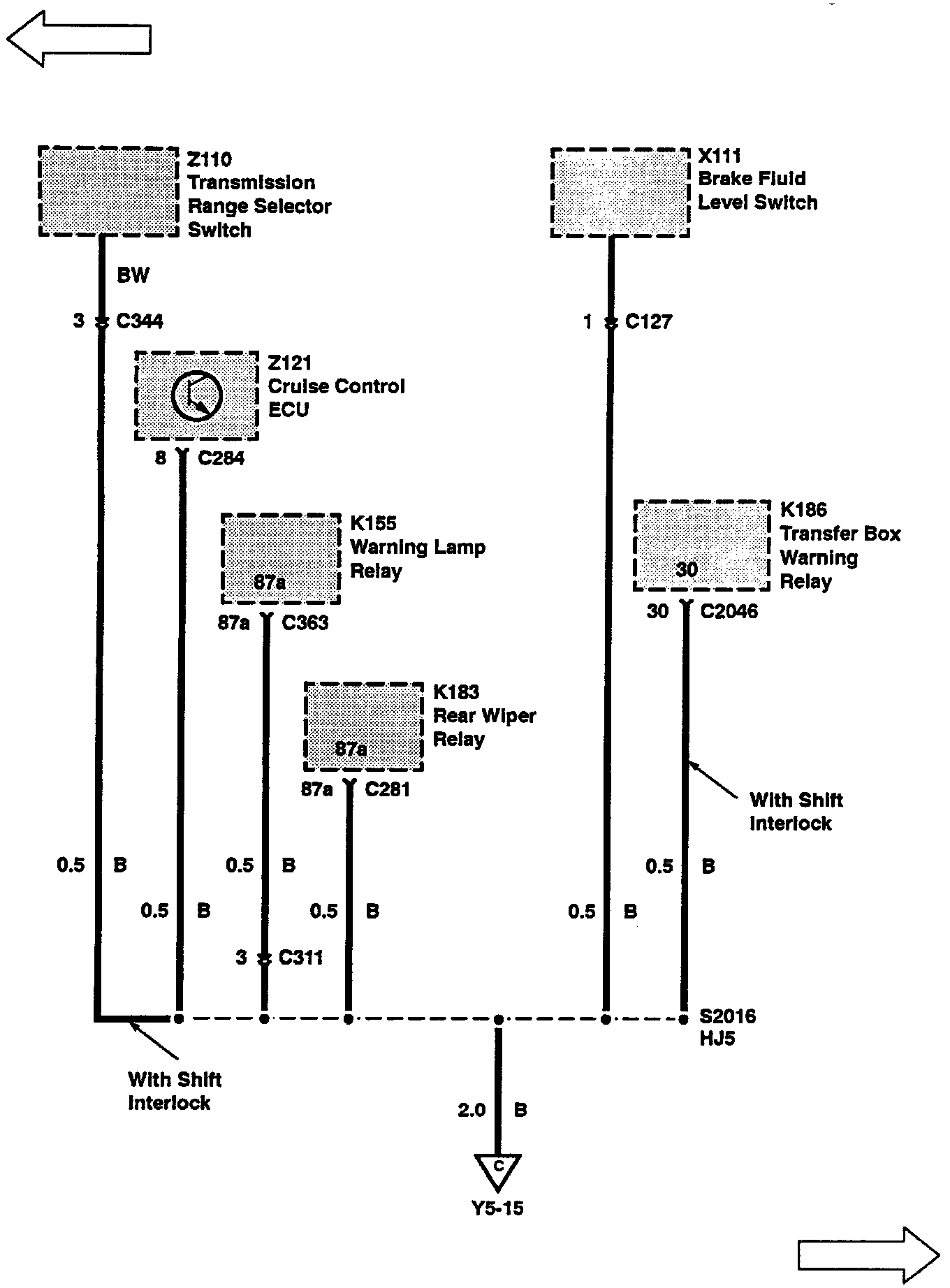

Splice Distribution
>>
S2016/HJ5
S2016/HJ5
Y5-14:
