Seats
>>
System Diagram
>>

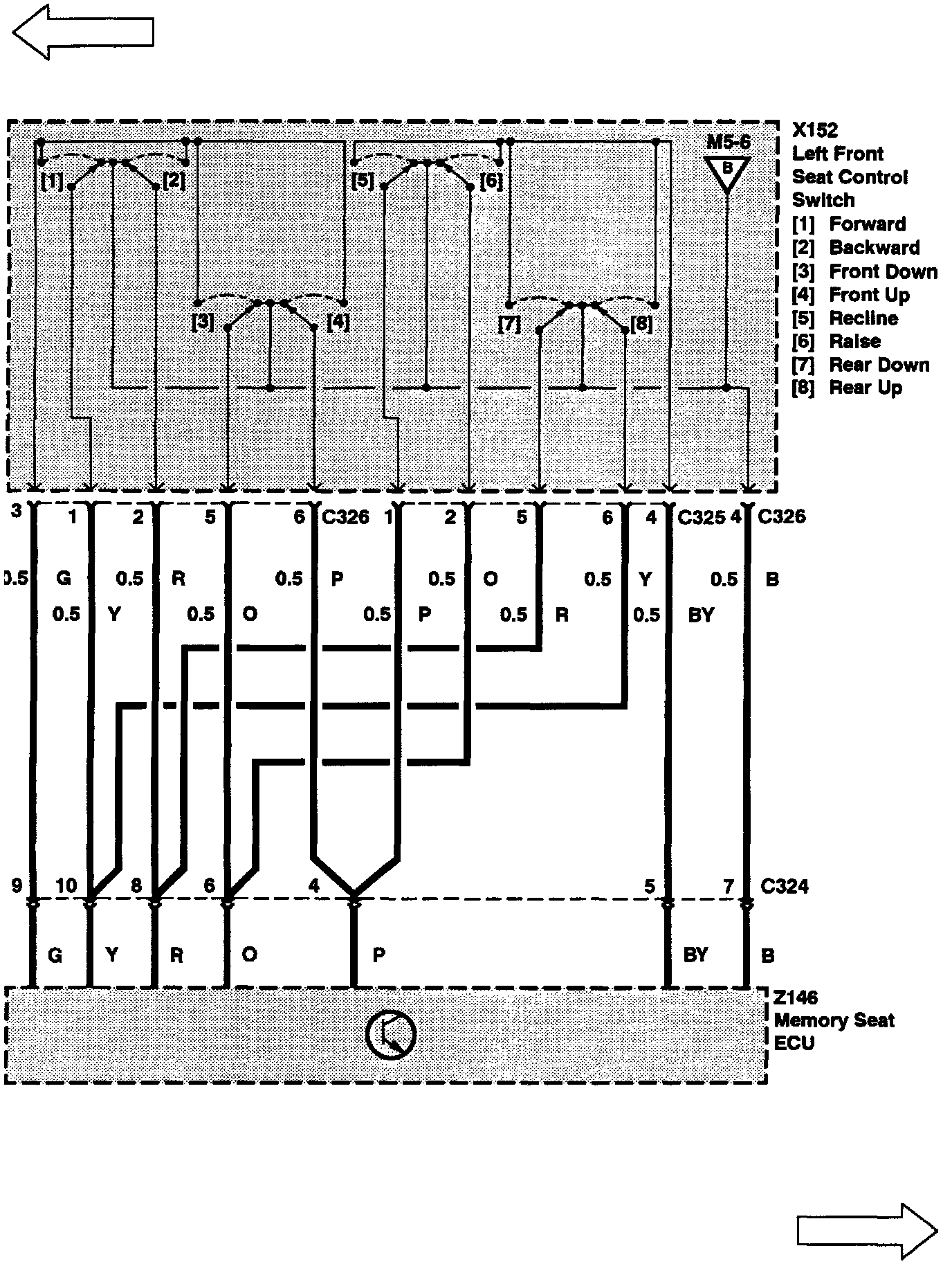

Memory Seat/Mirrors
Memory Seat/Mirrors

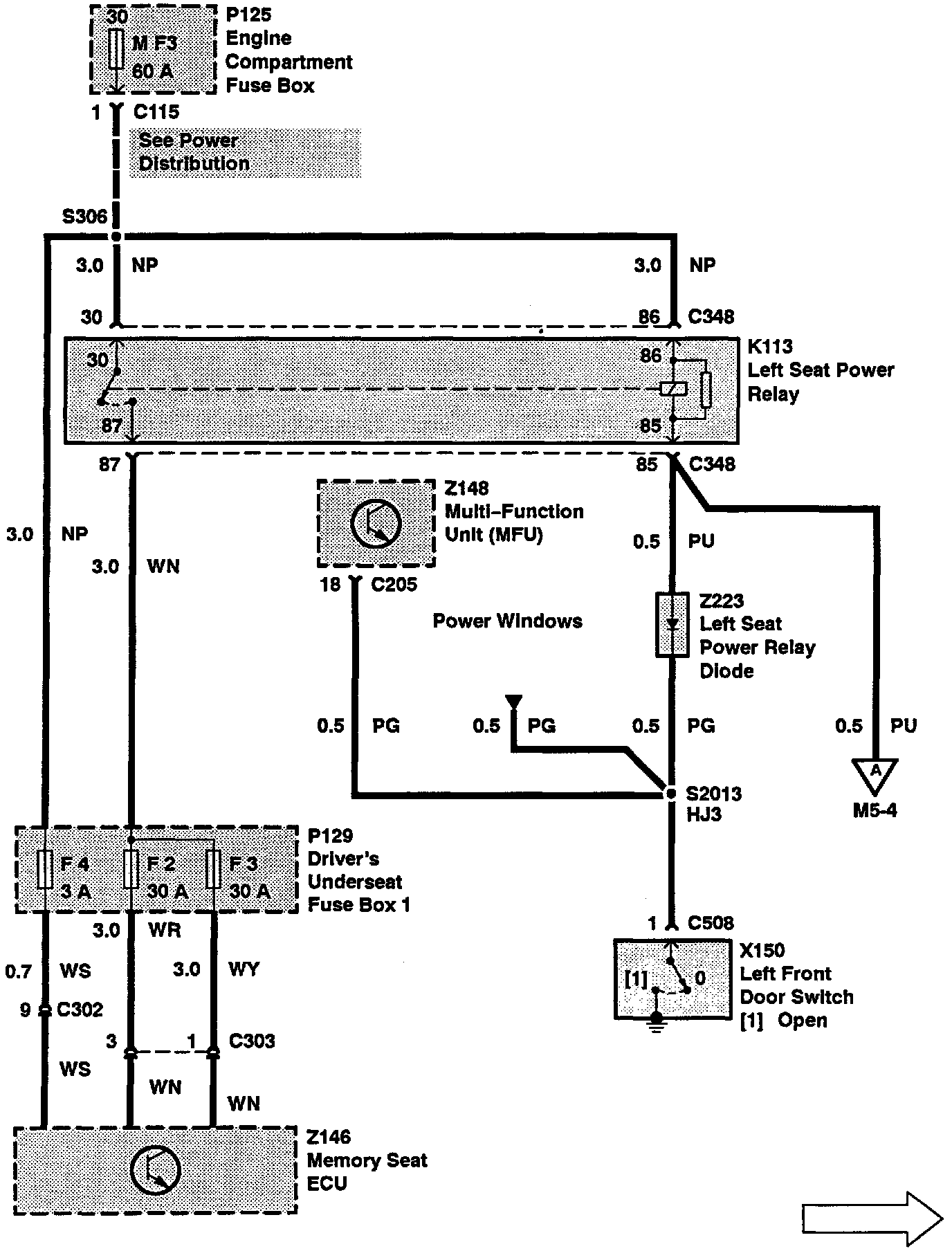

M5-3:

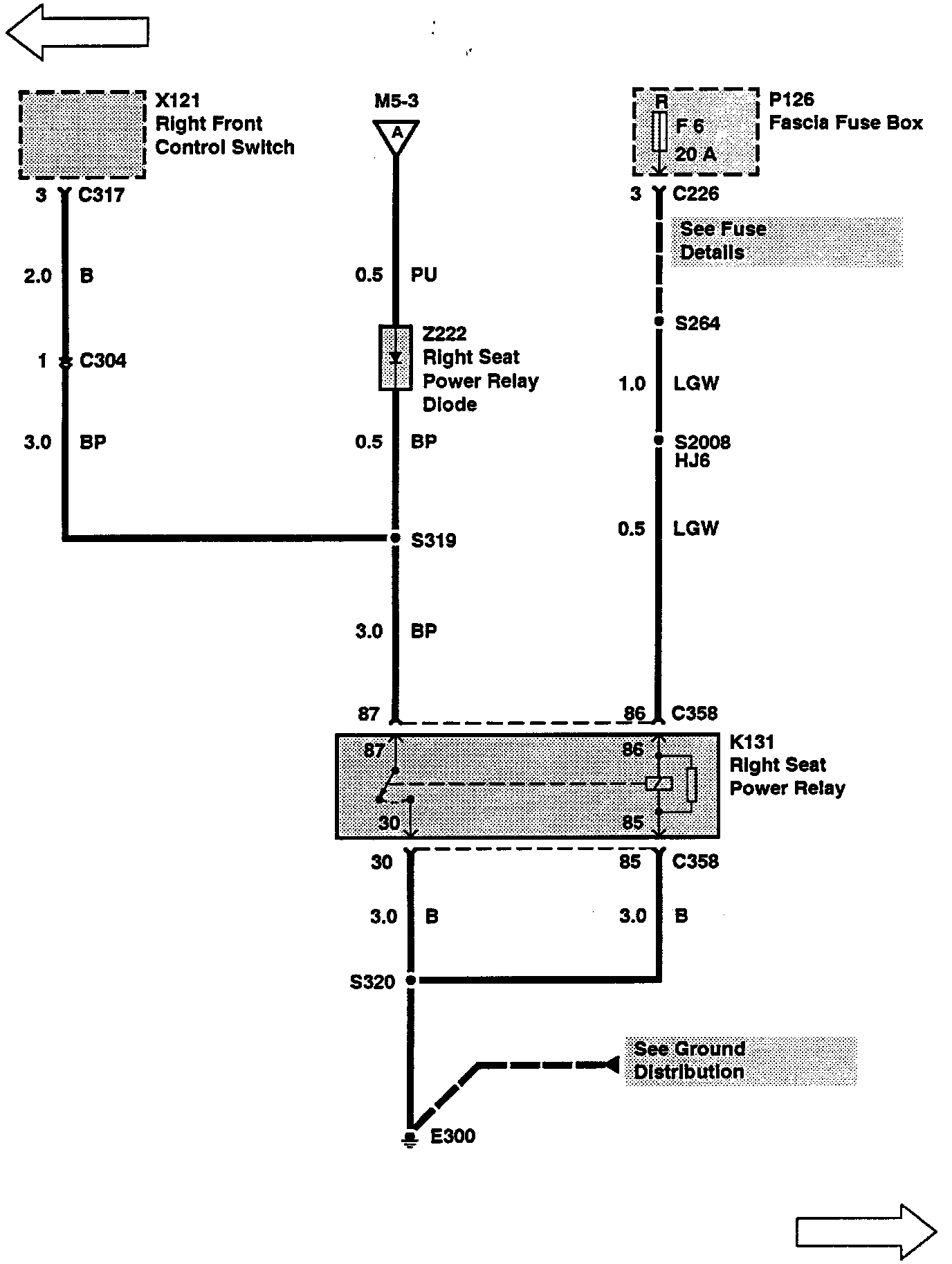

M5-4:

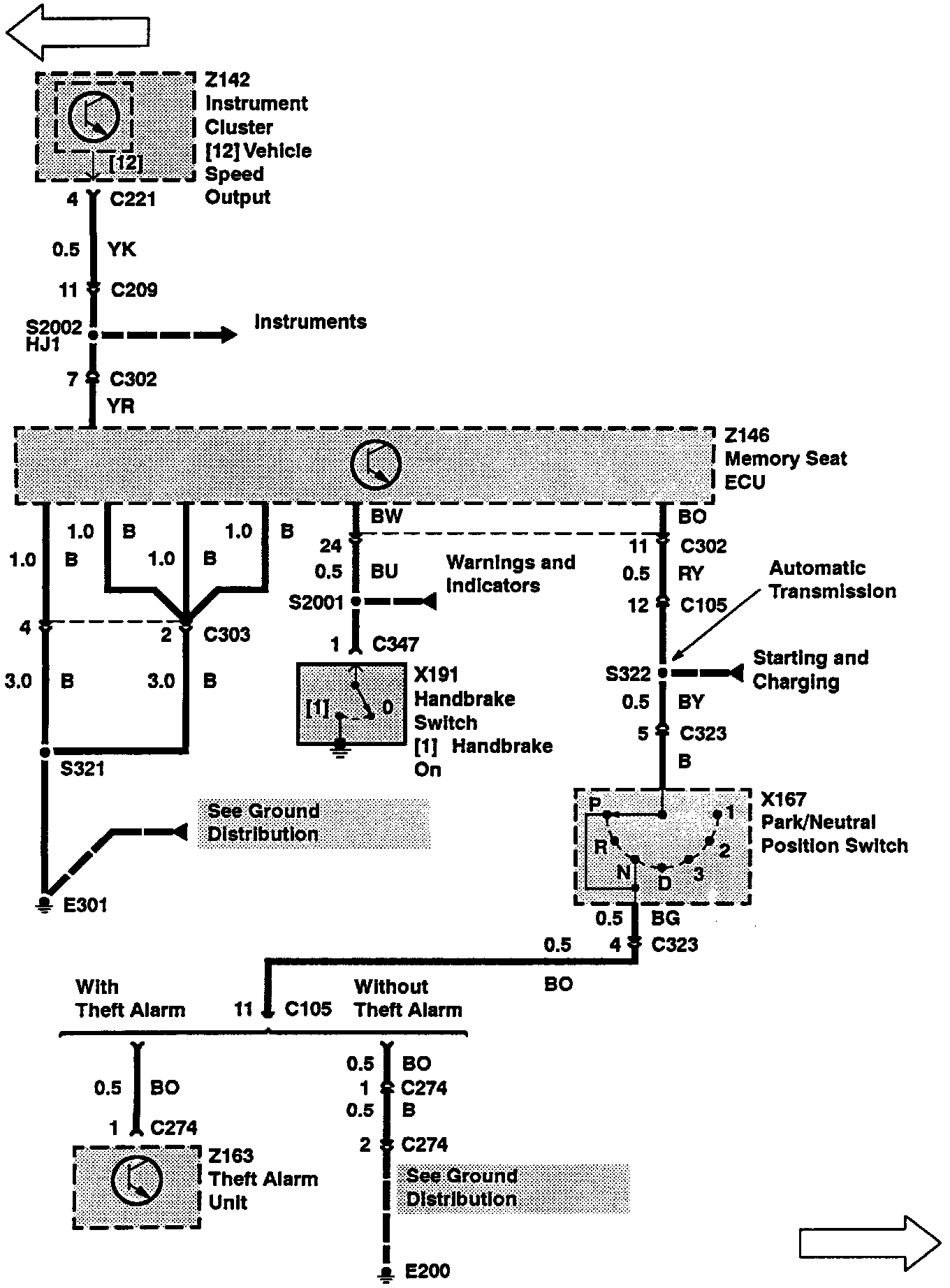

M5-5:

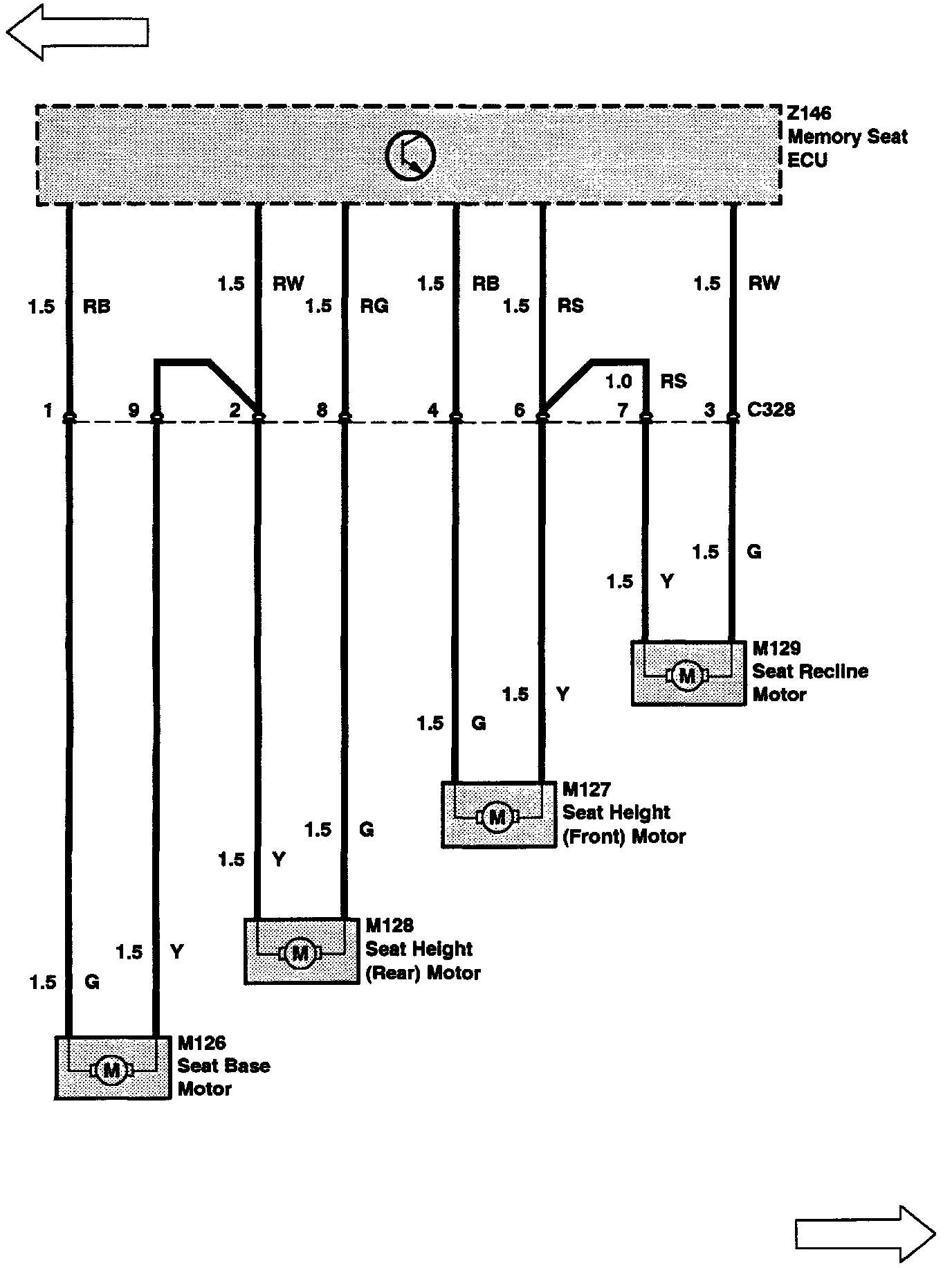

M5-6:

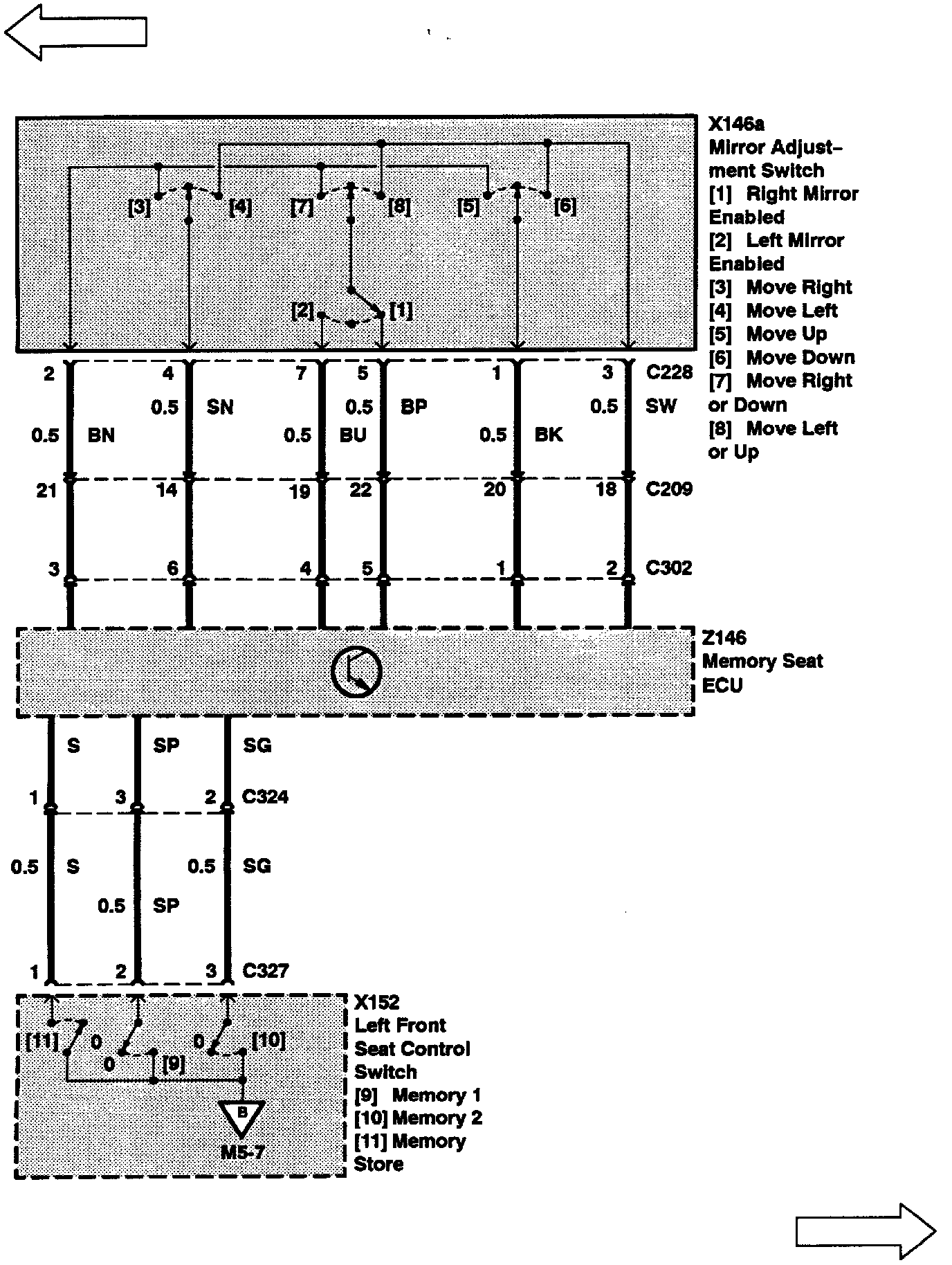

M5-7:

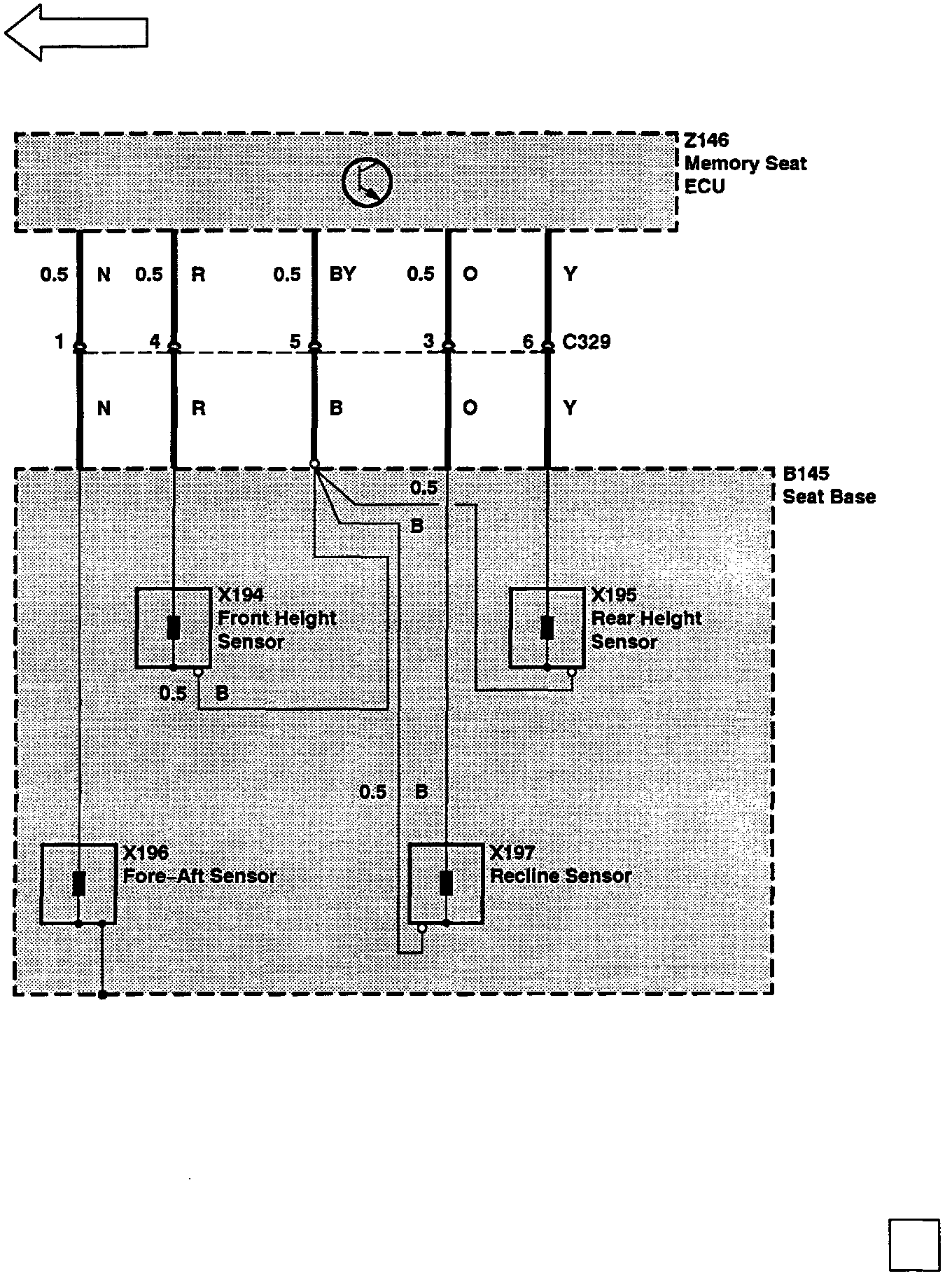

M5-8:

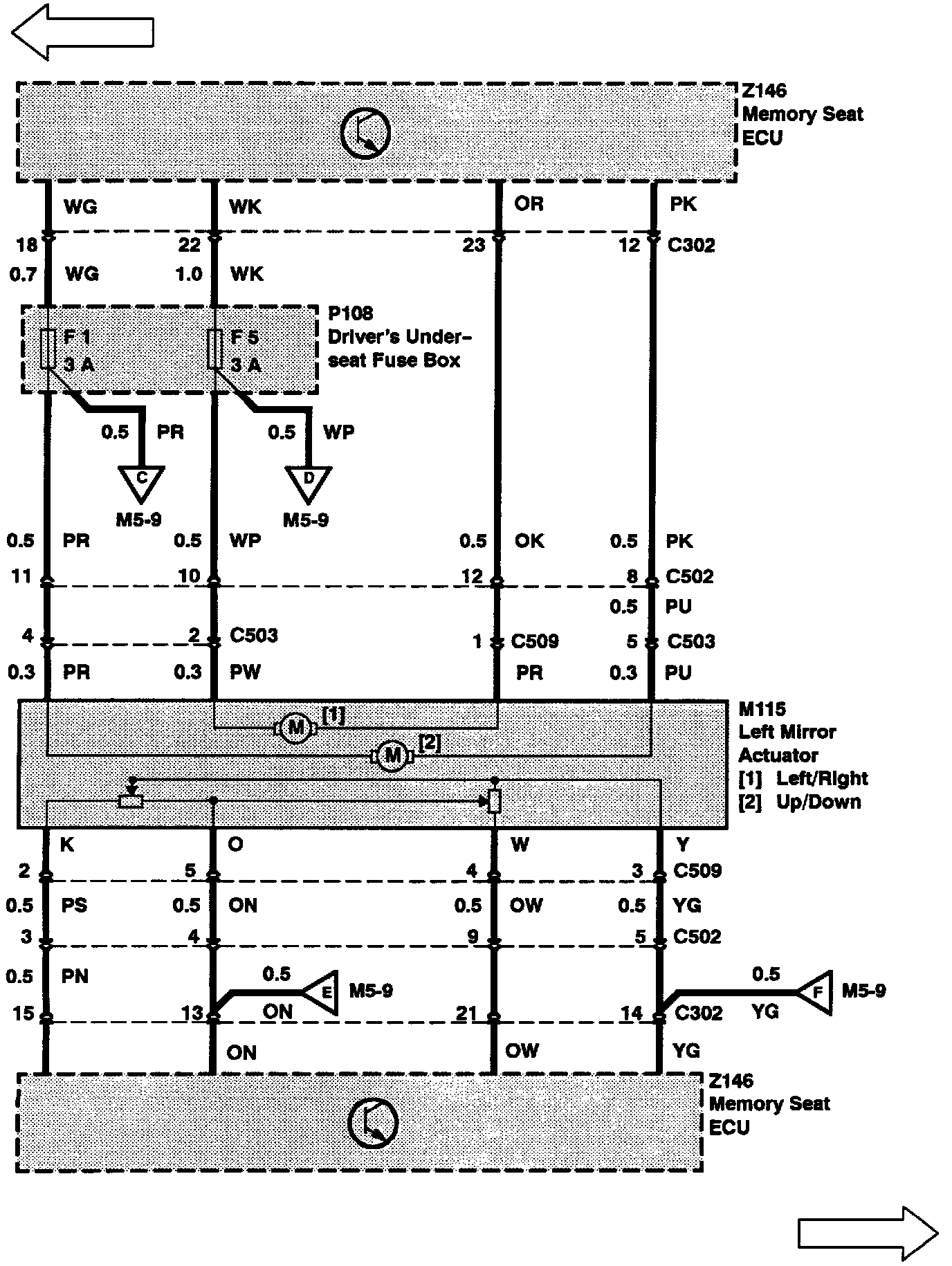

M5-9:

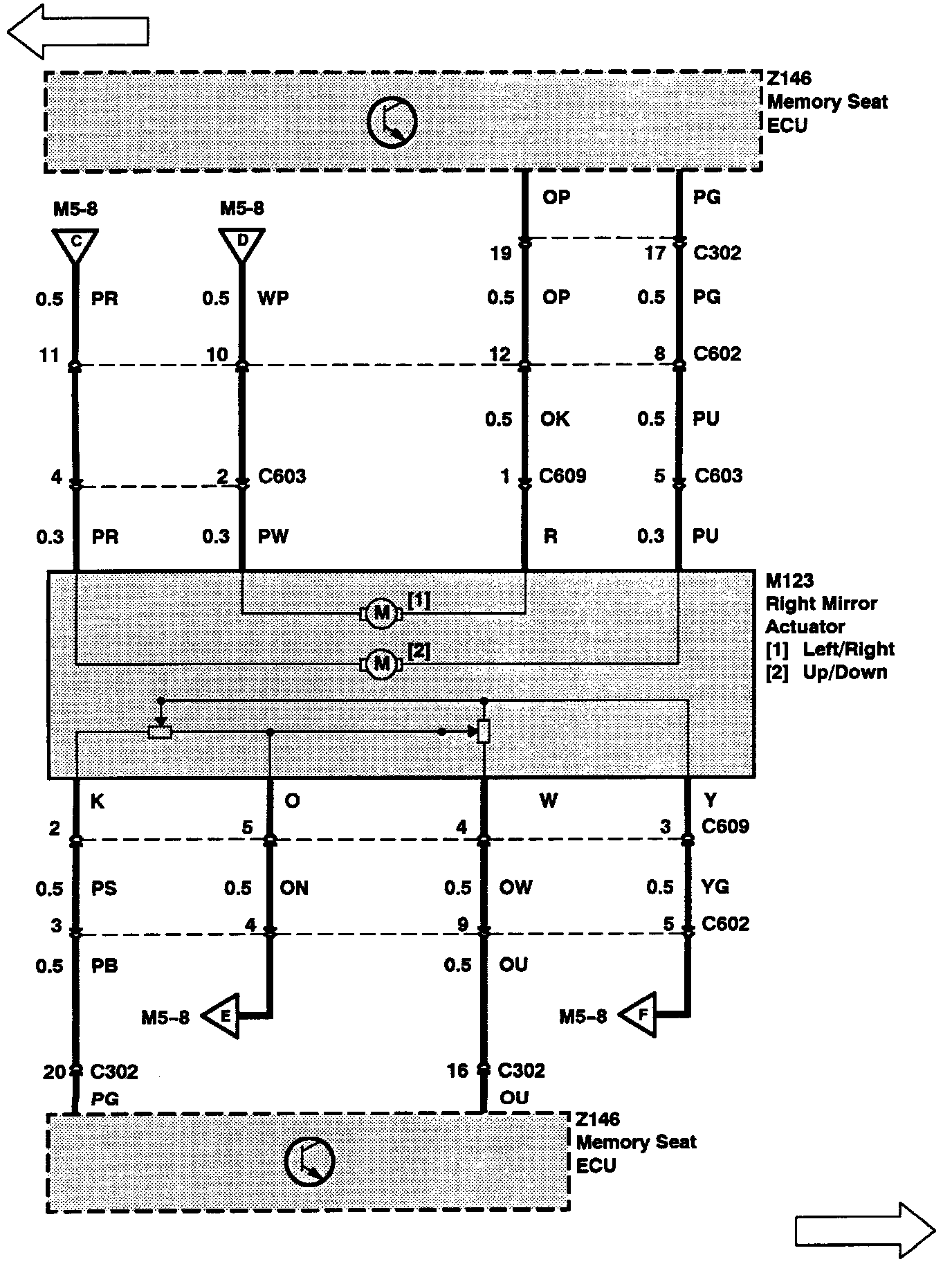

M5-10:
M5-11:
