Home >> Land Rover >> 1995 >> Range Rover Classic LWB (LH) V8-4.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cruise Control >> System Diagram >> All Variants

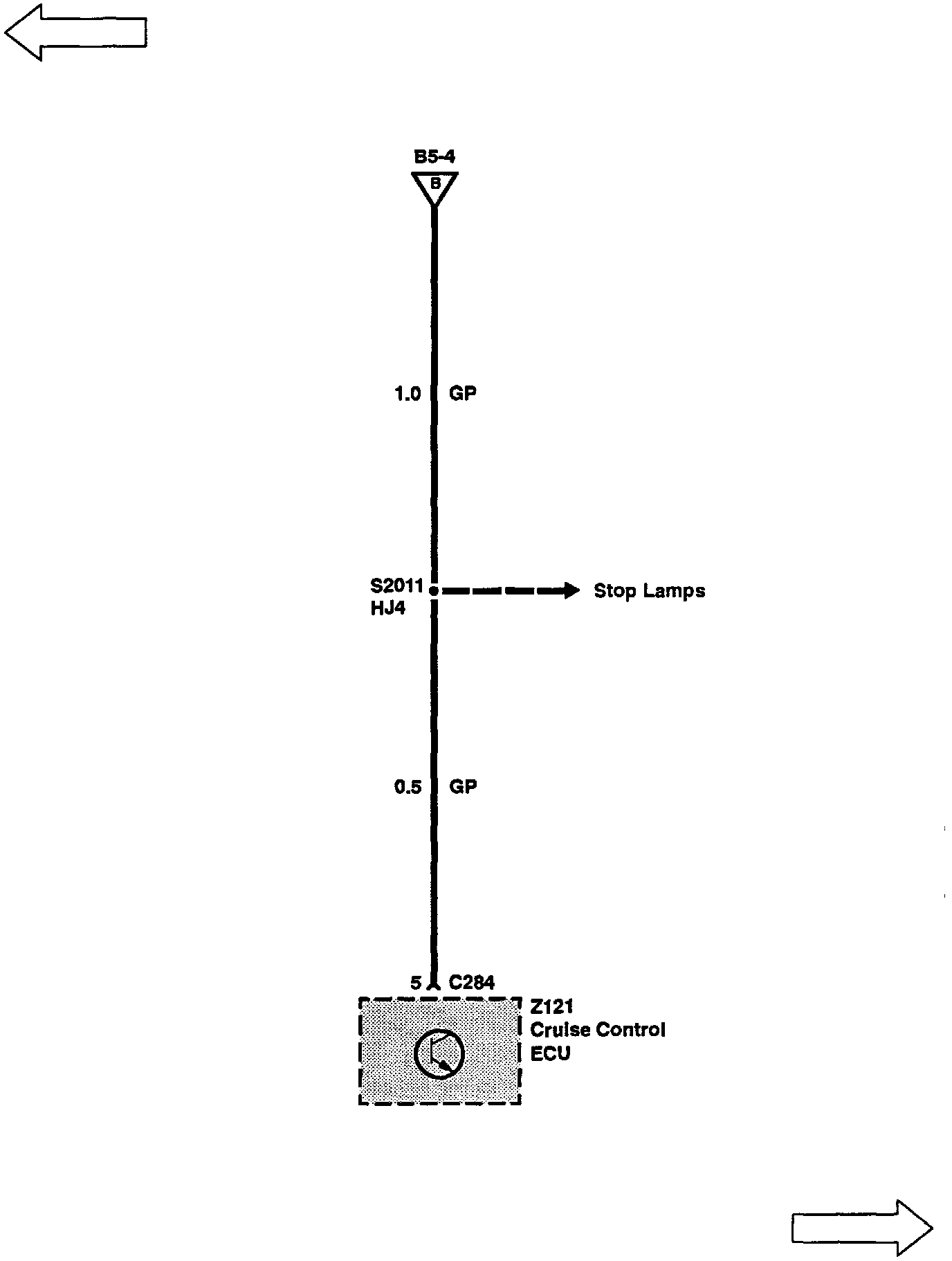

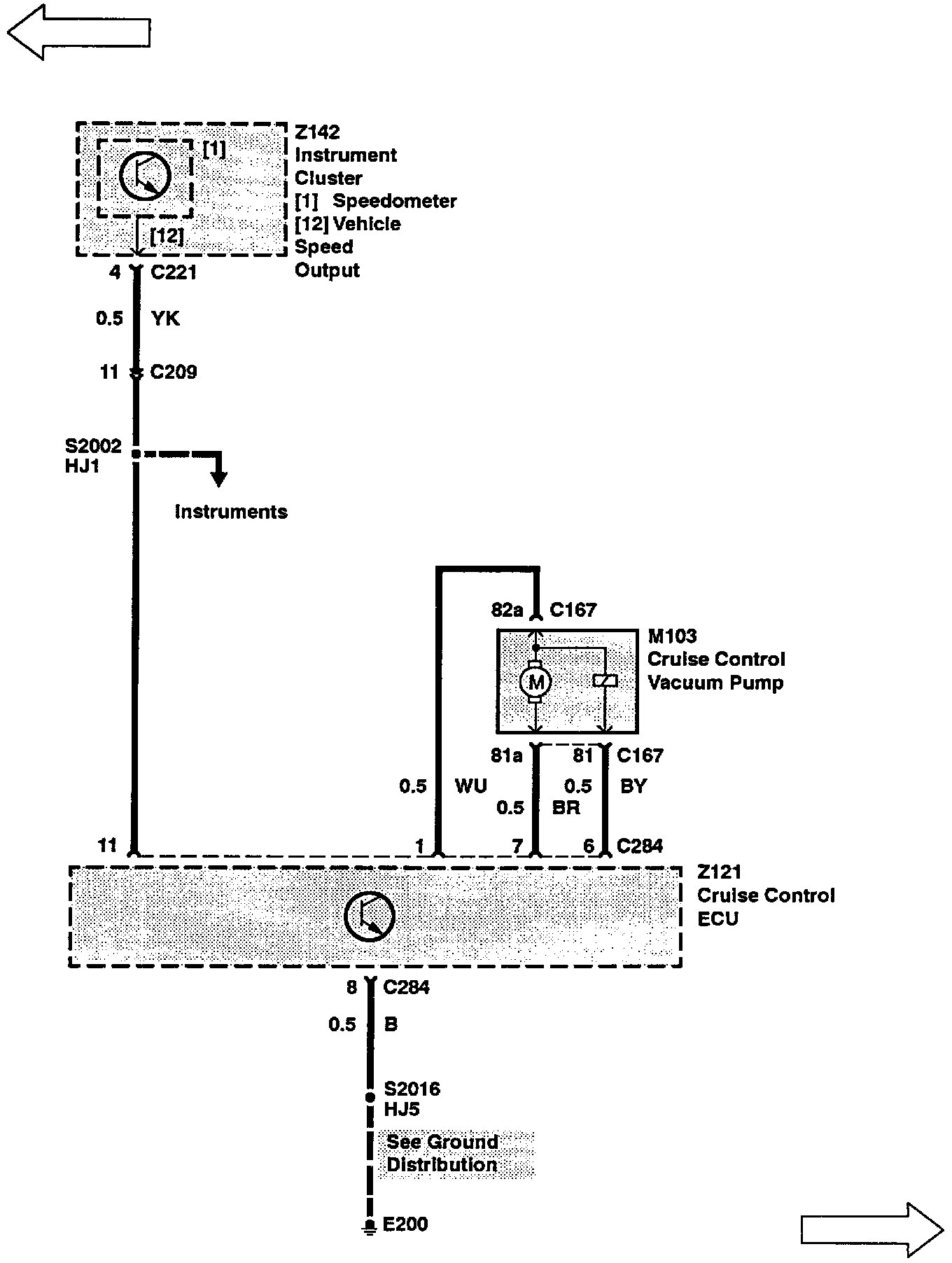

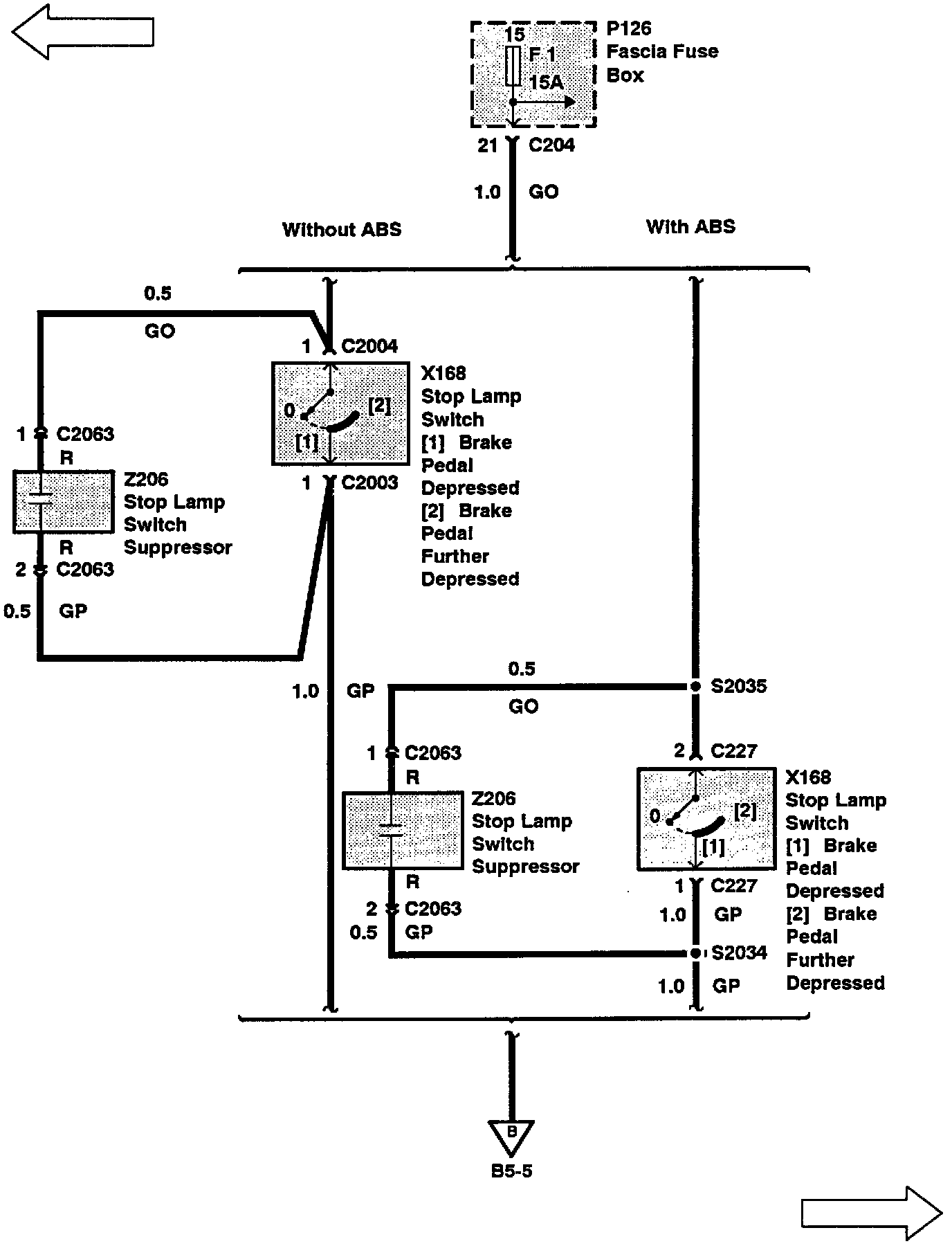

All Variants

B5-3:





B5-4:





B5-5:





B5-6:
