Windscreen Washer Jets


Windscreen Washer Jets

Service Repair No - 84.10.09

Remove

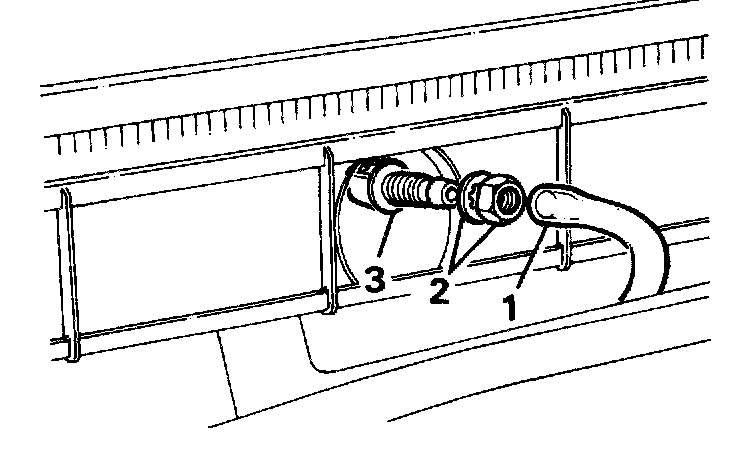

1. Disconnect washer tube from jet.
2. Remove nut and washer securing washer jet to air intake cowl.
3. Remove jet.

Refit
4. Reverse removal procedure. 1 to 3.
