Clutch Release Fork: Service and Repair

REMOVAL

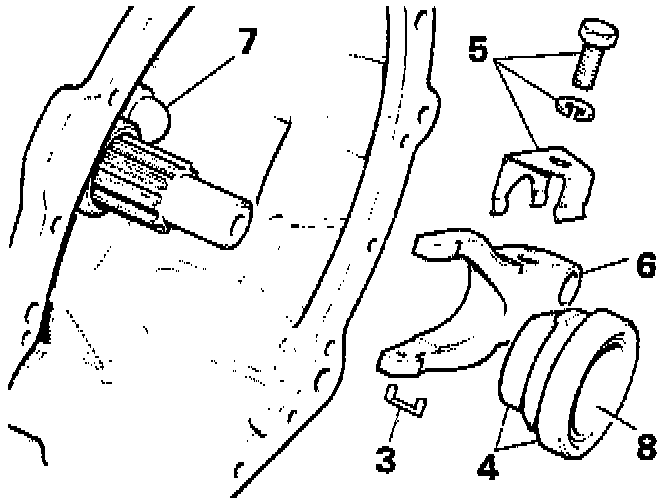

1. Remove gearbox, refer to Replacement. Service and Repair
2. Remove clutch slave cylinder, refer to Replacement. Service and Repair





3. Withdraw retainer staple.
4. Withdraw bearing and sleeve.
- If required, press bearing off sleeve.
- Install replacement bearing with domed face outwards from sleeve.
5. Remove spring clip and fixings.
6. Withdraw release lever assembly.

INSTALLATION
7. Smear pivot with grease and install release lever and retain with spring clip and bolt.
8. Smear release bearing sleeve inner diameter with molybdenum disulfide base grease.
9. Reverse removal procedure steps 1 through 4.
