Discovery I (LJ) V8-3.9L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

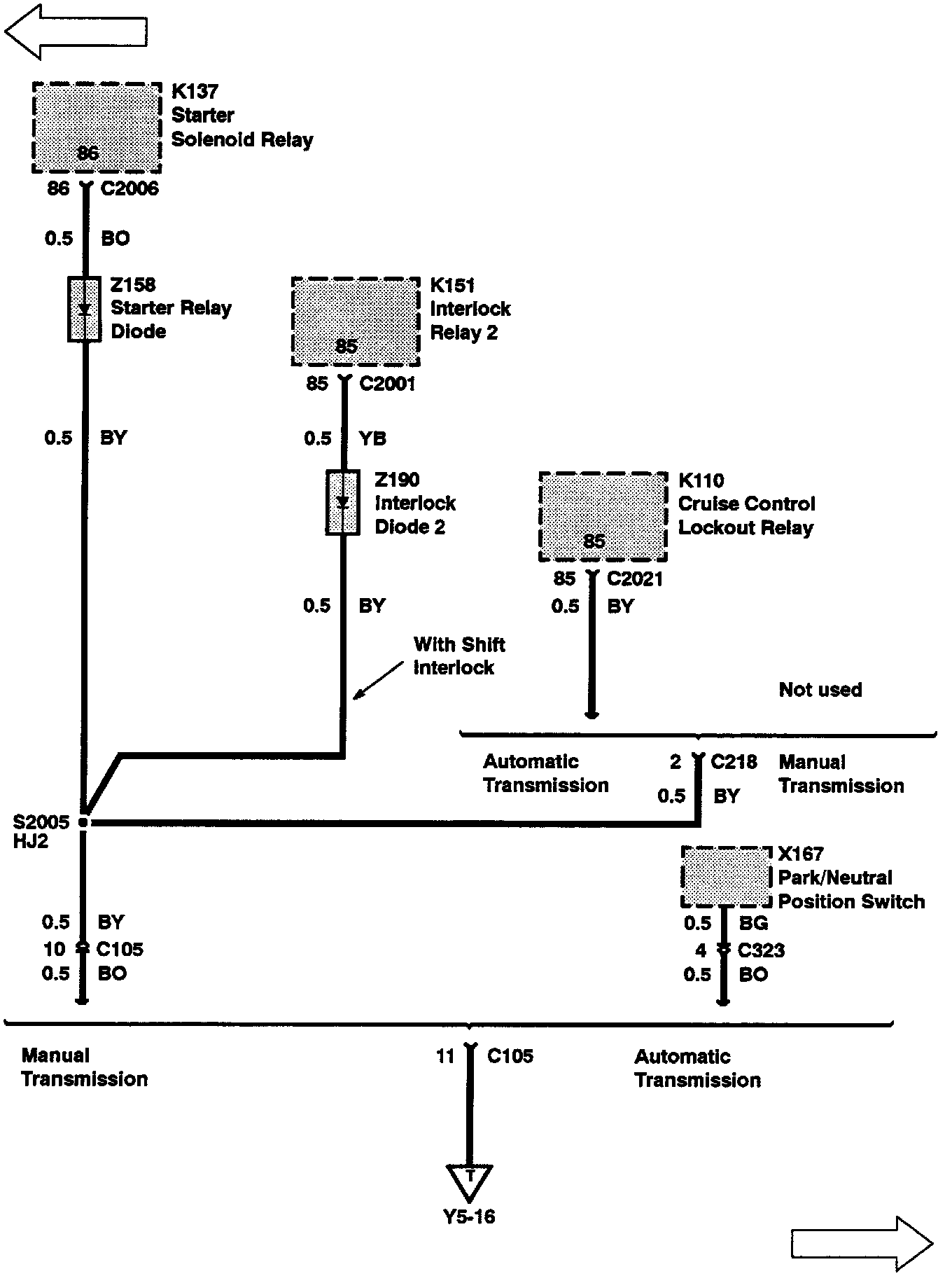

Splice Distribution
>>
S2005/HJ2
S2005/HJ2
Y5-15:
