Home
>>
Land Rover
>>
1995
>>
Discovery I (LJ) V8-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C205 - C209
C205 - C209

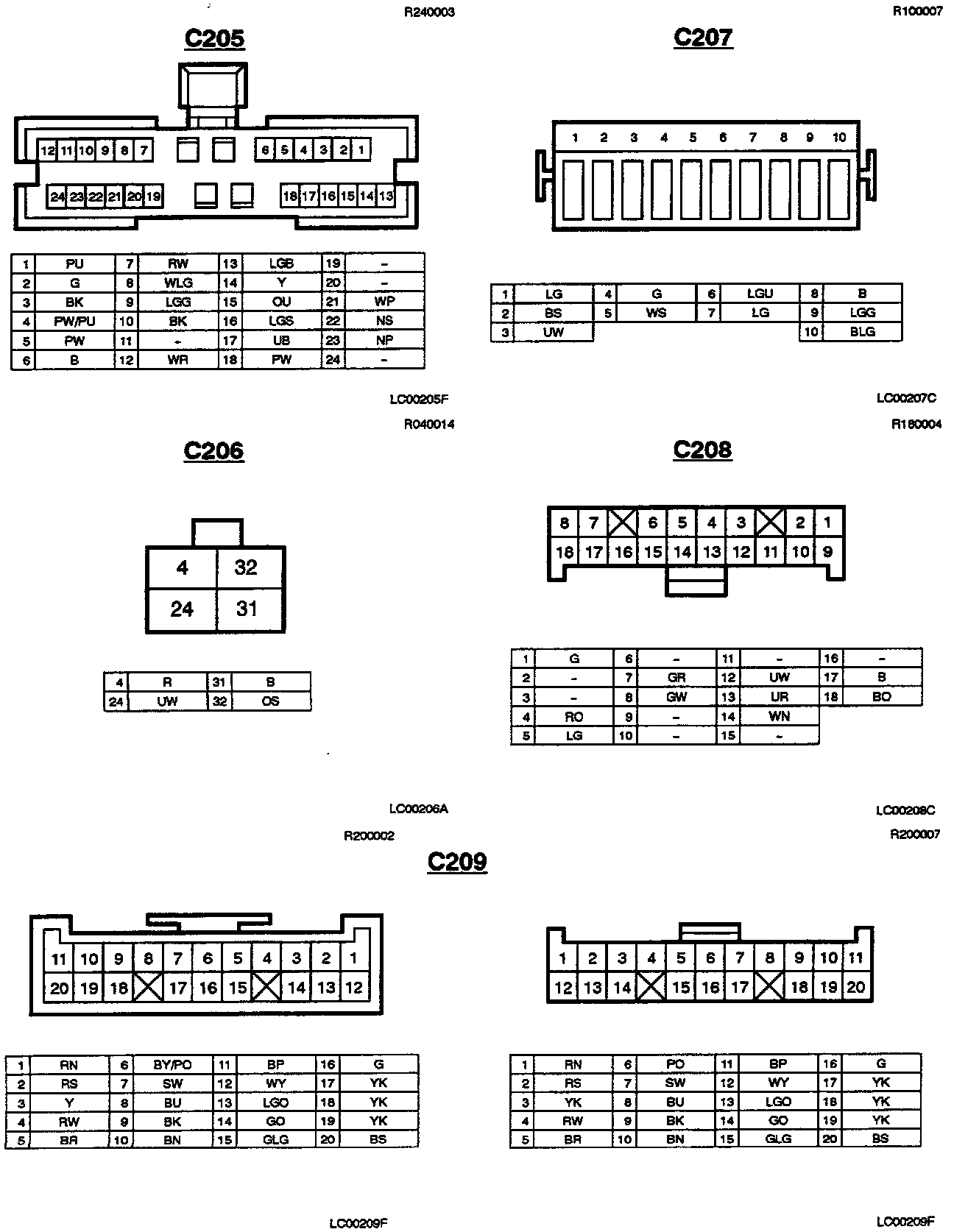

C205, C206, C207, C208, C209:
