Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
1995
>>
Discovery I (LJ) V8-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C100 - C105
C100 - C105

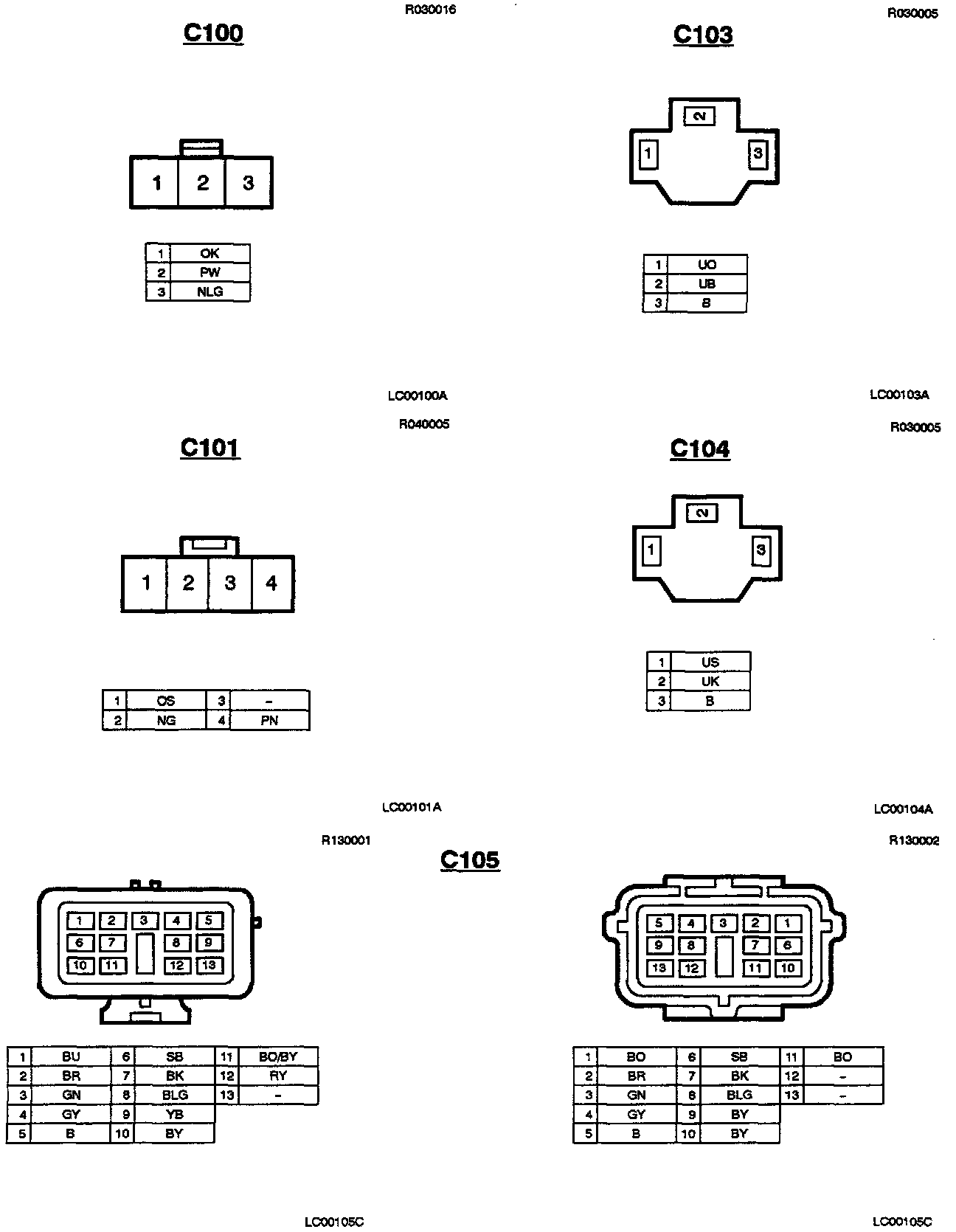

C100, C103, C101, C104, C105:
