Steering Damper: Service and Repair

Steering Linkage Damper

Removal

1. Park vehicle on level ground ad chock rear wheels.
2. Raise vehicle and locate axle stands or use a ramp.

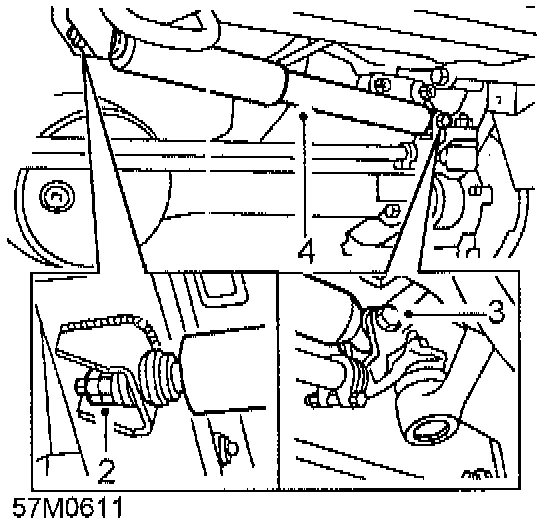

3. Remove bolt securing steering damper to drag link bracket.
4. Remove retaing nuts, washers and rubber bush securing steering linkage damper to chassis mounting
5. Withdraw steering linkage damper.





6. Check rubber bushes and washers, renew if needed.

Installation

1. Ensuring rubber bushes and washers are correctly positioned, fit steering linkage damper to chassis mounting.
2. Install steering linkage damper to drag link bracket.
3. Remove axle stands or vehicle from ramp.
