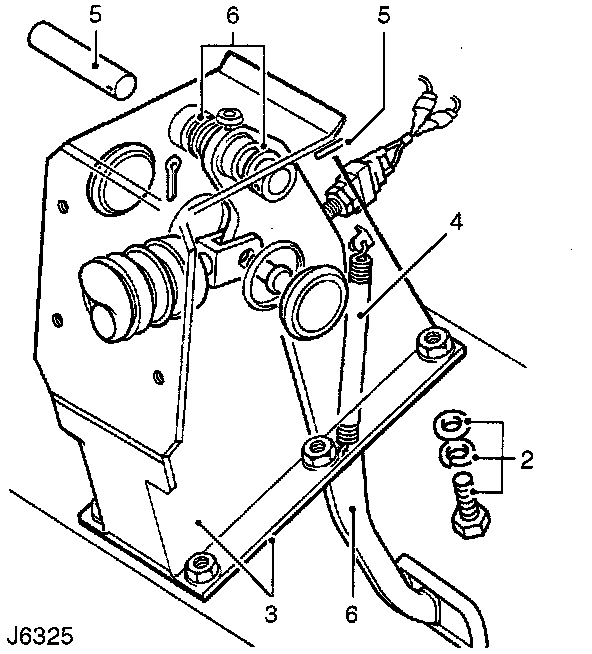

Brake Pedal Assy: Diagrams






LEGEND
2. Pedal Box Mounting Bolts
3. Pedal Box
4. Pedal Return Spring
5. Pedal Pivot Pin & Cotter Pin
6. Pedal w/Bushings
