Exterior Roll-Over Bar

Remove

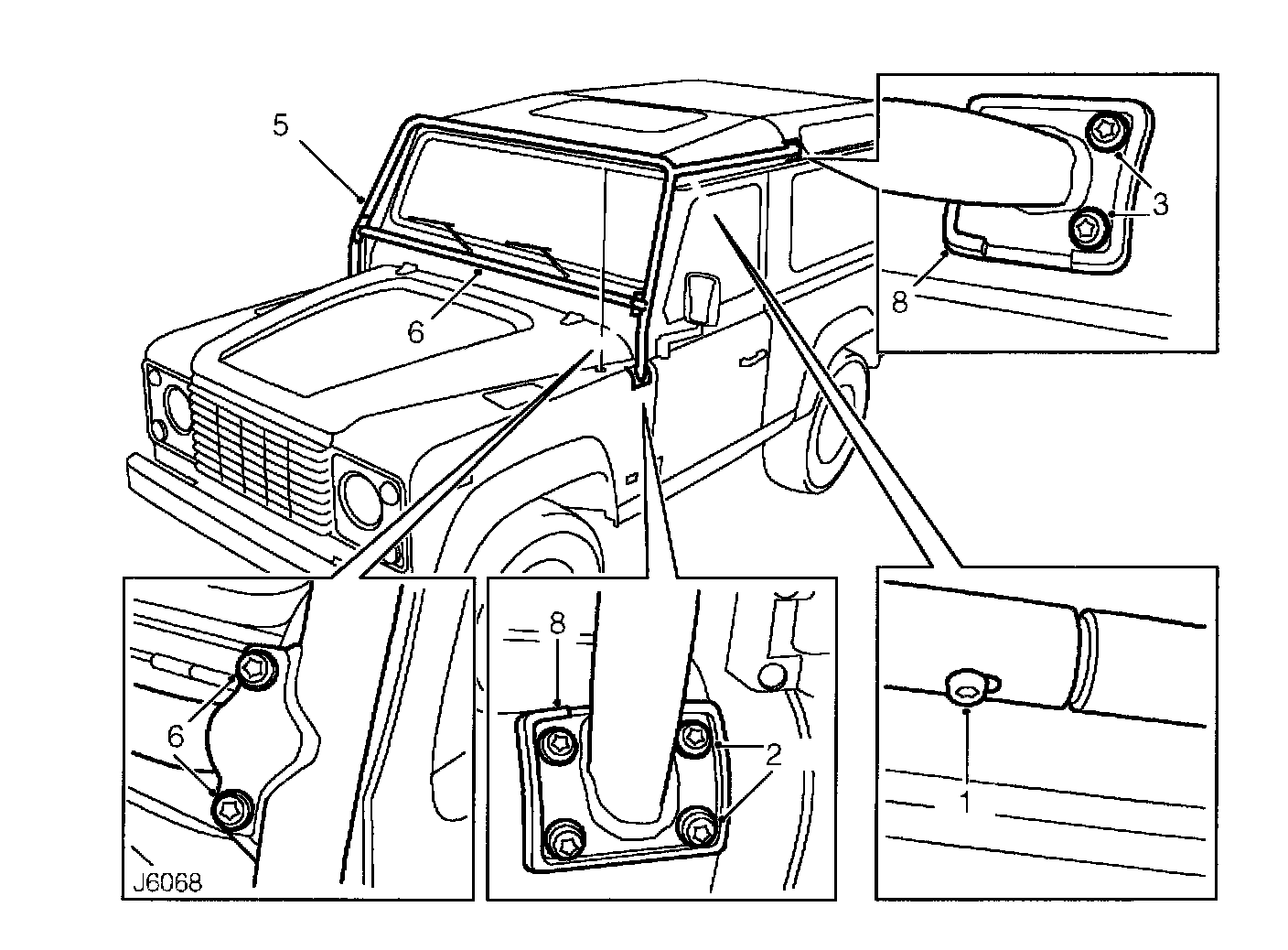

1. Remove torx bolt, from both sides, securing top of roll-over bar to roof mounted bar.
2. With assistance to support roll-over bar at windscreen, remove 4 torx bolts, from both sides, securing roll-over bar to fender mounting.
3. Remove two torx bolts, from both sides, securing top bar to roof mounting.
4. Slide top bars rearwards to disengage from main roll-over bar assembly.
5. Lift main roll-over bar assembly from vehicle.
6. If necessary, remove 2 torx bolts and nuts, from both sides, and detach lower cross bar from main roll-over bar.


Refit
7. Locate lower cross bar into main roll-over bar mounting brackets and secure with torx bolts and nuts to 25 Nm, 18 lbf ft.
8. Ensure rubber gaskets are fitted correctly to roll-over bar mounting brackets.
9. With assistance, lift roll-over bar assembly and position on fenders.
10. Slide top bars into main roll-over bar, position on roof mounting and secure with torx bolts to 25 Nm, 18 lbf ft.
11. Secure roll-over bar to both fender mountings with torx bolts. Tighten to 25 Nm, 18 lbf ft.
12. Secure top bars to main roll-over bar and tighten fixing bolts to 25 Nm, 18 lbf ft.
