Door Lock Knob: Service and Repair

Sill Locking Button - Front Door

Remove
1. Remove door trim casing.
2. Peel back plastic sheet to expose mechanism.

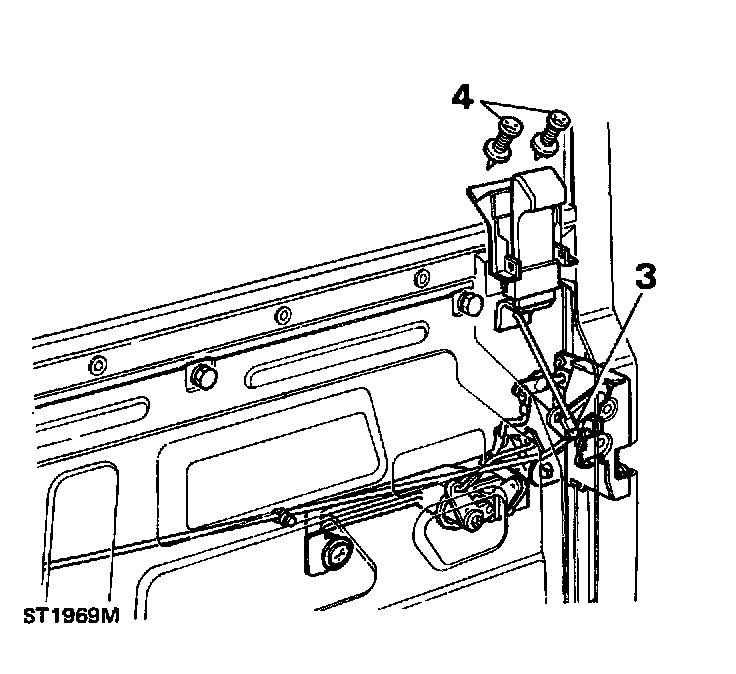

3. Release spring clip and disconnect operating rod from latch mechanism.
4. Remove 2 screws and withdraw locking button assembly.


Refit
5. Secure locking button assembly to door with 2 screws.
6. Connect operating rod to latch mechanism and secure with spring clip.
7. Re-seal plastic sheet and fit door trim casing.
