Home >> Land Rover >> 1994 >> Range Rover County LWB (LH) V8-4.2L >> Repair and Diagnosis >> Wiper and Washer Systems >> Headlamp Washer Spray Nozzle >> Service and Repair

Headlamp Washer Spray Nozzle: Service and Repair

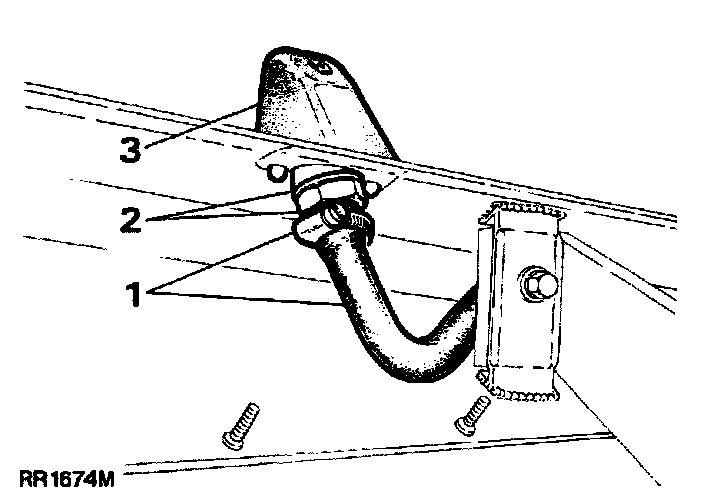

Headlamp Power Wash Jet

Service Repair No - 84.20.08

Remove
1. Disconnect hose from power wash jet.
2. Remove nut securing jet to bumper.
3. Remove power wash jet.





Refit
1. Reverse procedure to install.
