Valve Block

Remove and refit

Remove

WARNING: Air suspension is pressurised up to 10 bar (145 psi). Dirt or grease must not enter the system. Wear hand, ear and eye safety standard protection when servicing system.

1. Remove air supply assembly, refer to Air Supply Unit Air Supply Unit

2. Disconnect air pipes from valve block.

CAUTION: Air pipes must be refitted correctly to avoid component damage.

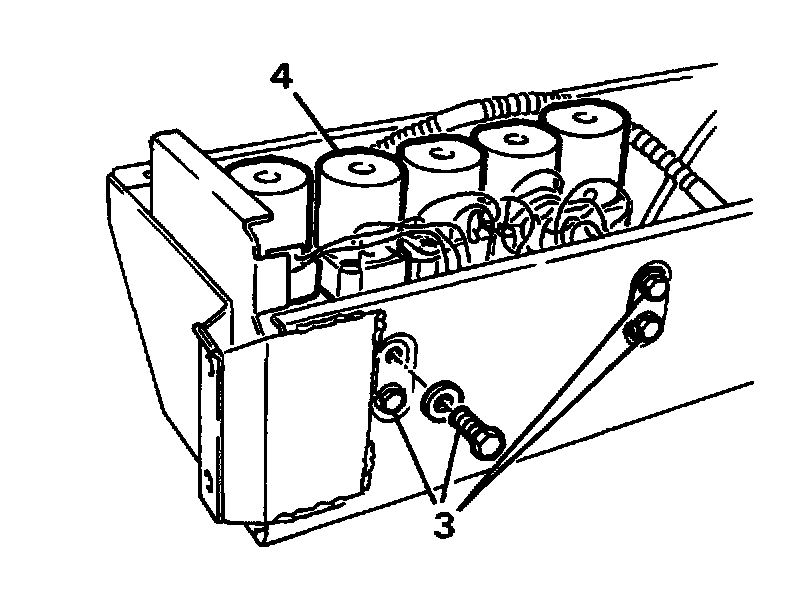

3. Remove four fixing bolts.
4. Remove valve block assembly.

Refit

5. Reverse removal procedure.
6. Leak test connections.
