Home
>>
Land Rover
>>
1994
>>
Range Rover County LWB (LH) V8-4.2L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Brake Light Switch
>>
Diagrams
>>
Electrical Diagrams

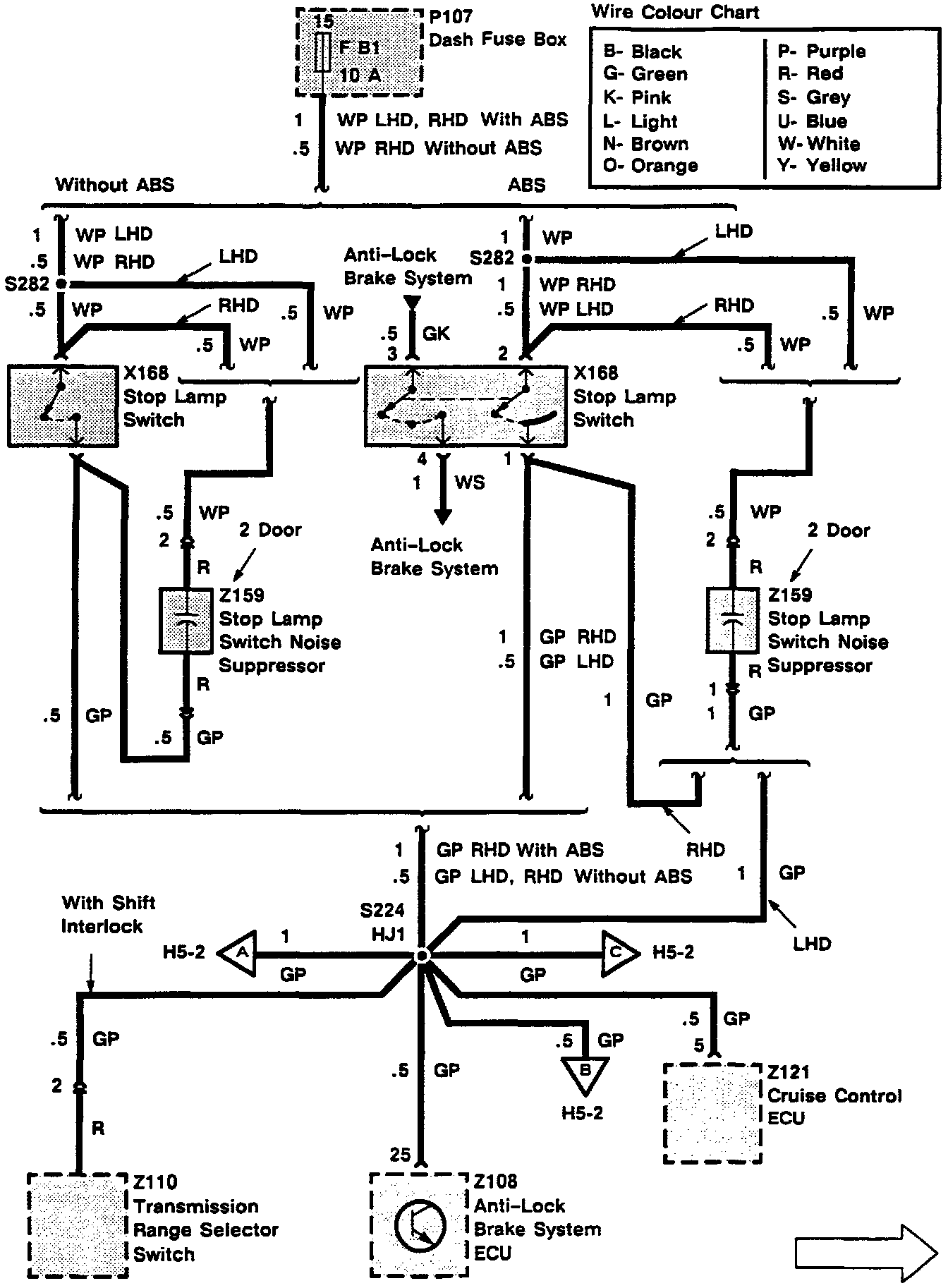

Electrical Diagrams

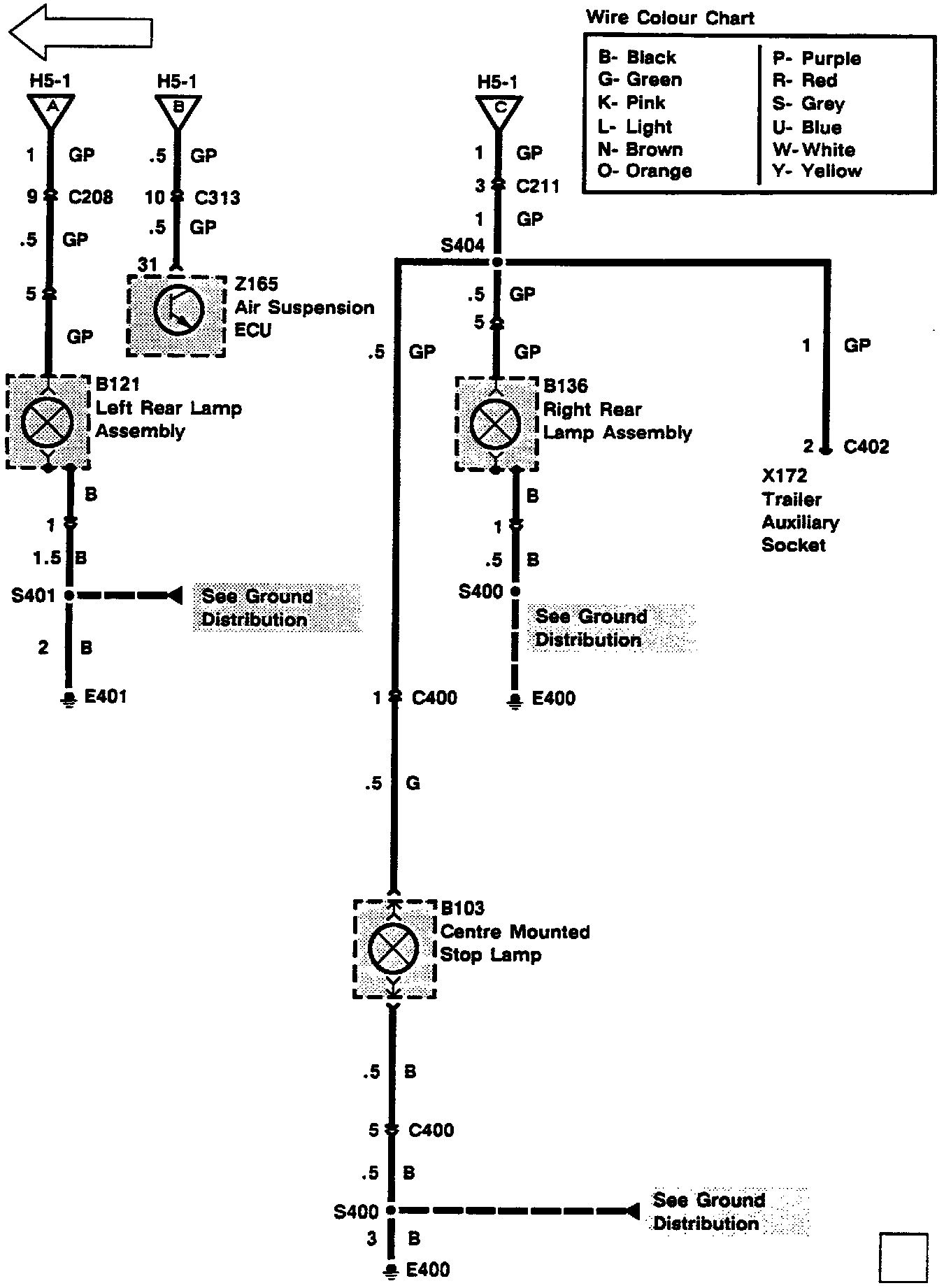

H5-1:
H5-2:
