Front Wipe / Wash
Front Wipe / Wash
Front Wipe / Wash (F1-1):

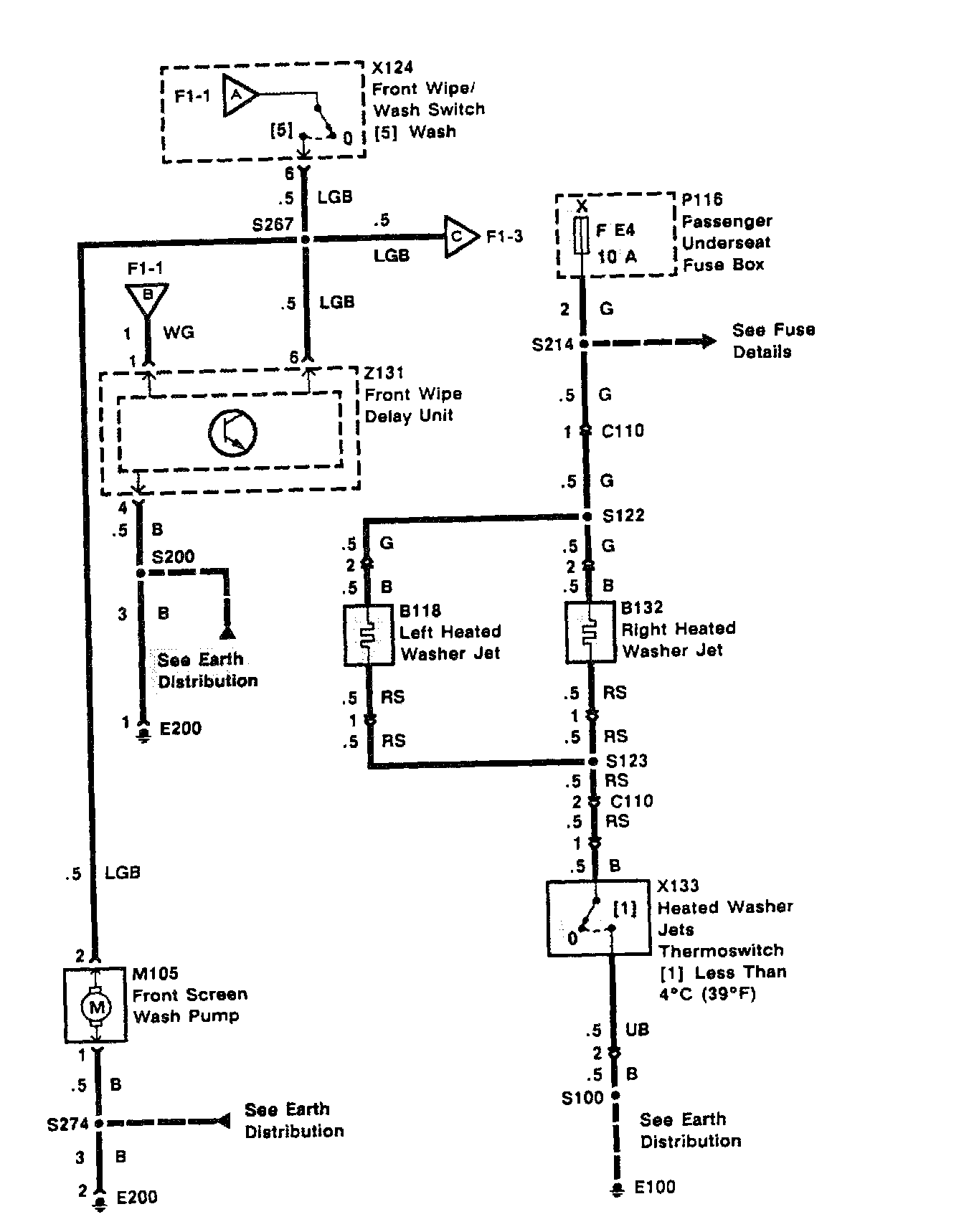

Front Wipe / Wash (F1-2):

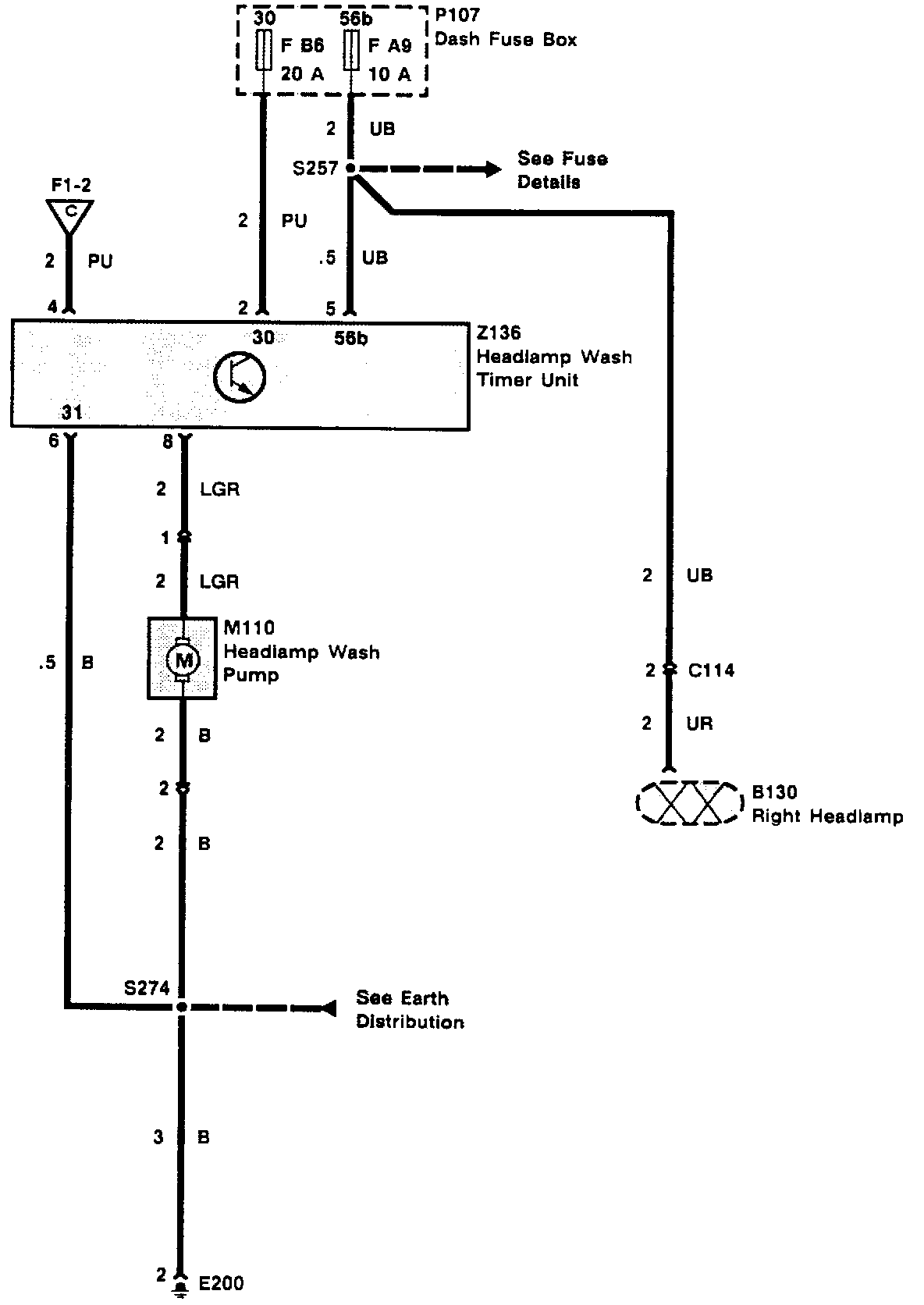

Front Wipe / Wash (F1-3):
