Range Rover County LWB (LH) V8-4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>

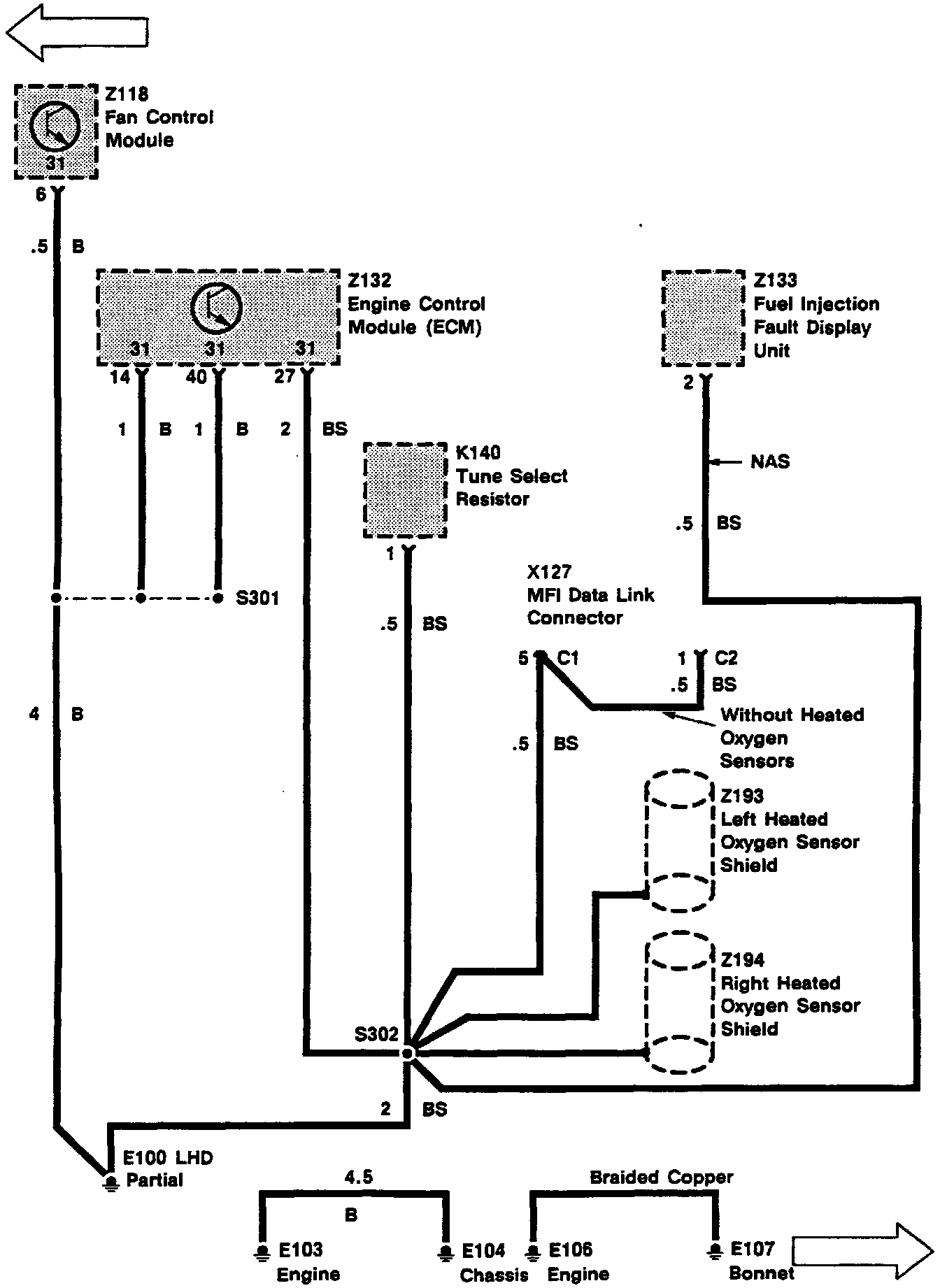

System Diagram
>>
Splice Distribution
>>
S302
S302
Y5-5:
