Range Rover County LWB (LH) V8-4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
System Diagram
>>

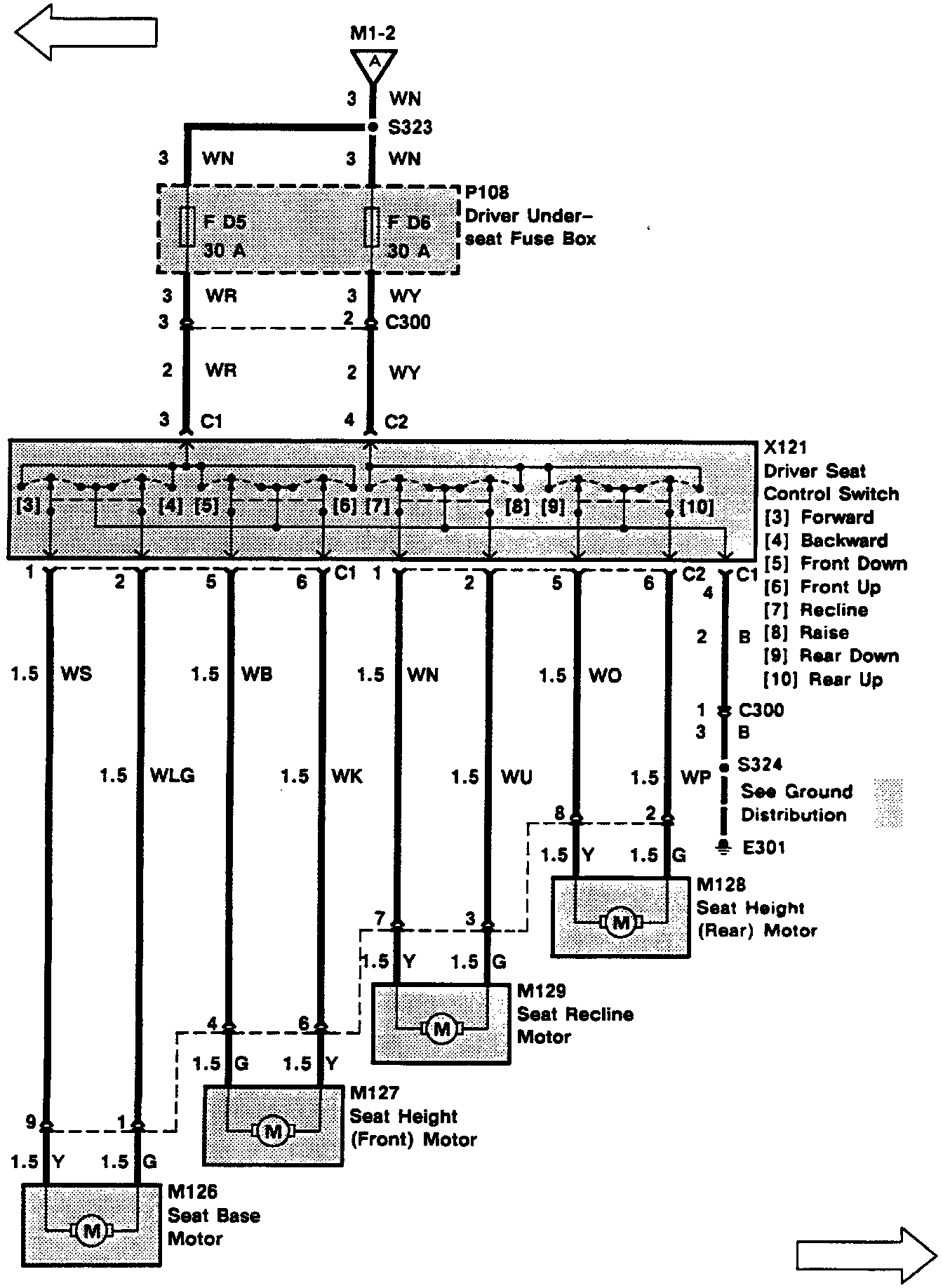

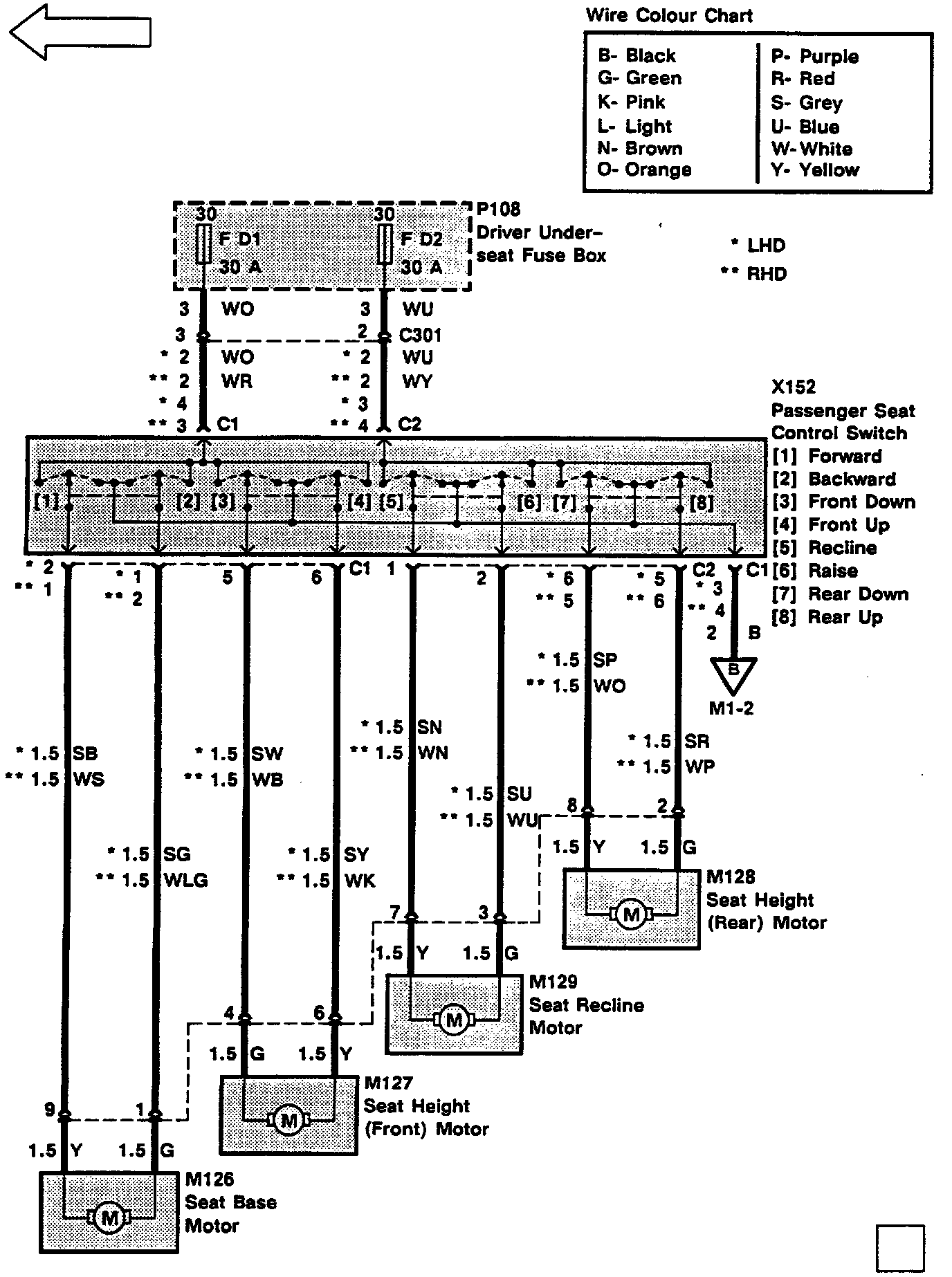

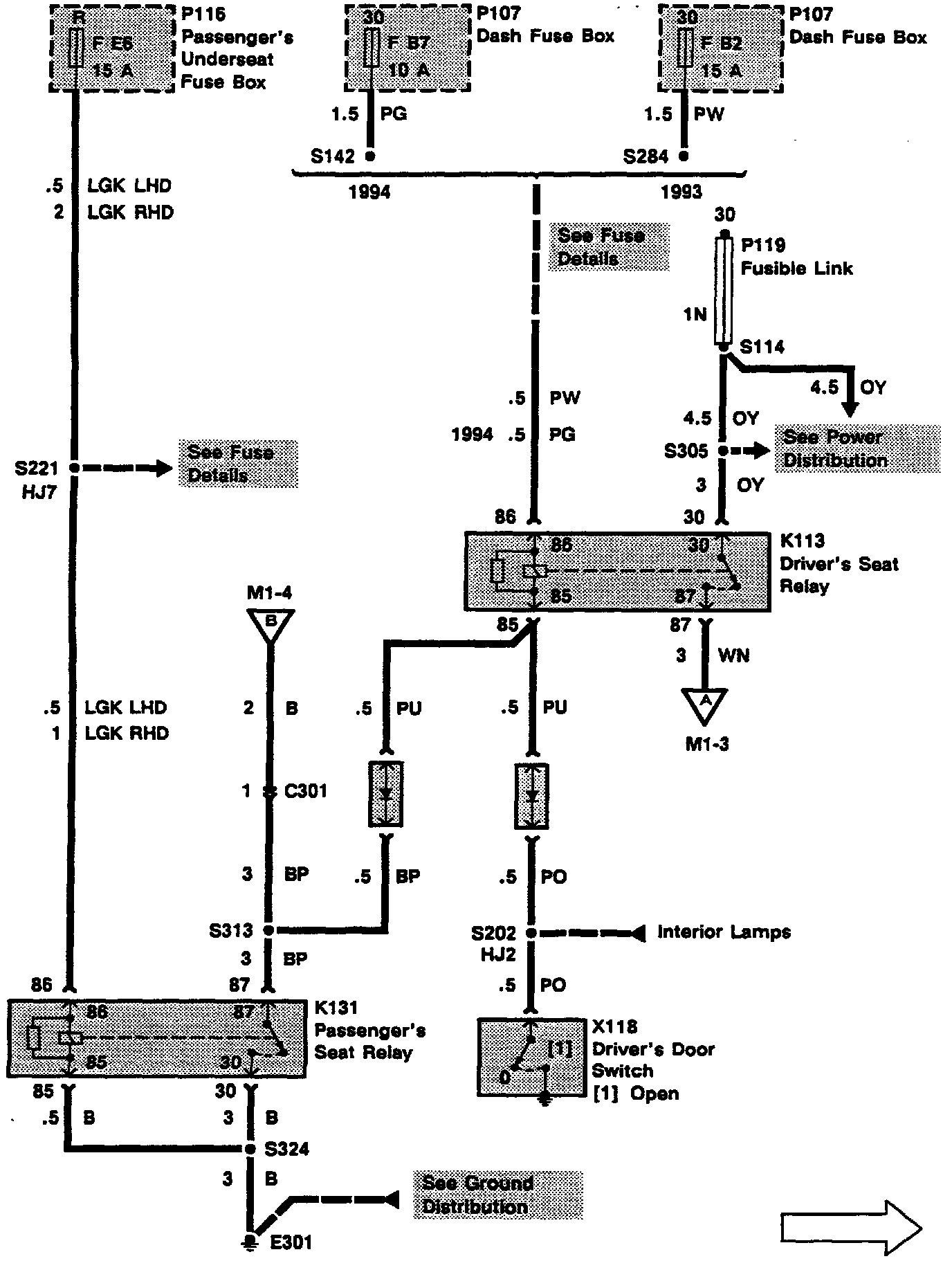

Power Seats
Power Seats
M1-2:
M1-3:
M1-4:
