Home >> Land Rover >> 1994 >> Range Rover County LWB (LH) V8-4.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Condenser Fan

Condenser Fan

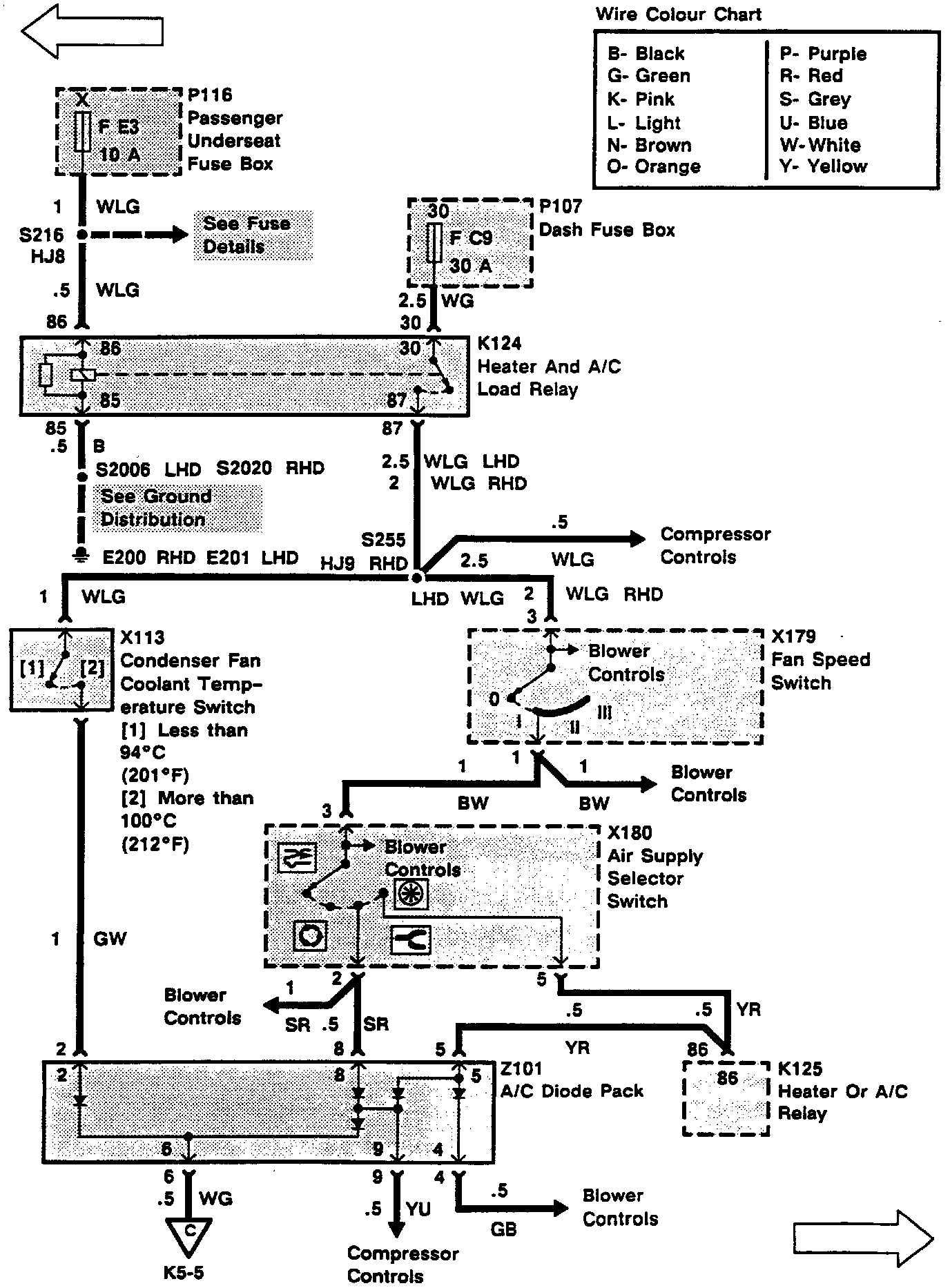

K5-3:

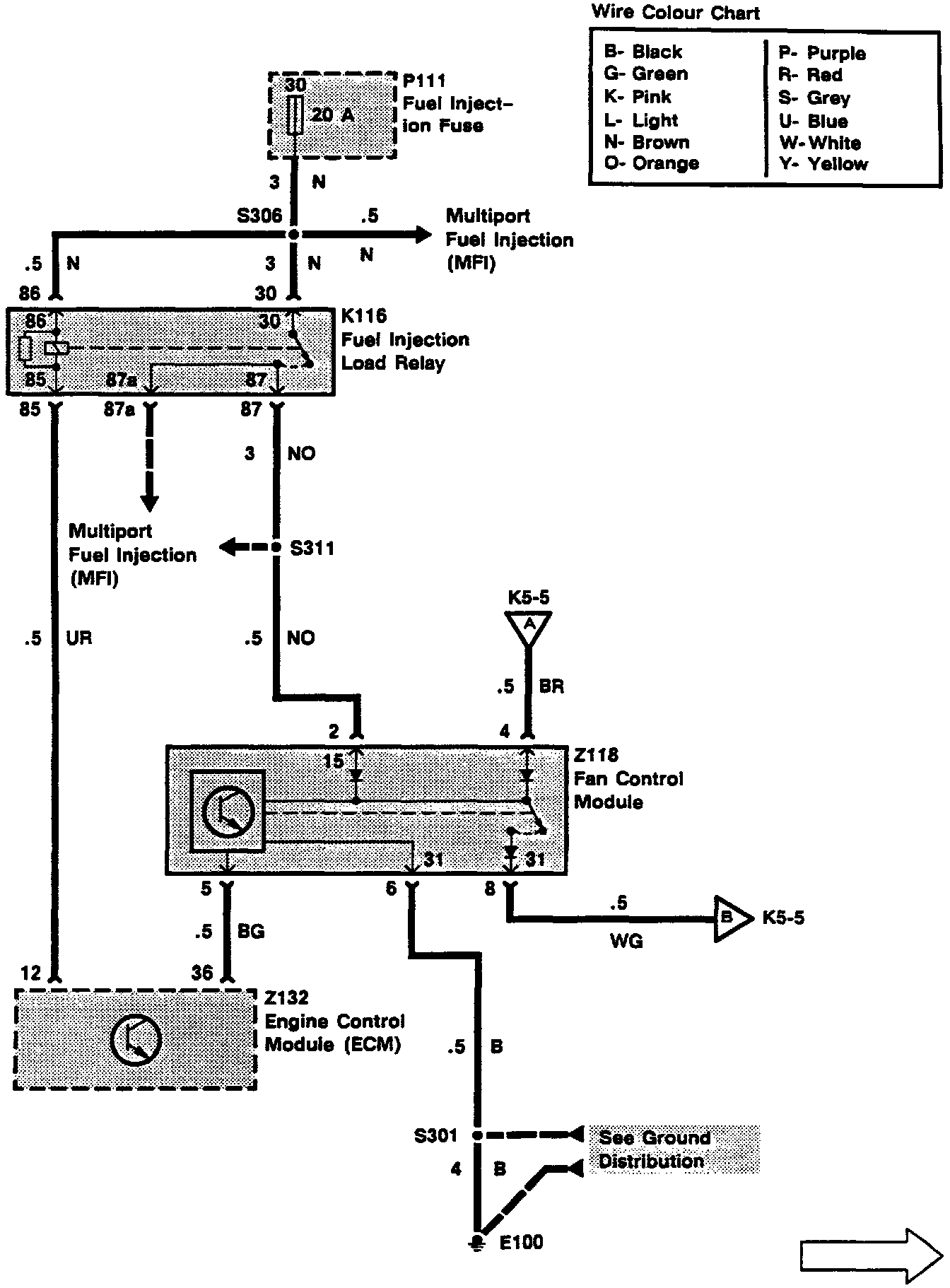

K5-4:

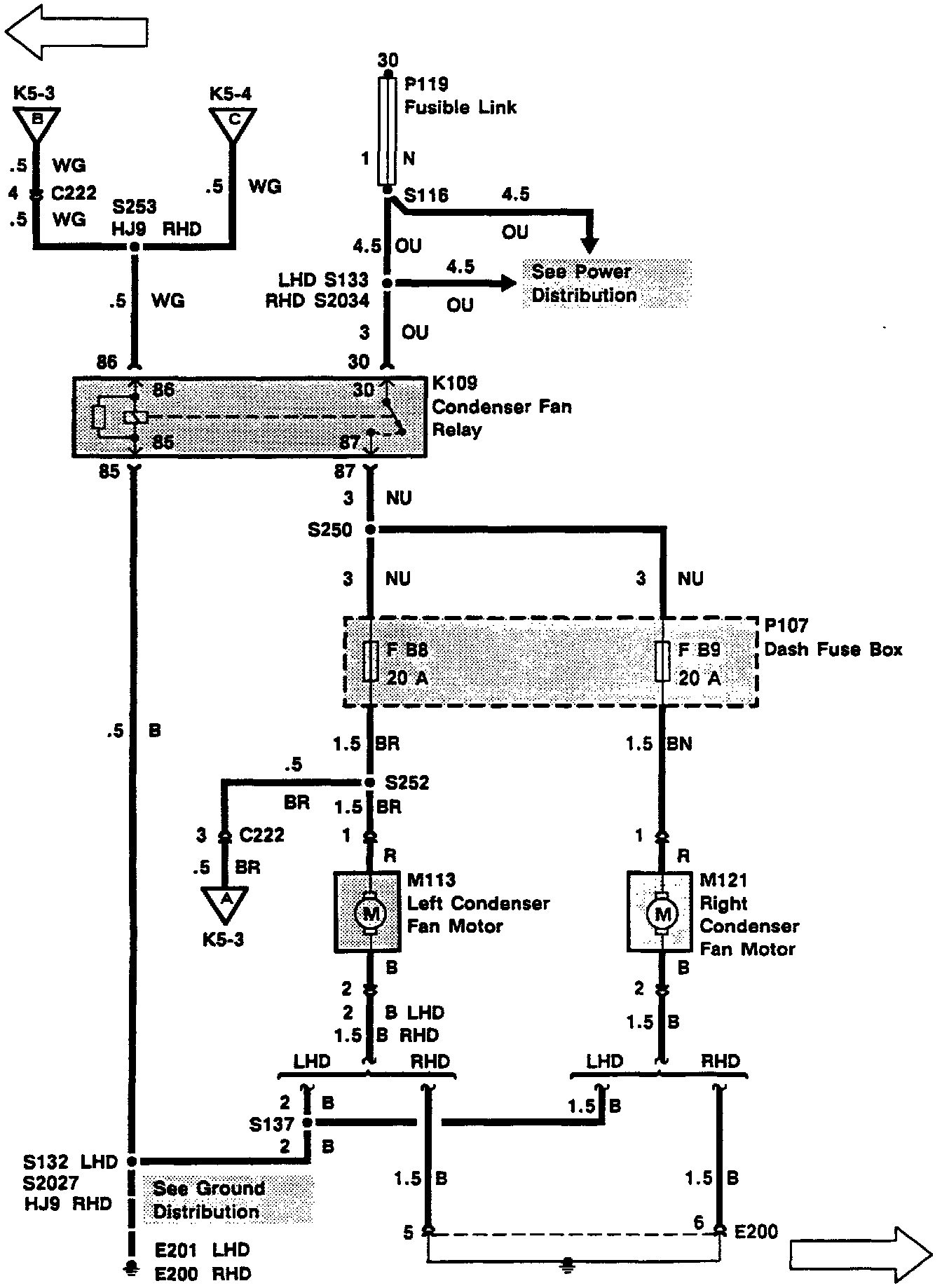

K5-5:
