Heated Glass Element
>>
System Diagram
>>
Heated Rear Screen and MIrror Demisters
Heated Rear Screen and MIrror Demisters
Heated Rear Screen and Mirror Demisters

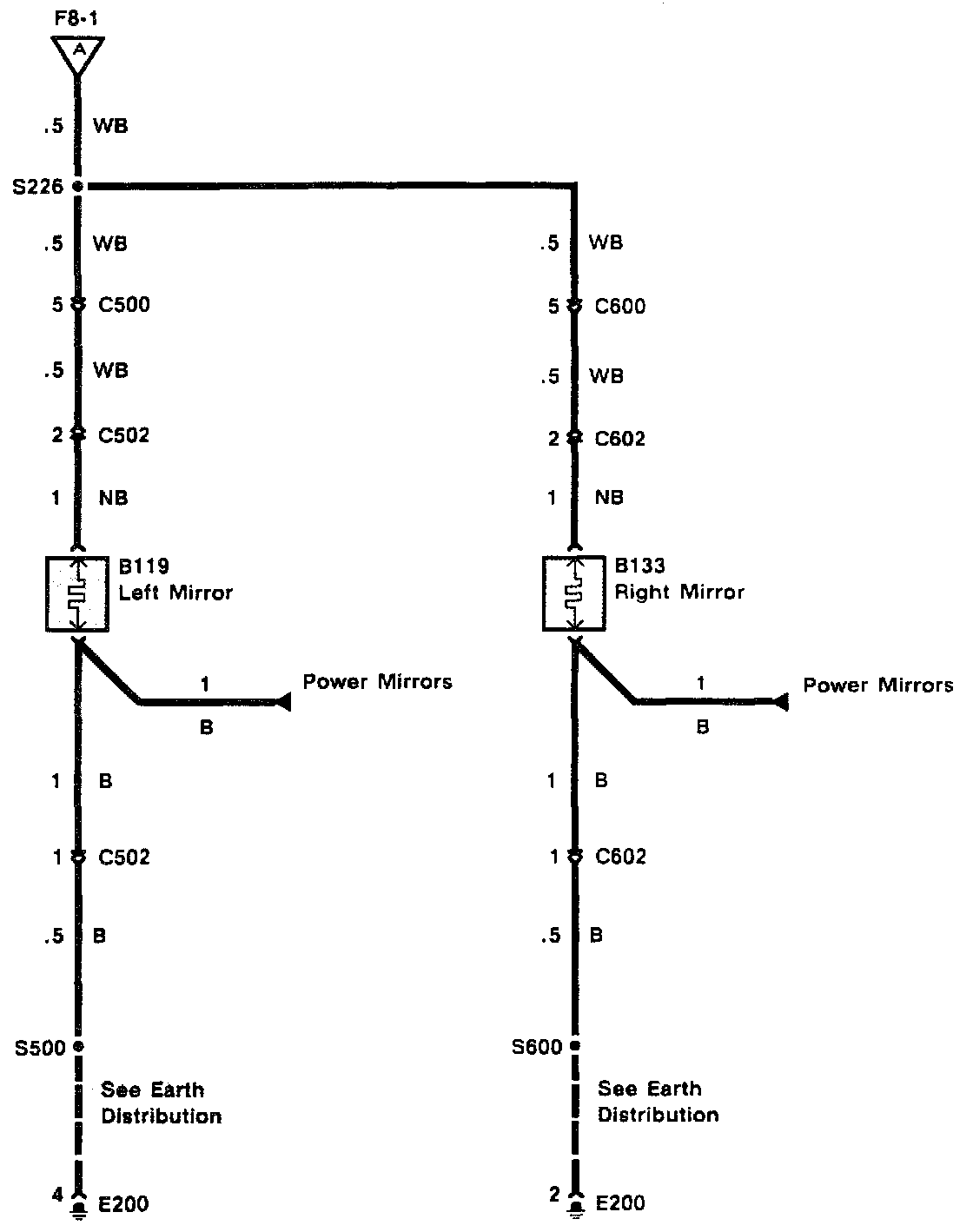

Heated Rear Screen And Mirror Demisters (F8-1):

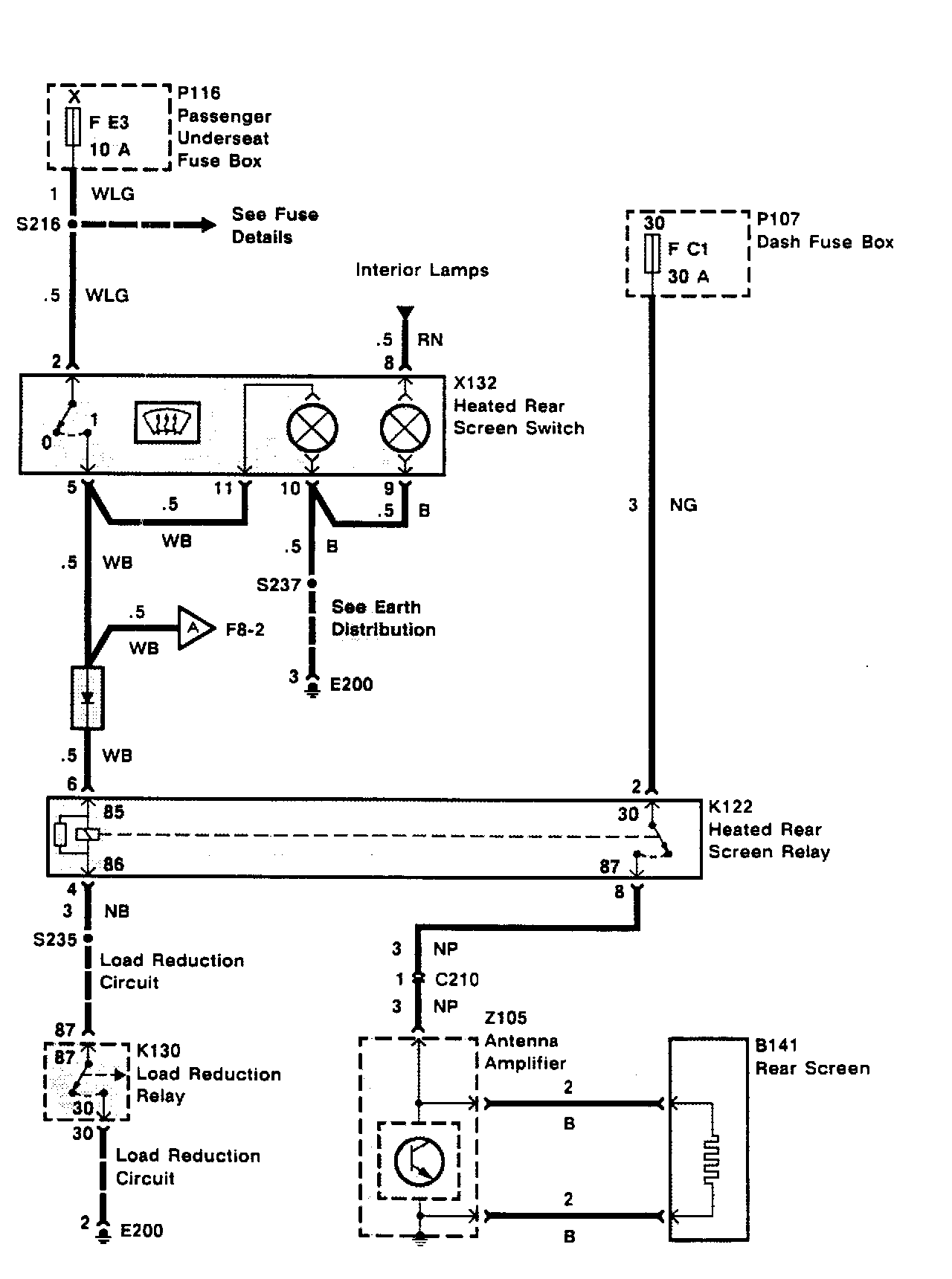

Heated Rear Screen And Mirror Demisters (F8-2):
