Radio Housing

Radio Housing

Remove

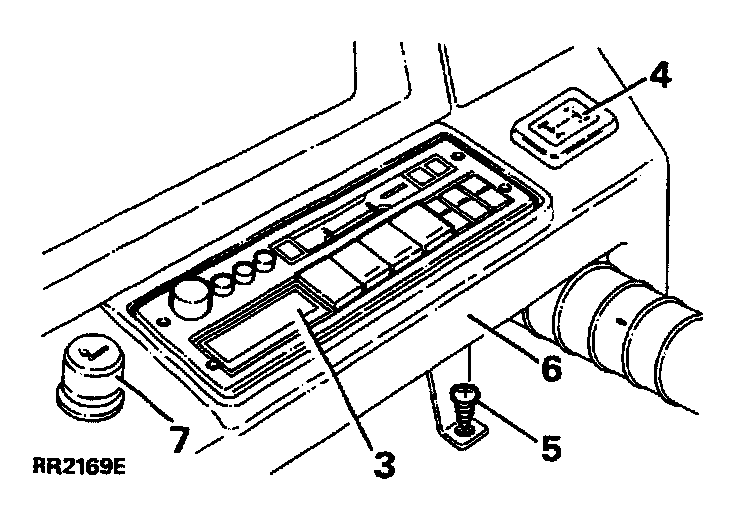

1. Disconnect the battery negative lead.
2. Remove console assembly.
3. Remove radio from housing. (See Radio Manufacturer's instructions for removal and installation.)



4. Where applicable remove switches and disconnect electrical leads.
5. Remove screw securing housing to tunnel.
6. Tilt front of housing upwards to access cigar lighter electrical leads.
7. Disconnect leads from cigar lighter and remove radio housing.

Refit

8. Reverse removal instructions.
