Rear Window Washer Jet

Rear Window Washer Jet

Service Repair No - 84.30.09

Remove
1. Turn washer jet in a clockwise direction to release it from the rear quarter panel.
2. Remove rear quarter/speaker trim panel.

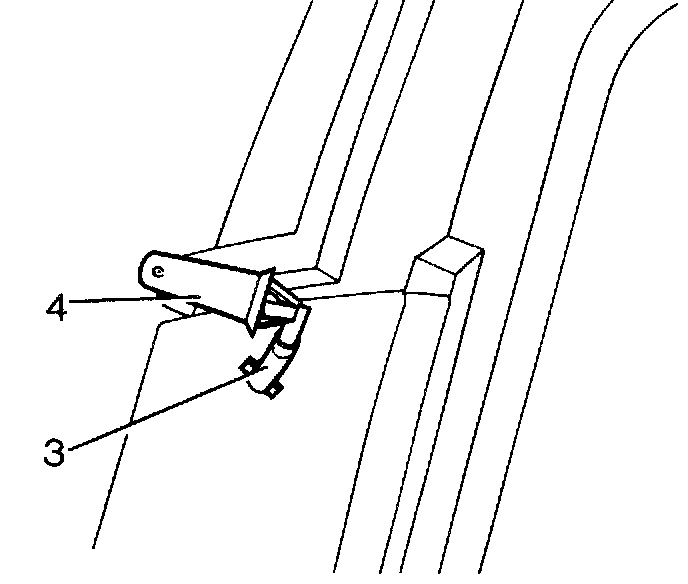

3. Feed washer tubing through rear quarter panel to allow removal of washer jet.
4. Remove washer jet from tubing.

Refit
5. Reverse removal procedure. 1 to 4.

NOTE: The tubing run from the reservoir to rear door washer jet differs between left and right hand drive vehicles. On right hand vehicles the tubing run is on the left hand side of the roof. On left hand drive vehicles, the right side.
