Home
>>
Land Rover
>>
1994
>>
Discovery I (LJ) V8-3.9L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

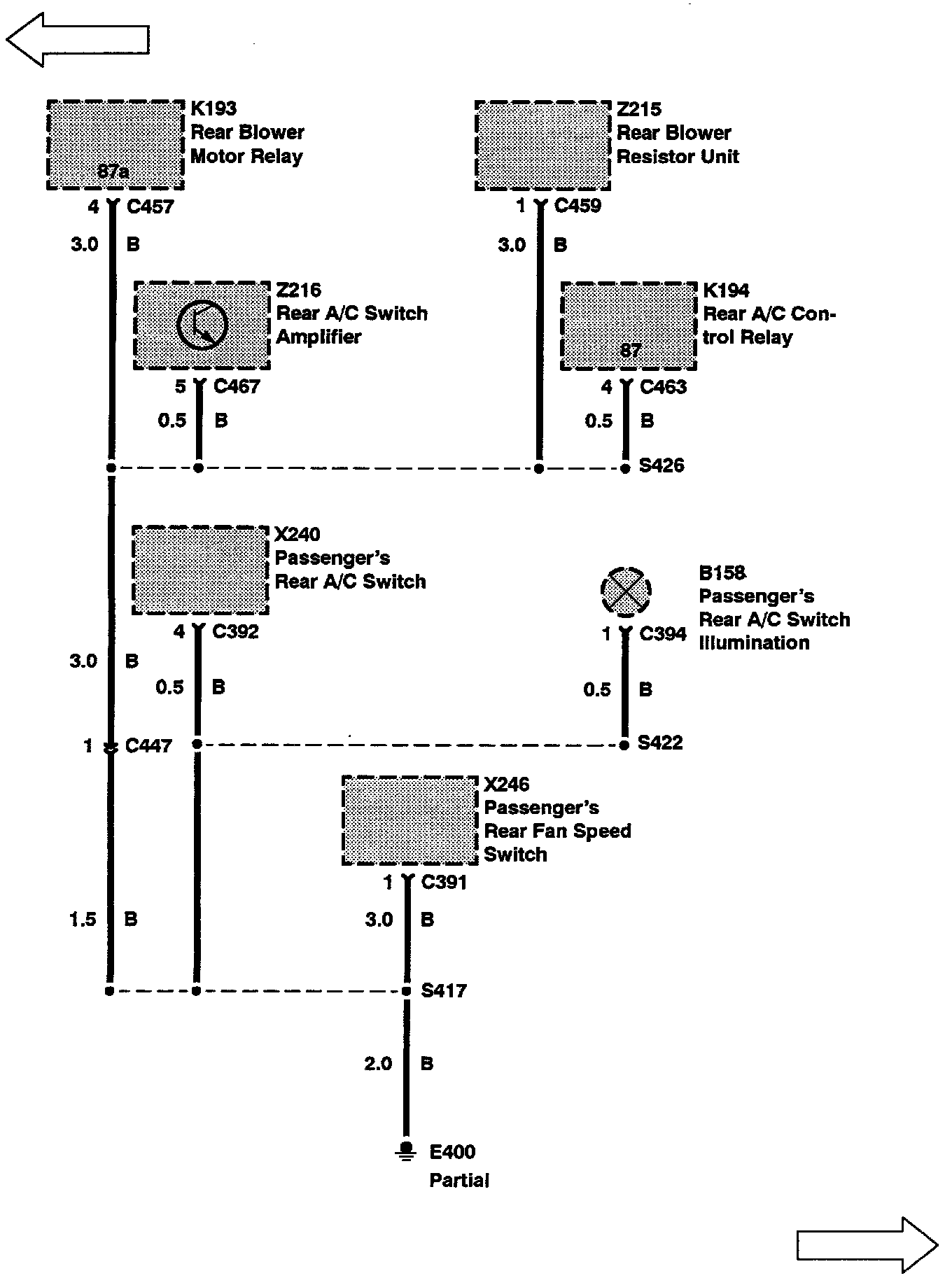

Splice Distribution
>>
S417
S417
Y5-38:
