Land Rover
>>
1994
>>
Discovery I (LJ) V8-3.9L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

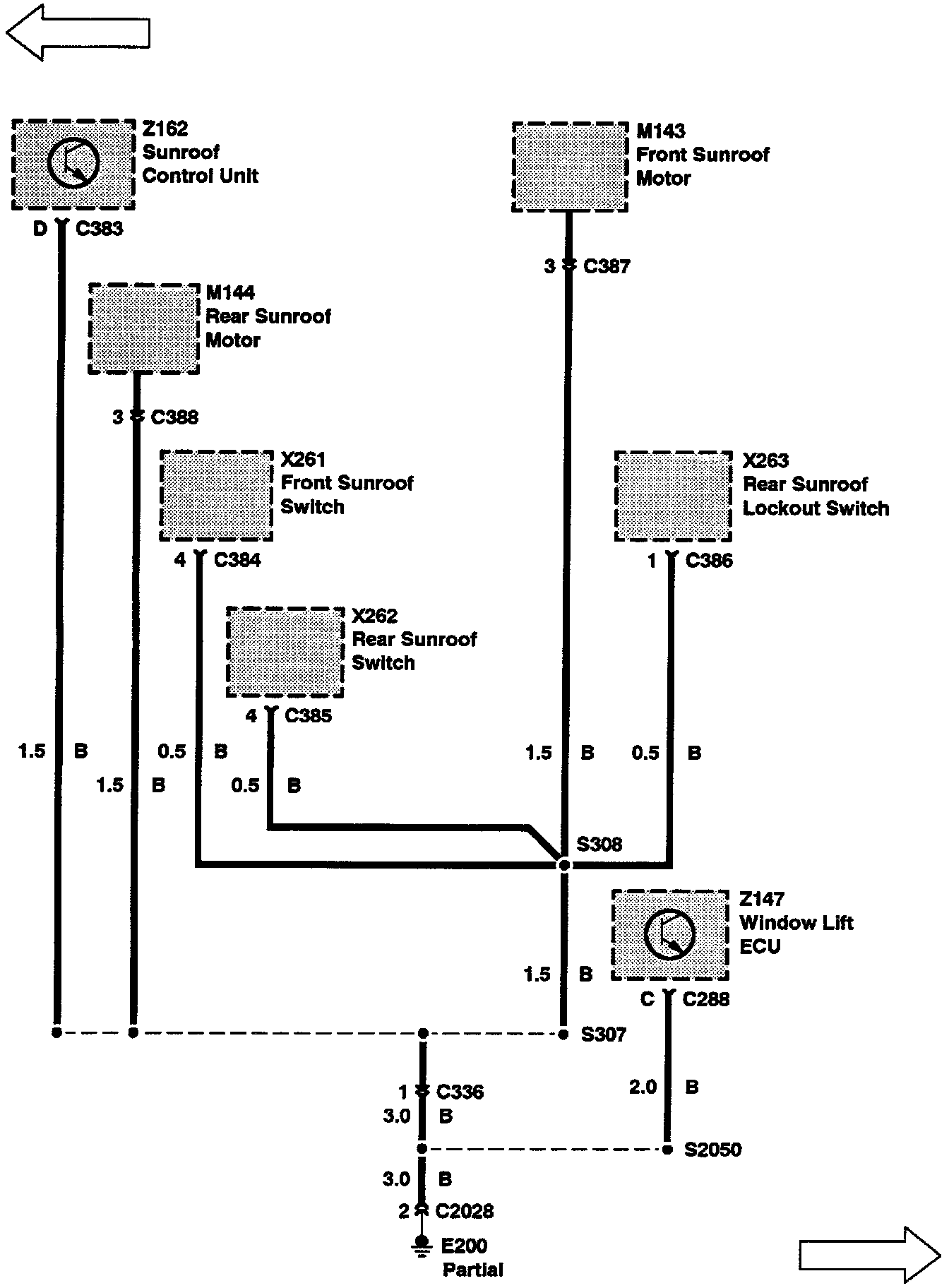

Splice Distribution
>>
S307
S307
Y5-12:
