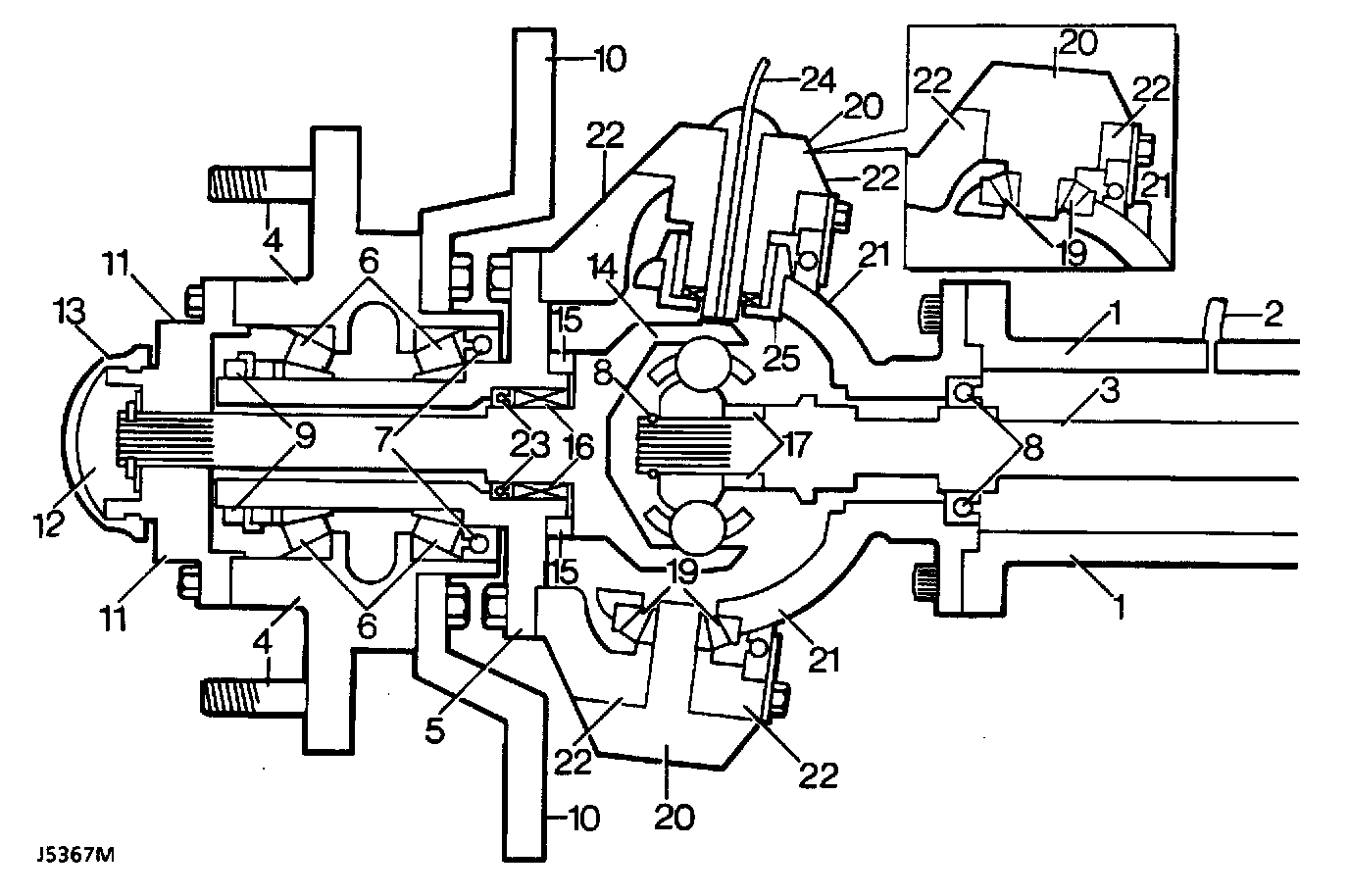

Wheel Hub

Front axle






1. Axle casing
2. Ventilation pipe
3. Axle shaft
4. Wheel studs and hub
5. Stub axle
6. Wheel bearings (2)
7. Inner and outer hub seals
8. Axle shaft seal
9. Hub lock plate, thrust washer and nuts (2)
10. Brakedisc
11. Driveflange
12. Shim washer and cirdip
13. Dust cap
14. Constant velocity join~shatt
15. Thrust collar for CV joint
16. Roller bearing
17. Spacer
18. Circlip
19. Bottom swivel taper bearing
20. Top and bottom swivel pins
21. Spherical housing, seal and retainer
22. Swivel housing
23. Constant velocity shaft seal
24. ABS pickup (electrical connection)
25. 'Rialco' bush ABS
