Home
>>
Land Rover
>>
1994
>>
Discovery I (LJ) V8-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>

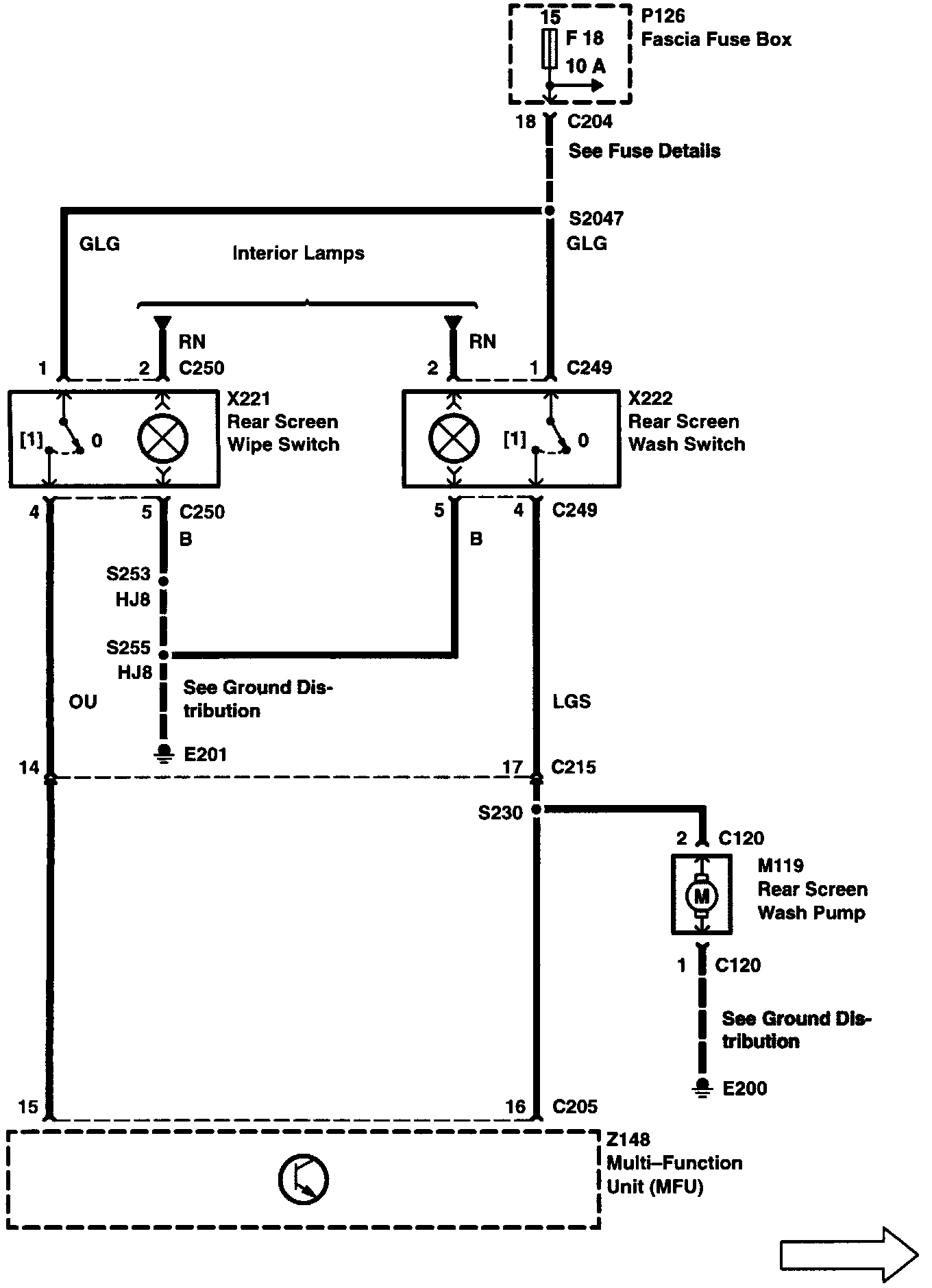

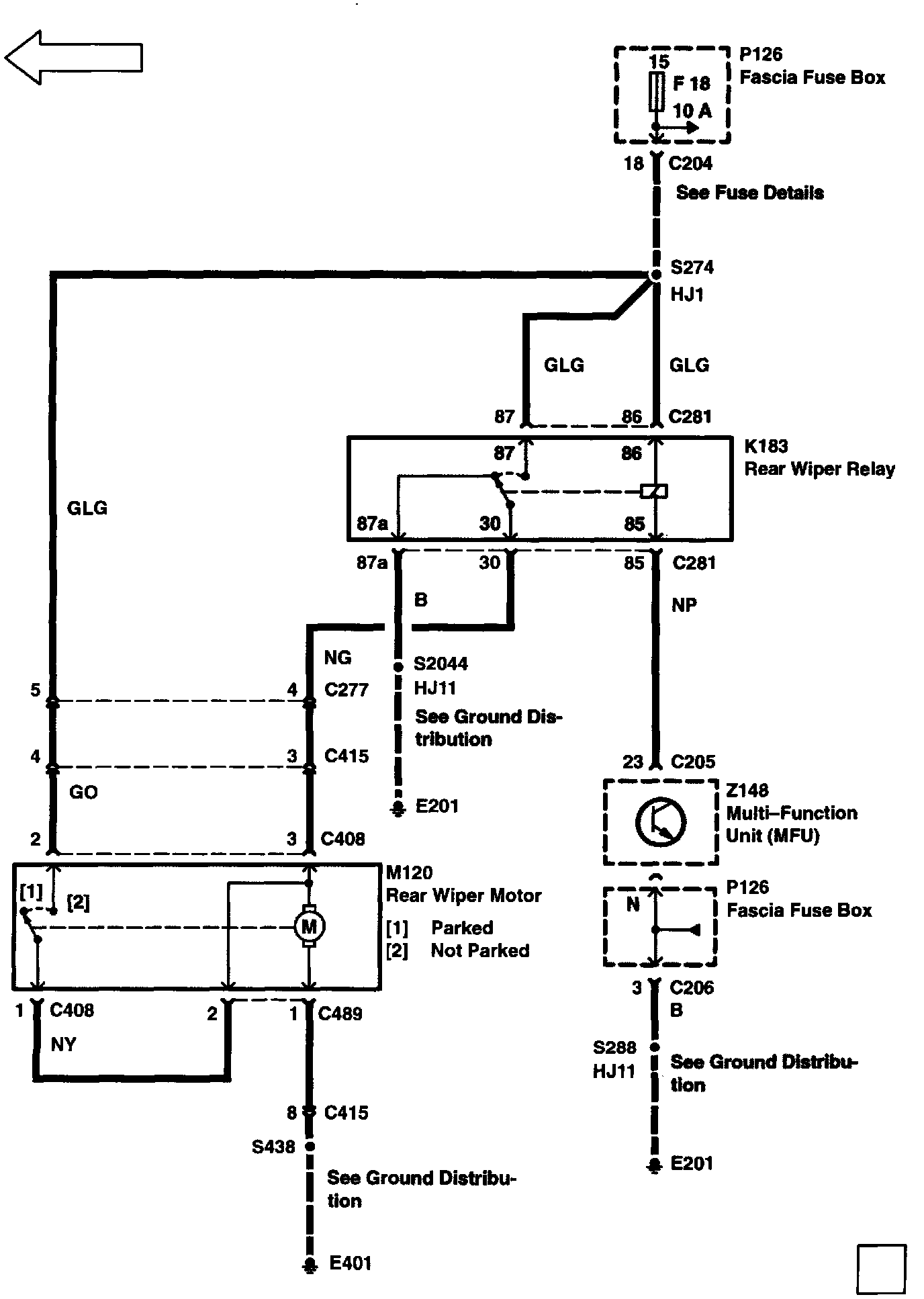

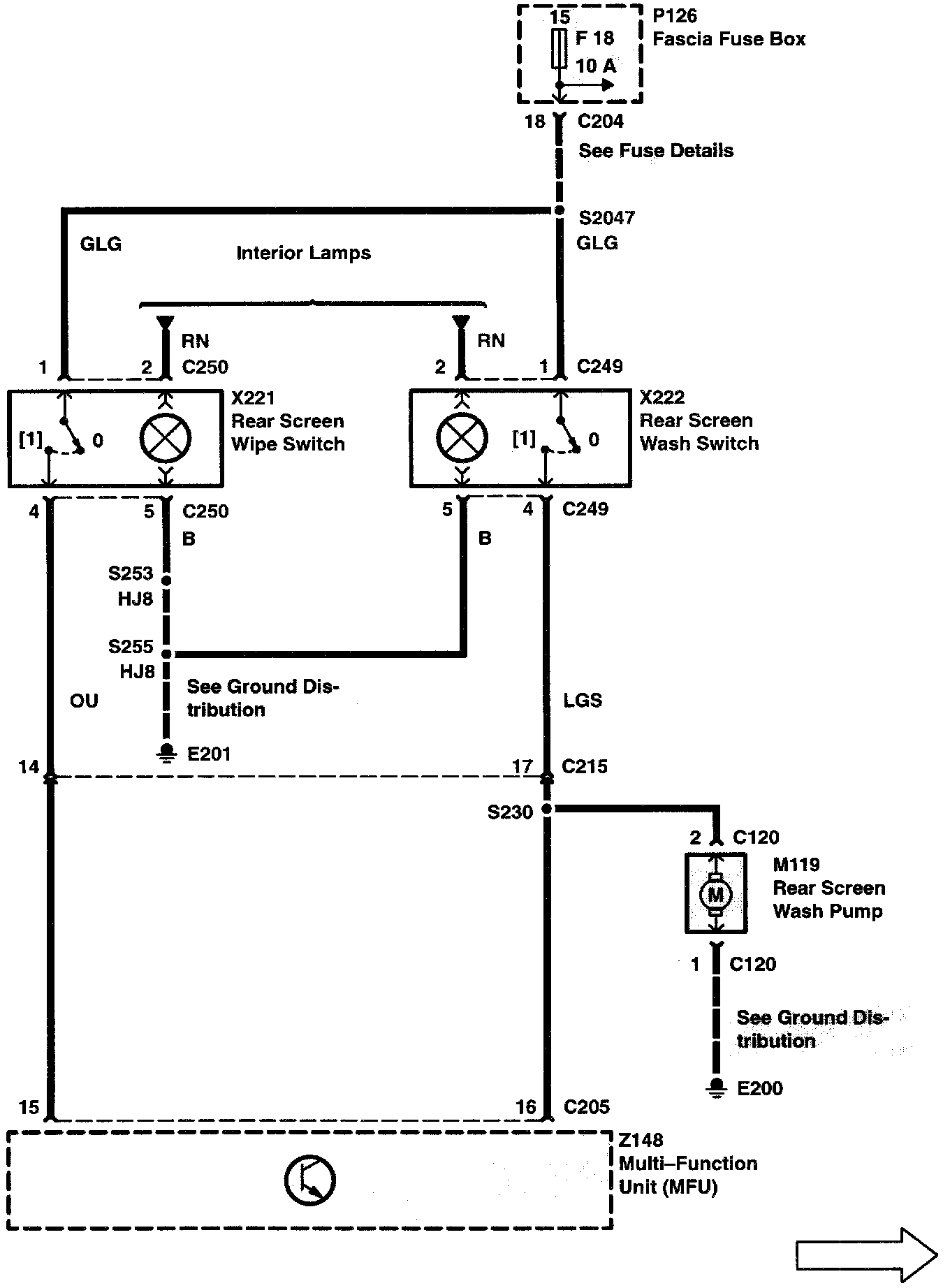

System Diagram
>>
Rear
Rear
F3-2:
F3-3:
F3-2:
F3-3:
