Home >> Land Rover >> 1994 >> Discovery I (LJ) V8-3.9L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Sunroof / Moonroof

Sunroof / Moonroof

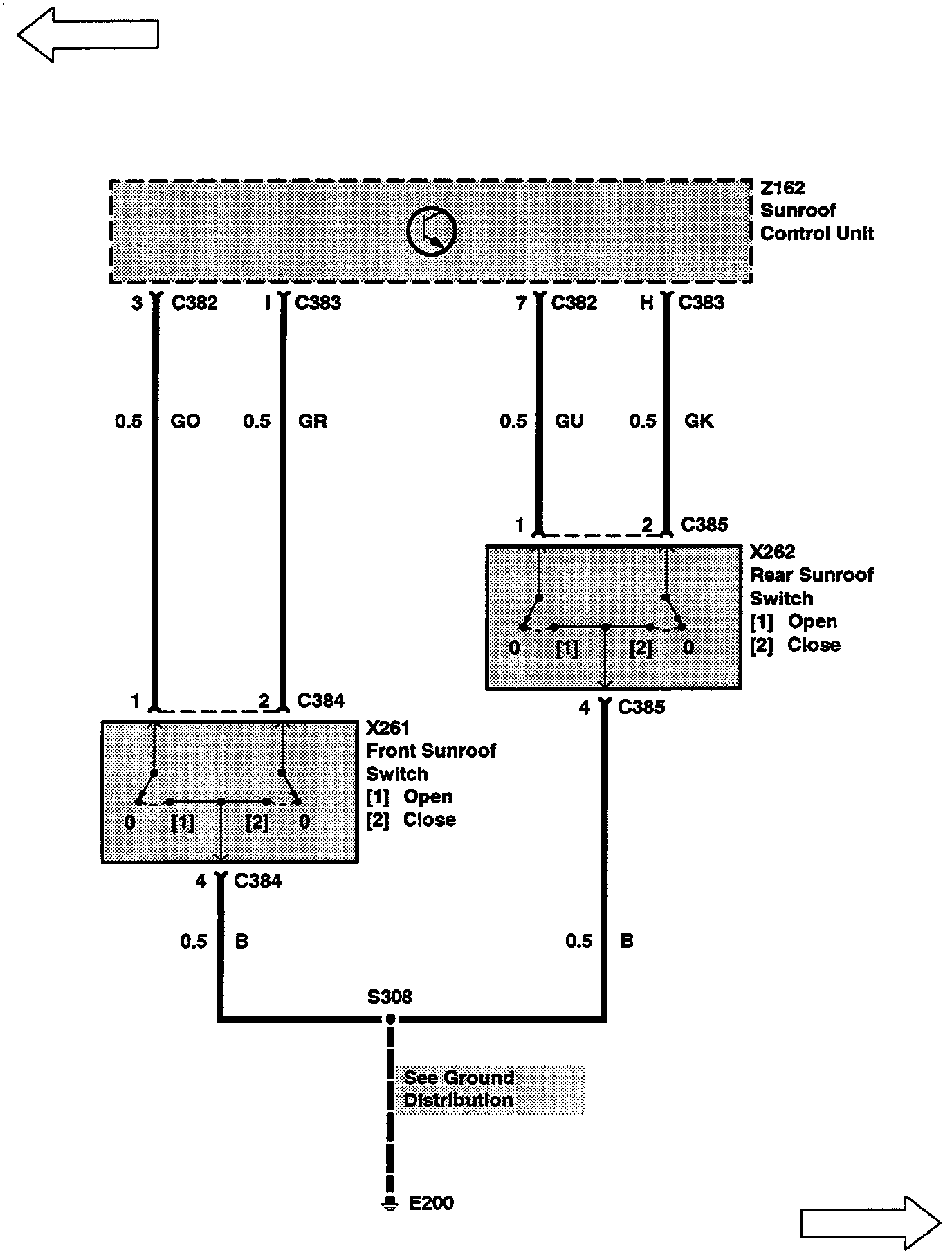

L4-1:

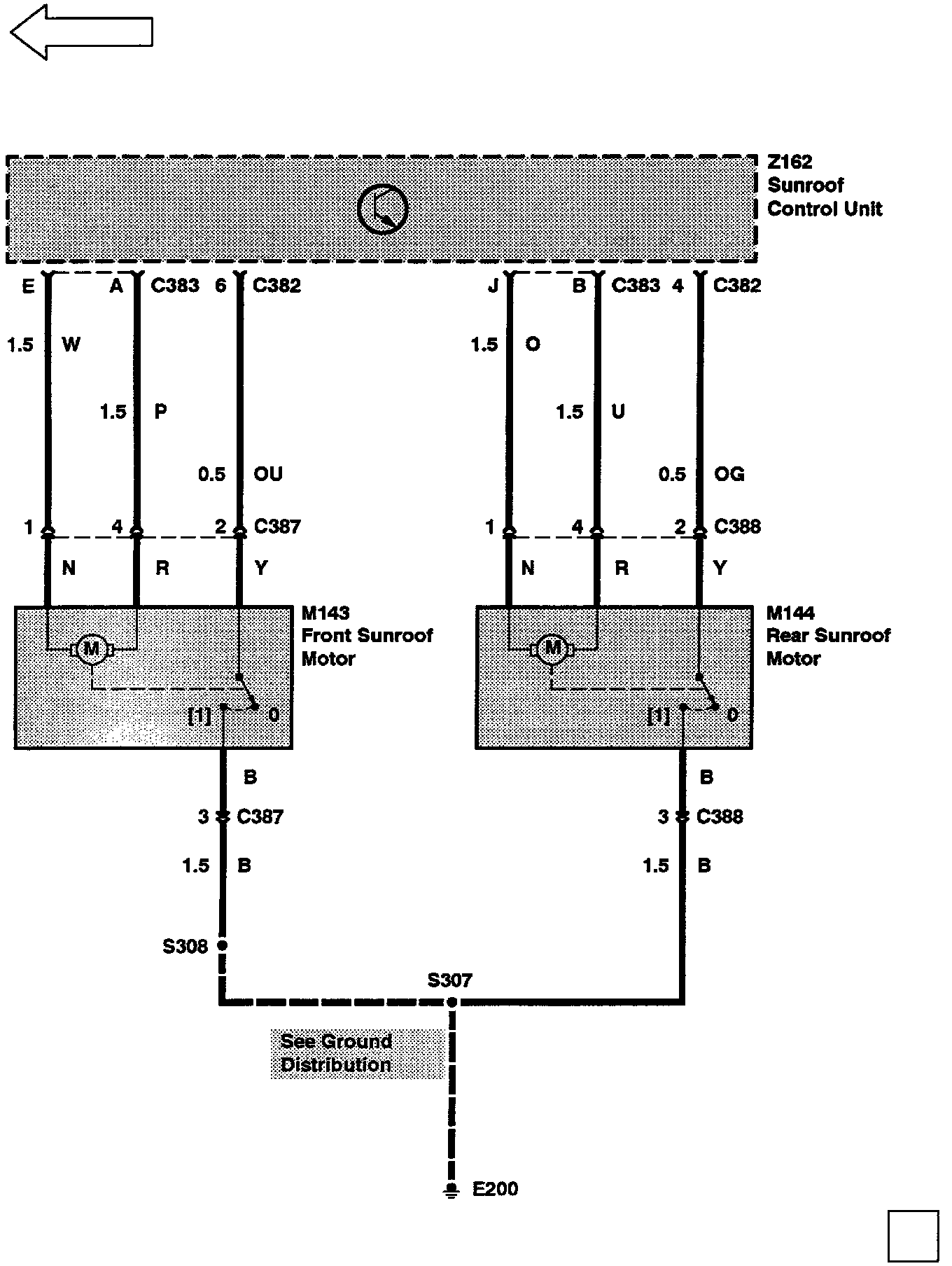

L4-2:

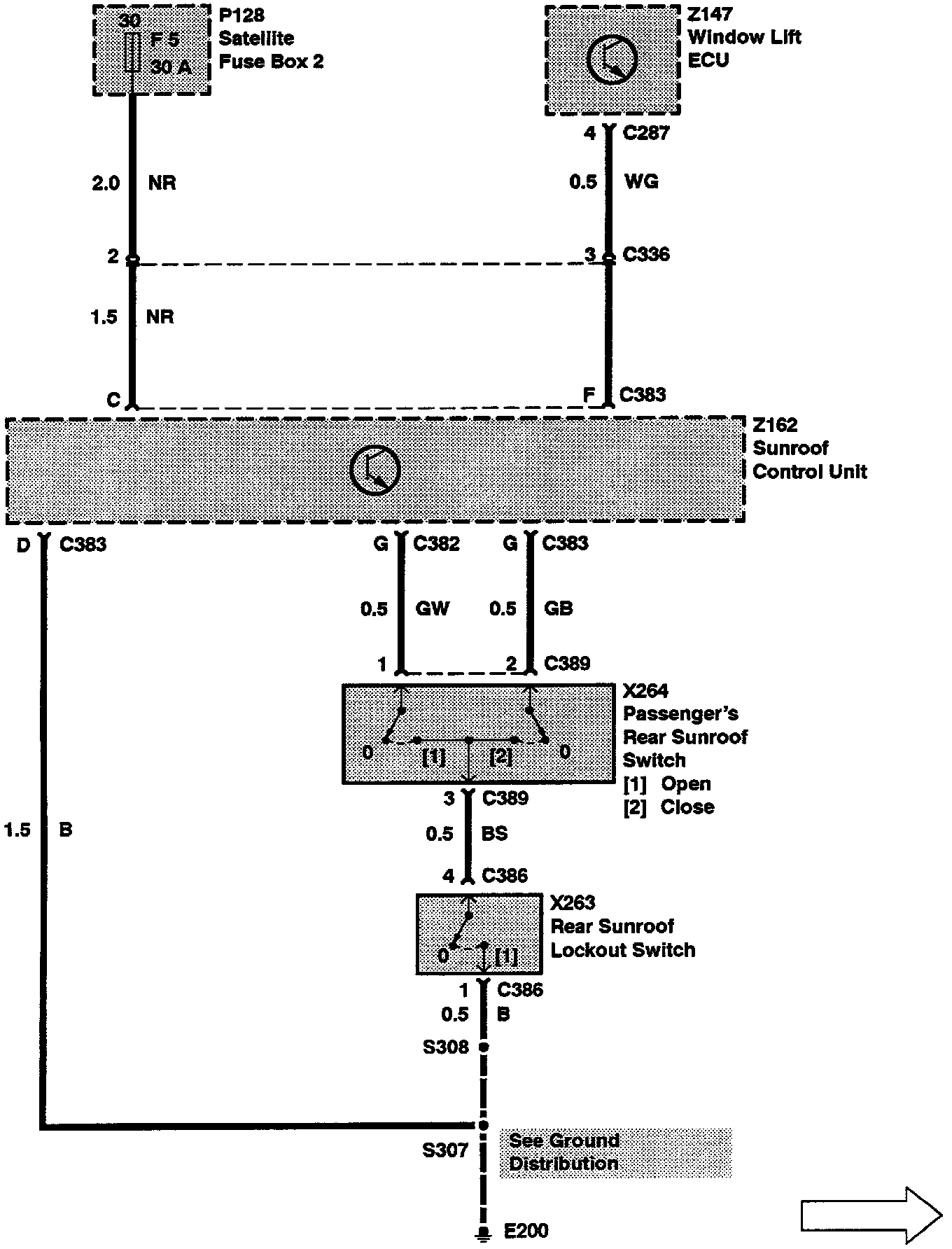

L4-3:
