Discovery I (LJ) V8-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Mirrors
>>
System Diagram
>>

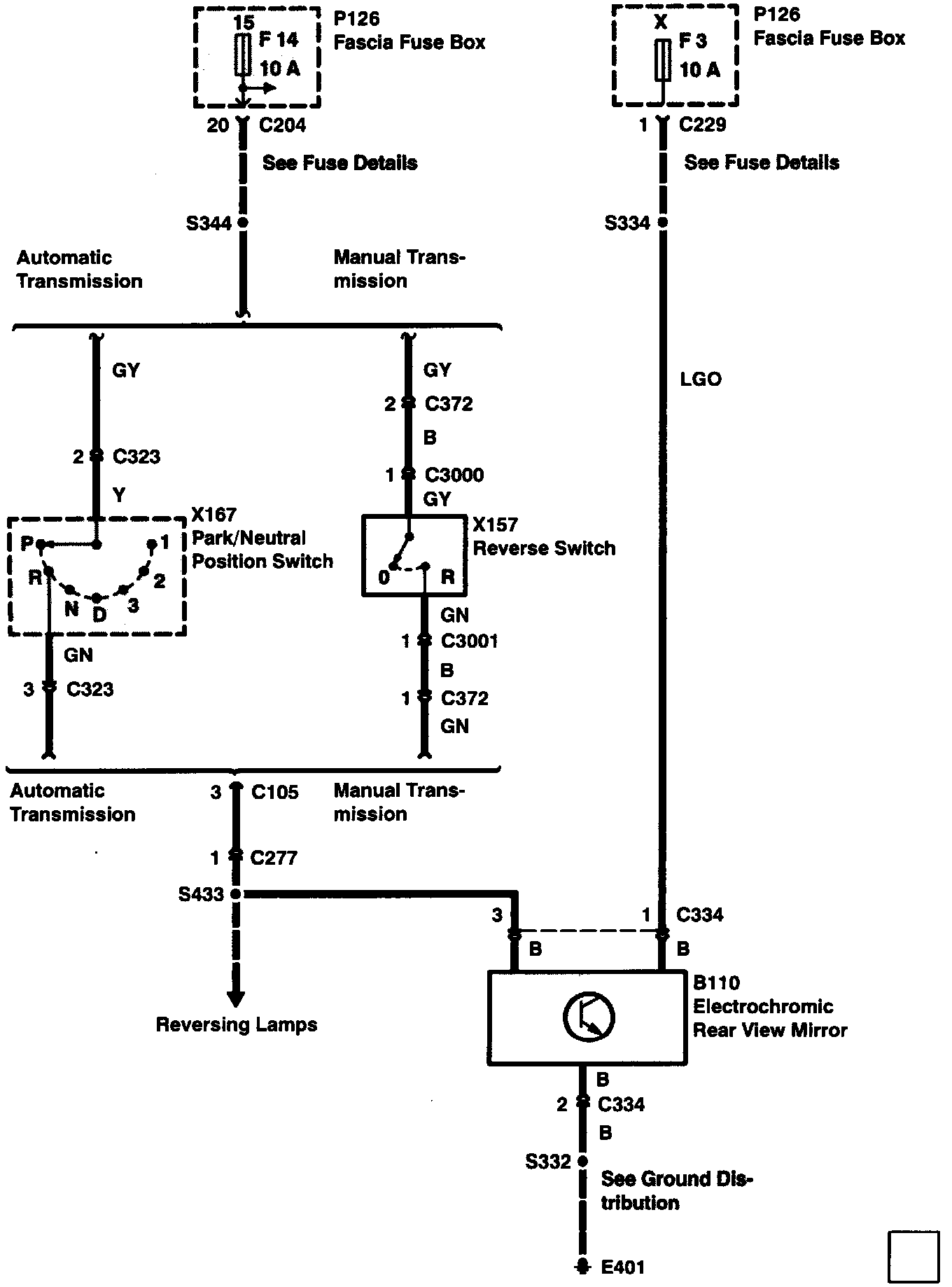

Electronic Rear View Mirror
Electronic Rear View Mirror
G1-1:
