Land Rover
>>
1994
>>
Discovery I (LJ) V8-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Mirrors
>>
System Diagram
>>

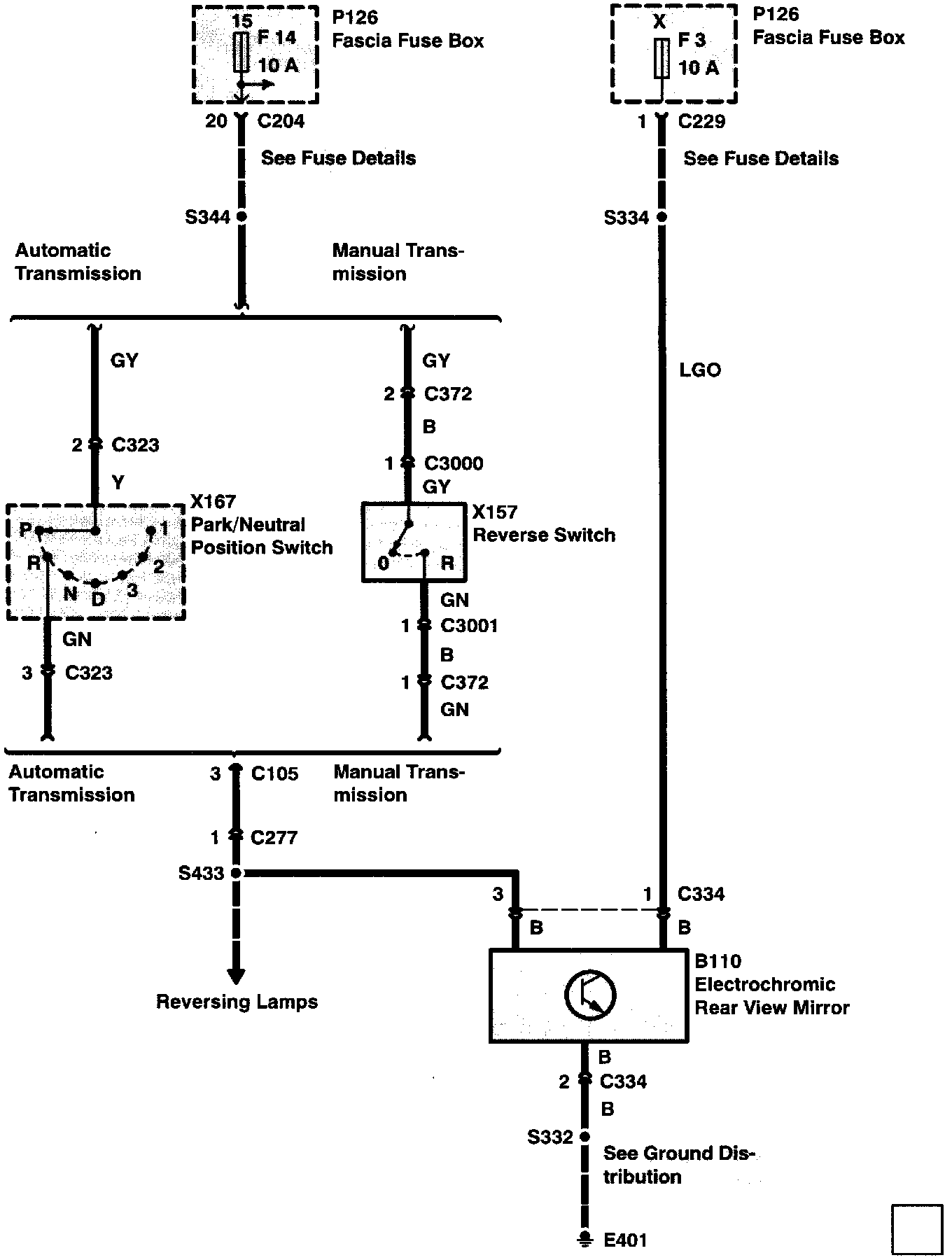

Electrochromic Interior Rear View Mirror
Electrochromic Interior Rear View Mirror
G1-1:
