Heated Glass Element
>>

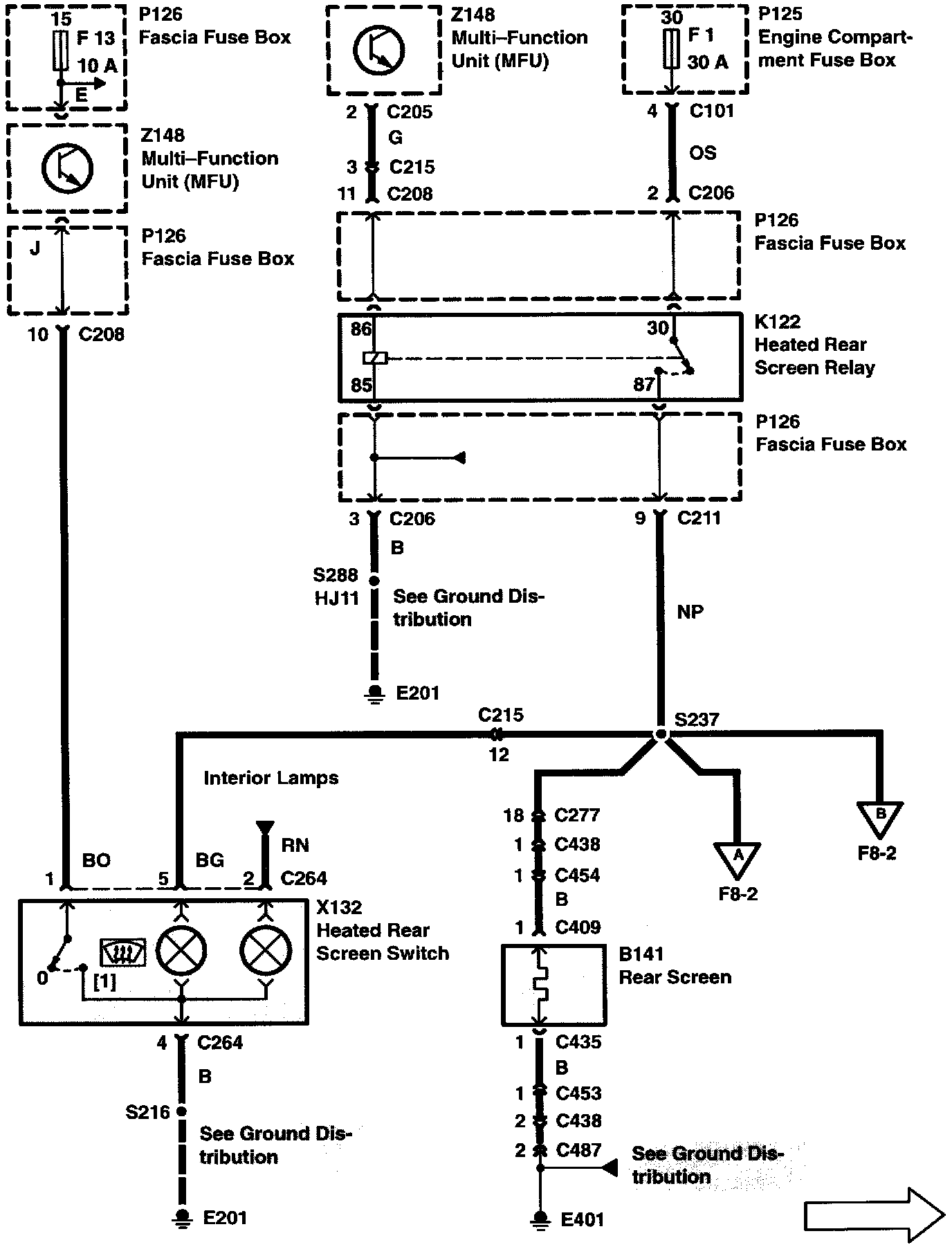

Heated Rear Screen
Heated Rear Screen

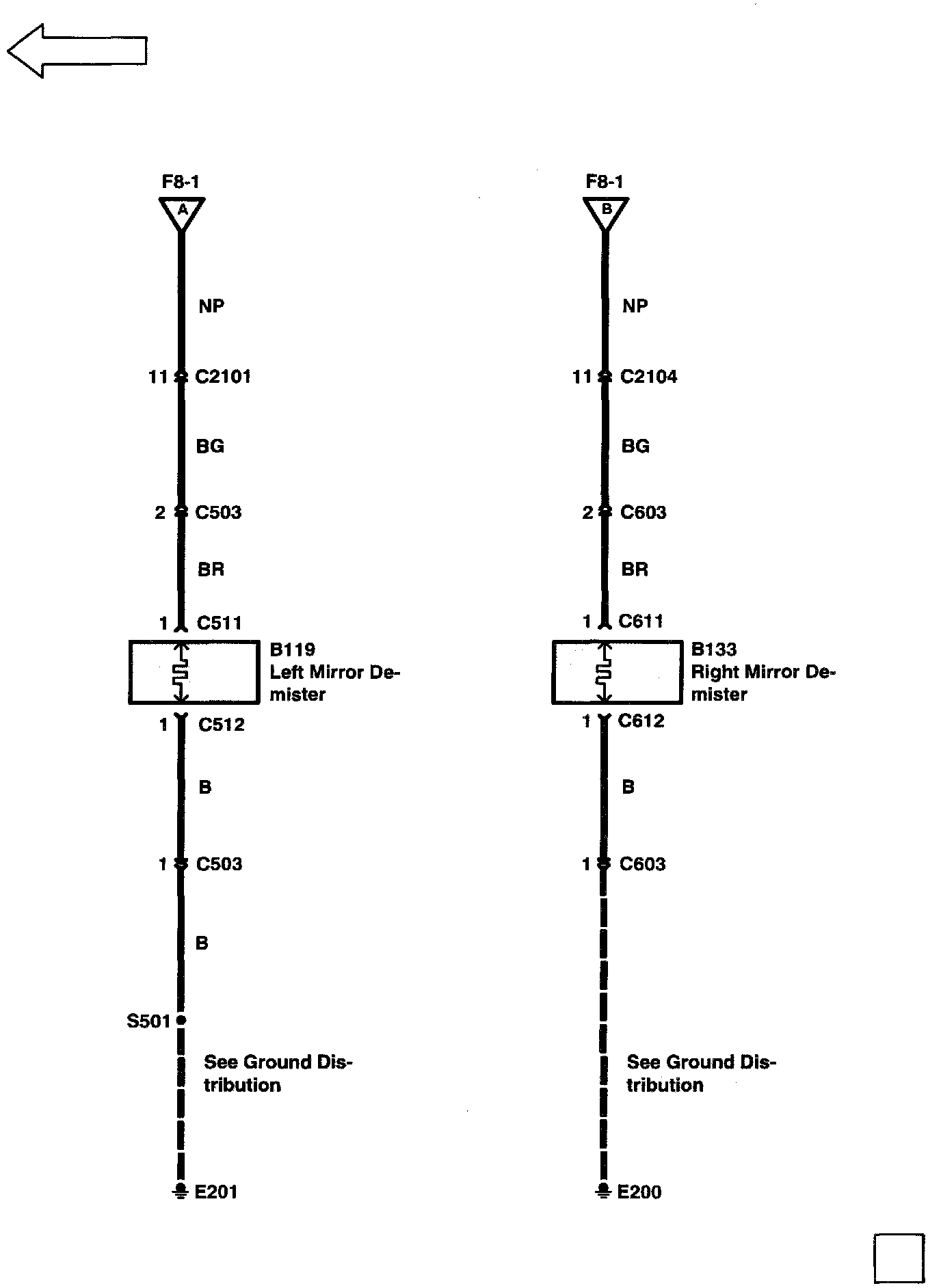

Mirror Demisters F8-1:
Mirror Demisters F8-2:
