Home >> Land Rover >> 1994 >> Discovery I (LJ) V8-3.9L >> Repair and Diagnosis >> Diagrams >> Components >> Relays >> Blower Motor Relay, Front (K192)

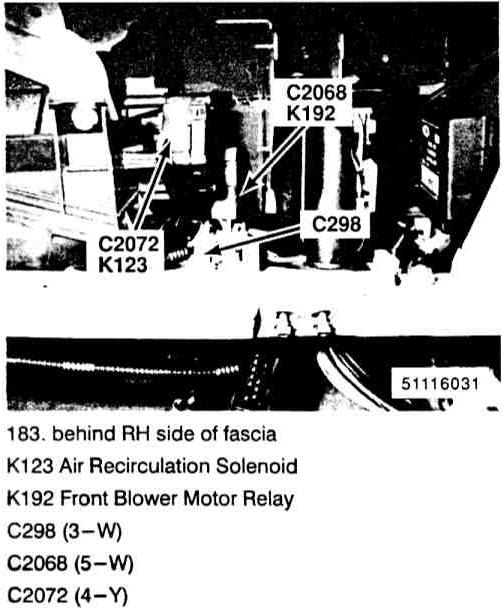

Blower Motor Relay, Front (K192)




Behind RH Side Of Fascia Right Of Heater Evaporator Unit
