Brakes and Traction Control: Diagrams

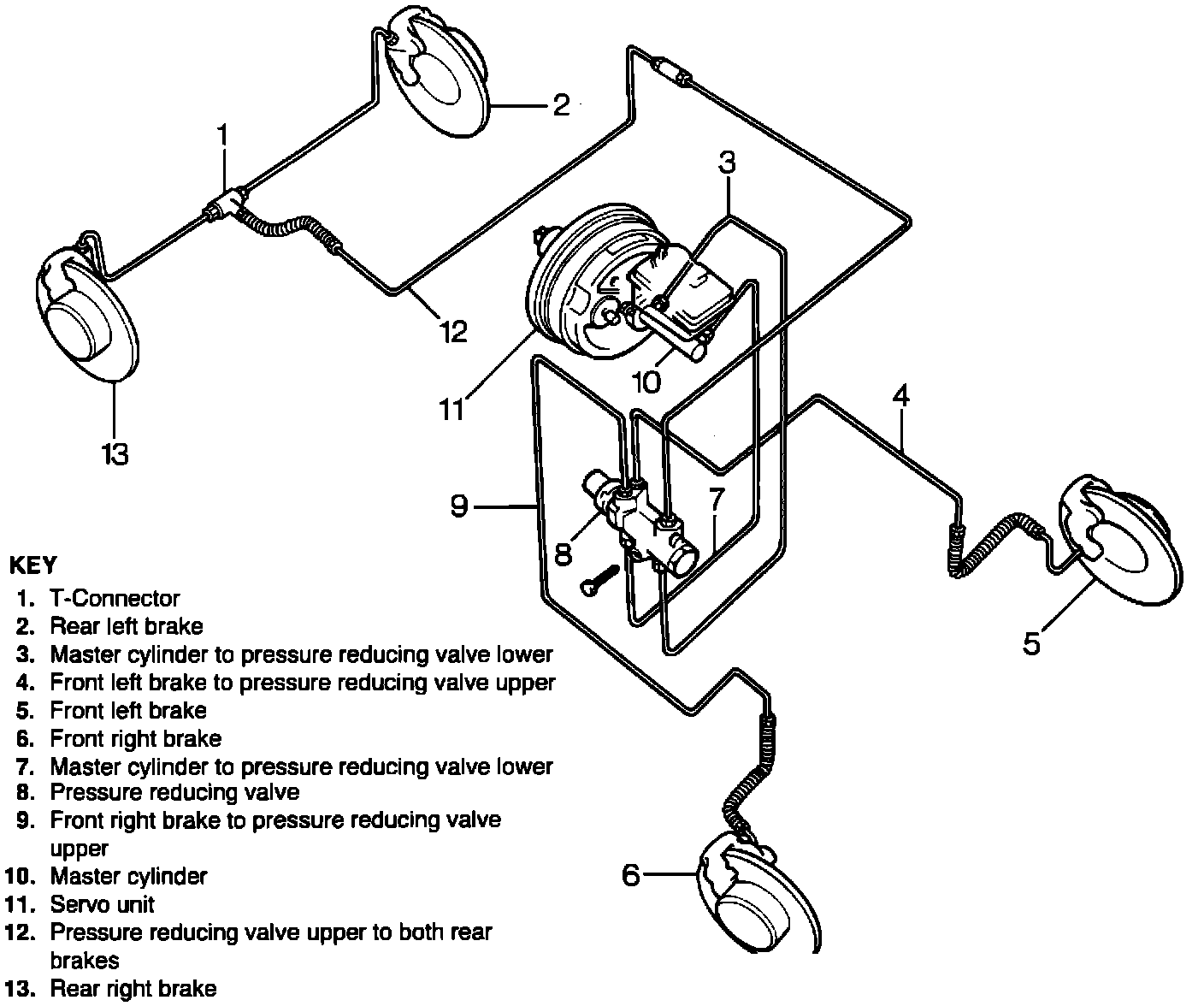

Brake Hydraulic Circuit - Not ABS:
Hydraulic Circuit - Non ABS:
