Seat Squab - Rear

Seat Squab - Rear

Remove
1. Fold the rear seat down.

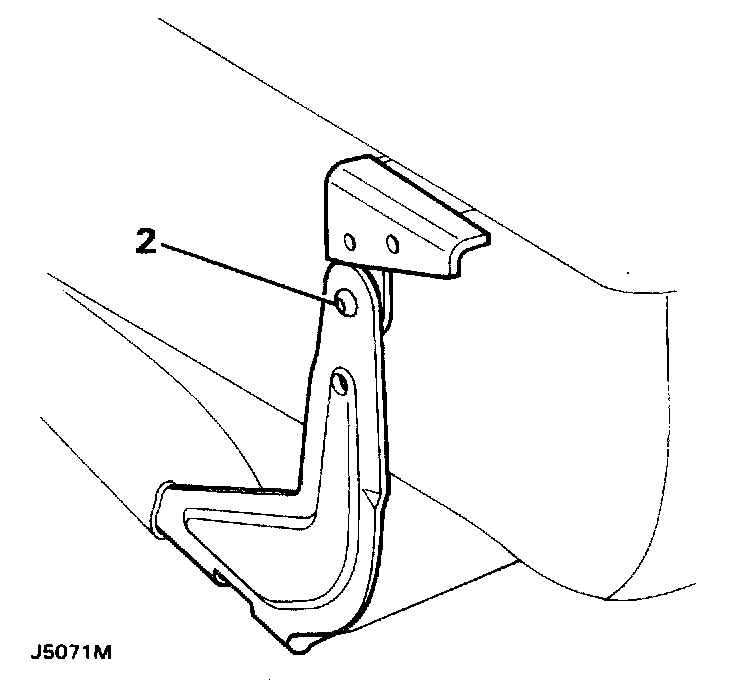

2. Remove the two seat squab securing bolts.
3. Withdraw the seat squab from the seat assembly.

Refit
4. Reverse removal procedure.
