Radio, Remove and Refit

Radio

Remove
1. Disconnect battery earth lead.

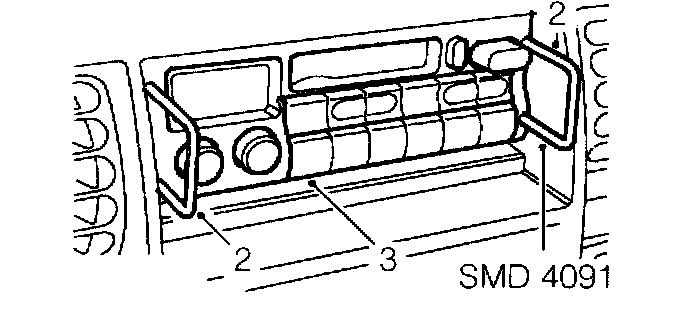

2. Insert removal tools SMD 4091 to radio.
3. Release radio and remove tools.

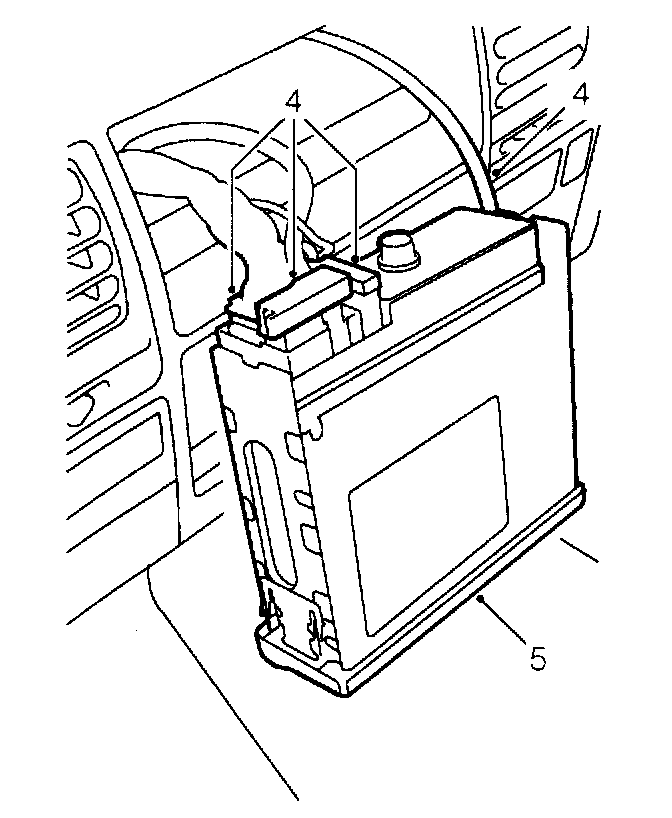

4. Disconnect aerial and multiplugs from radio.
5. Remove radio.


Refit
6. Position radio, connect multiplugs and aerial, and secure radio to fascia.
7. Connect battery earth lead.
8. Set radio code.
