Steering - Steering Gear R&R Procedure Change

No: LTB00028
Issue: 1
Date: 27 Feb 2007

SECTION:
211-02 - POWER STEERING

Procedure Change - Steering Gear Removal/Installation

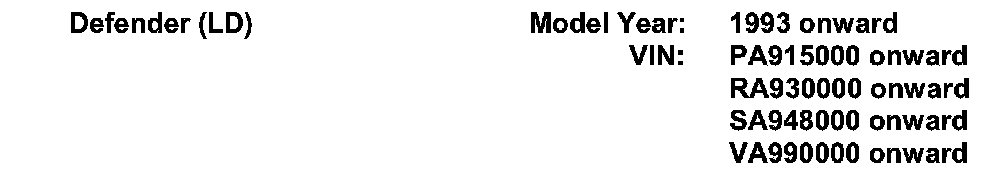

AFFECTED VEHICLE RANGE:

CONDITION SUMMARY:

PROCEDURE CHANGE TO REMOVE AND INSTALL A STEERING GEAR

Situation:
Land Rover engineers have studied the service process for removing and installing the steering gear assembly on Defender vehicles. Significant process changes have been made that refine and improve the process which allows the operation to be carried out in less time. Original service time allowed for Panhard Rod bushing removal and installation. The service time has been corrected to only allow for removal of the Pan hard Rod, not the bushings.














NOTE:
The relevant Workshop Manual Sections related to this Service Procedure will be updated at the next available opportunity.

Action:

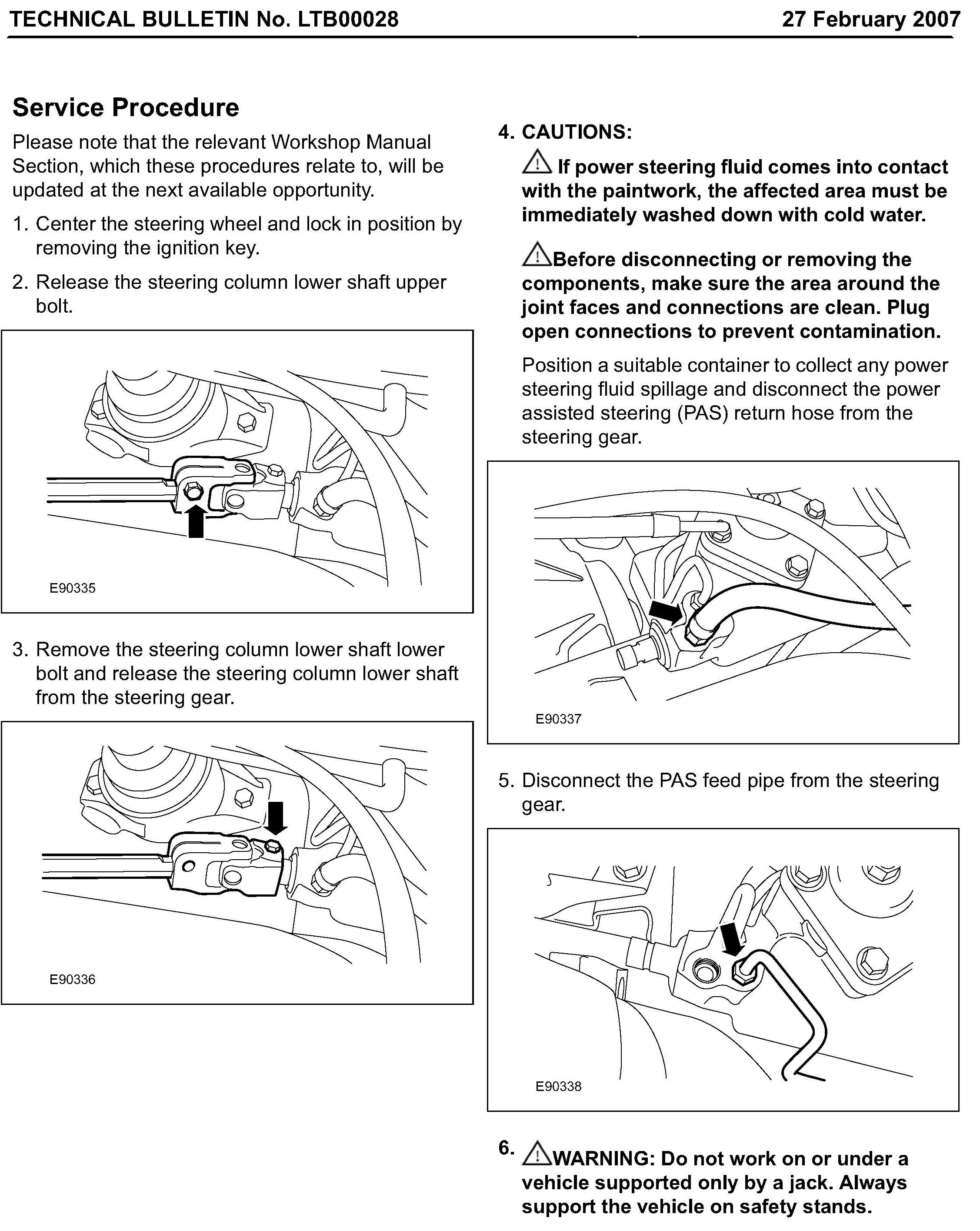

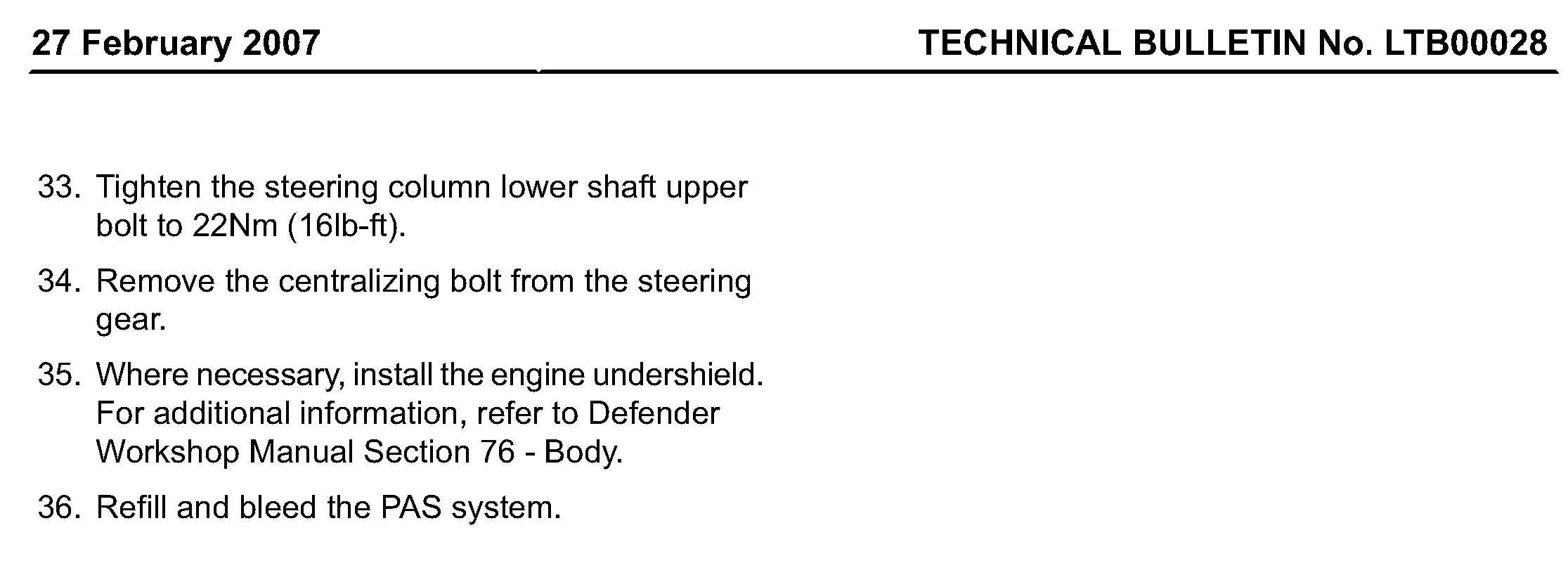

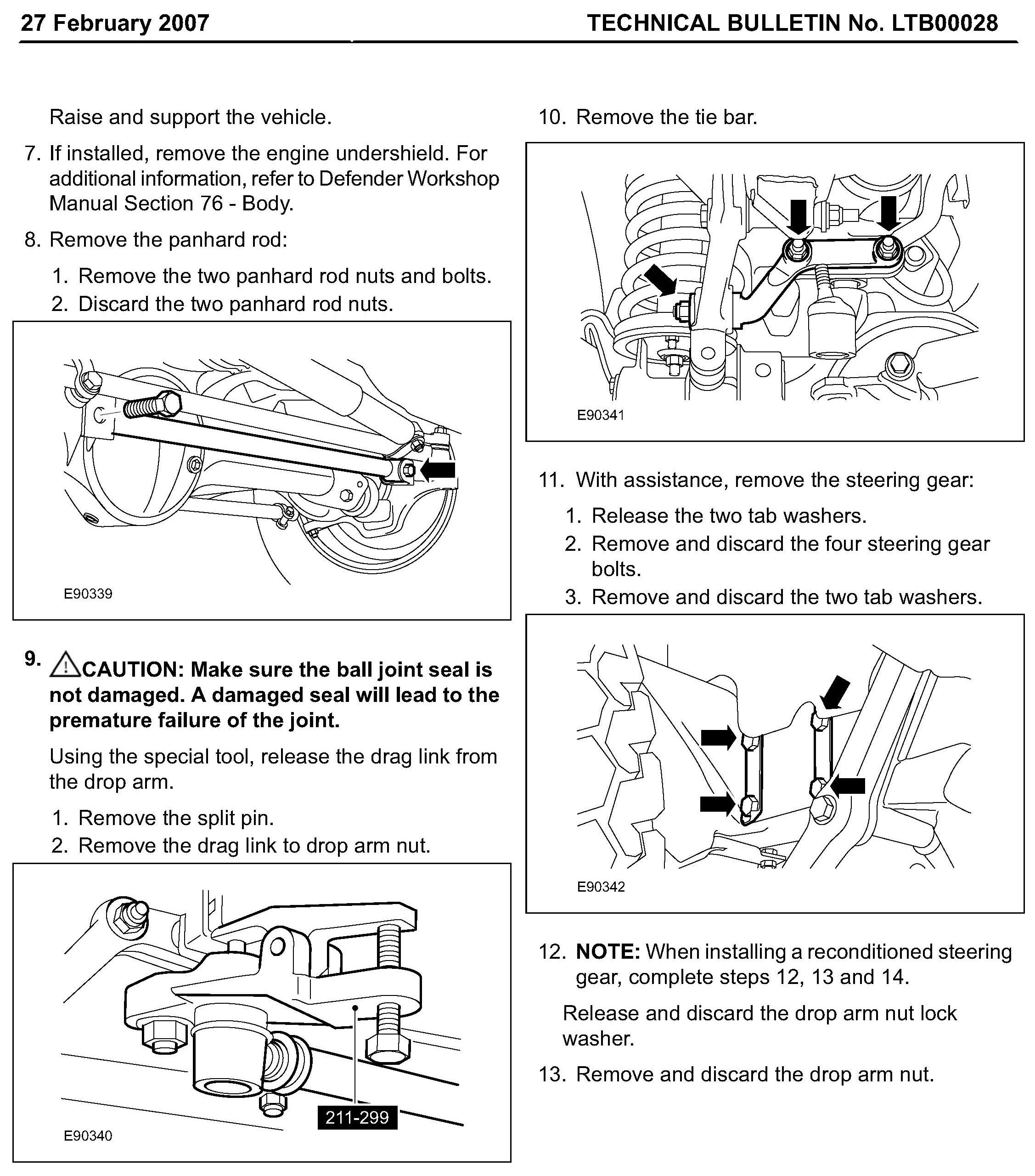

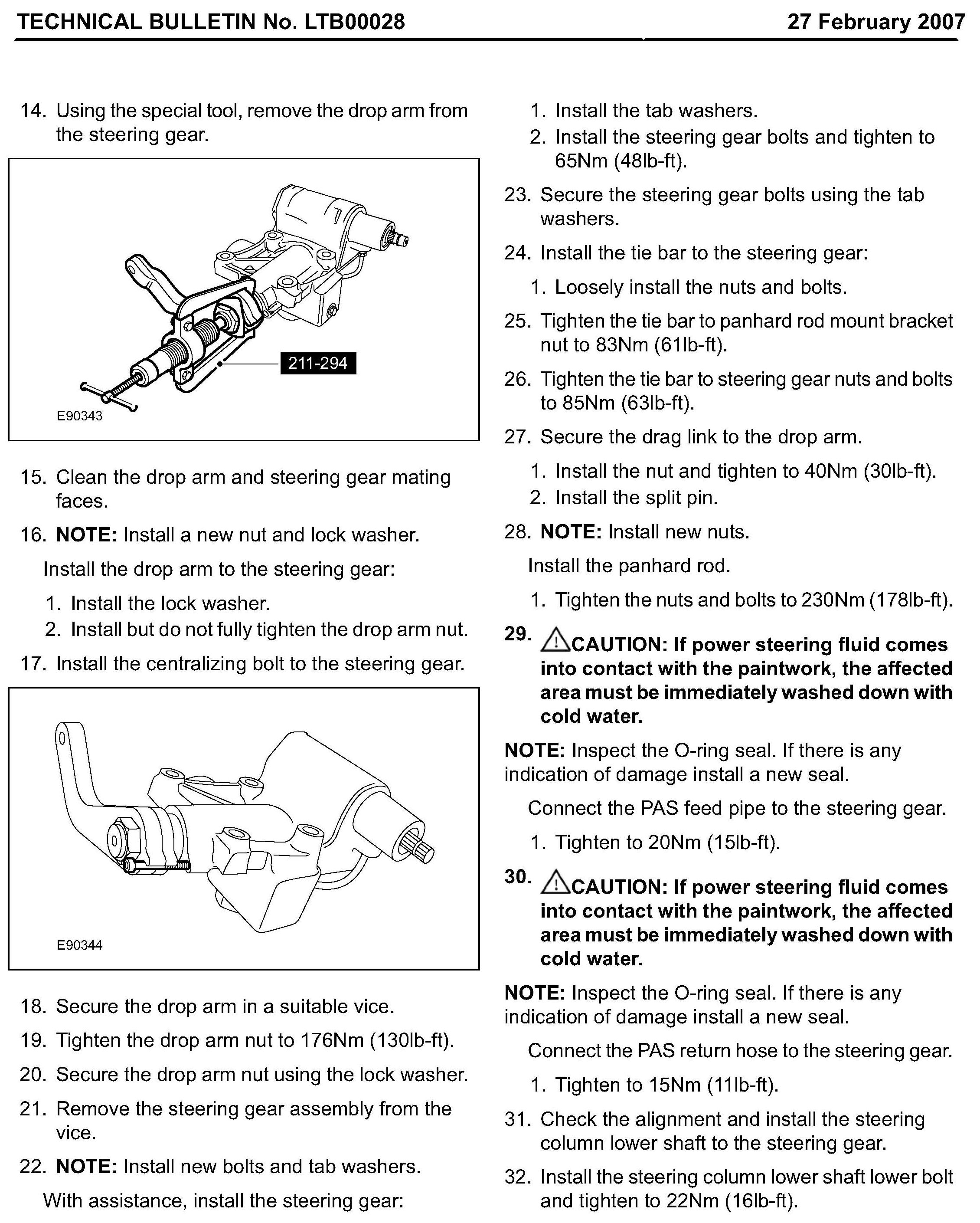

Should it become necessary to remove and install the steering gear assembly, refer to the Service Procedure detailed in this bulletin.

PARTS:

No parts required. Service information purposes only.





TOOLS:

WARRANTY:

NOTE:
Repair procedures are under constant review, and therefore times are subject to change; those quoted here must be taken as guidance only. Always refer to DDW to obtain the latest repair time.

NOTE:

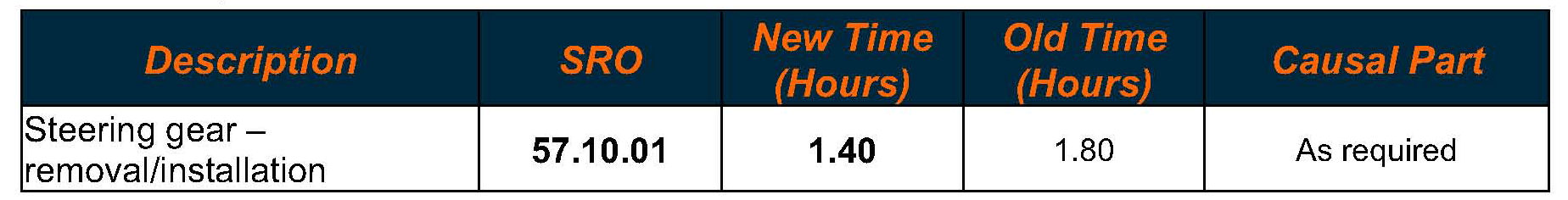

Superseded SRO 57.10.01 labor time is 1.80 hours. New labor time is 1.40 hours.





DDW requires the use of causal part numbers. Labor only claims must show the causal part number with a quantity of zero.

Normal warranty policy and procedures apply.
