Manual Transmission - Special Service Tools

Bulletin: TE93-003

Section: Tools & Equipment

Date: 9/7/93

Model: Defender 90/110

Applicable to: USA/CND

Subject:
1994 DEFENDER 90 - SPECIAL SERVICE TOOLS

The following special tools are required for reseal and/or internal repairs of the LT77S 5-speed transmission common to both the Defender 90 and 110. They are in addition to the tools previously supplied for the 1993 Defender 110.

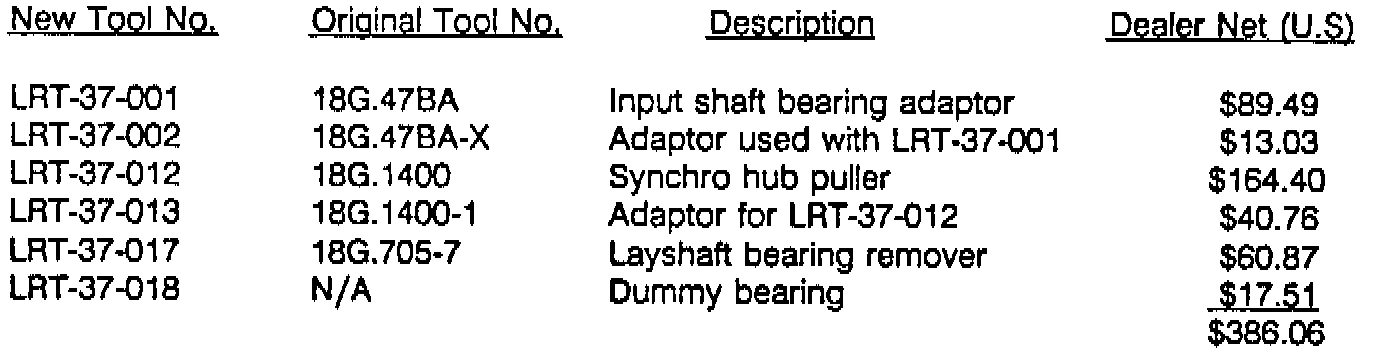

Each Dealer will receive and be charged for one (1) each of the following (see illustration):

The tools will be shipped directly from our Memphis Warehouse to your Parts Department.

We are in the process of developing new tool board overlay and tool ID decals for all Land Rover Special Tools. A service bulletin will be issued shortly to update you on the upcoming tool display changes. In the meantime, store these Defender Special Tools in a safe place.
