Front Seatback - Upholstery Damaged
2/09/9676/08/96/US
SUBJECT:
Front Seatback Upholstery Damage
MODEL:
Defender 90 - Soft Tops
AFFECTED VEHICLES:
LP
LH
LJ
LD 939342 Onwards
DETAIL
When front seats are reclined, the seat back may become damaged where it rubs against the inner cross tube. A rubber protector, which attaches at the contact point, is now available.
ACTION REQUIRED
To cover existing damage or to prevent further upholstery damage, install protectors as instructed below.
PARTS INFORMATION
LRNA6106 - Seat Protector kit (Qty. 1)
PROCEDURE
1. If present, remove the existing hard plastic protectors on the outboard side of each seat back and discard.

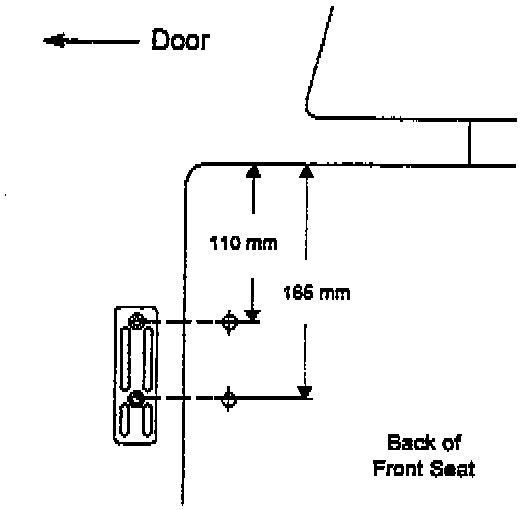

2. Locate the two screw holes in the outboard seatback frame (see illustration). Using the enclosed Screws, attach the protectors so the extension points downward.
WARRANTY:
Normal warranty policy and procedures apply.
COMP.CODE:
8H1B
SRO:
76.71.23/20 - Seat protector kit installation 0.25 hr
